RAM-B-189-326U - EZY-Mount Quick Release Mount - Twist-Lock Dual Suction Cup - Medium Arm

RAM-B-189-326U RAM® Twist-Lock™ Dual Suction Mount with Quick Release

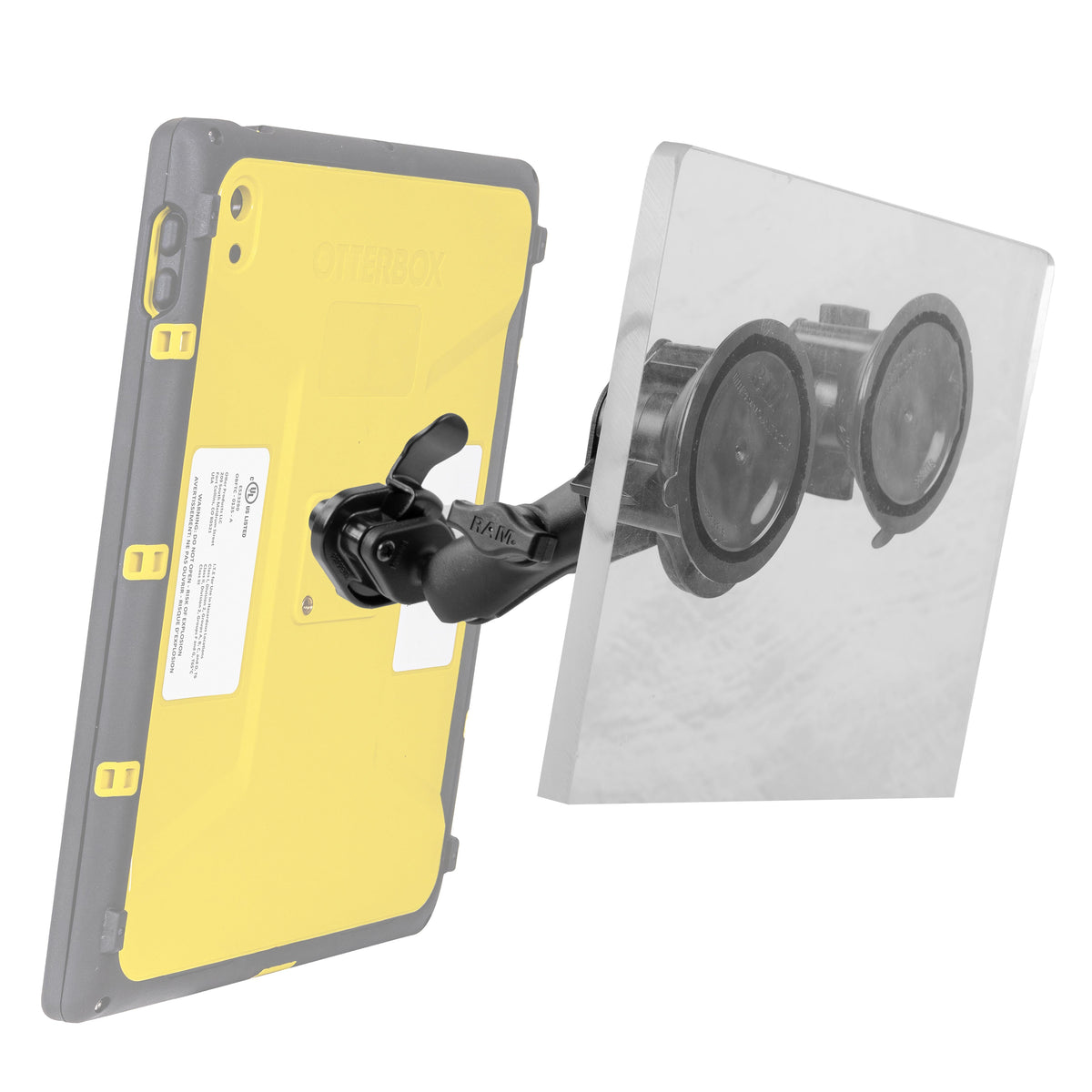

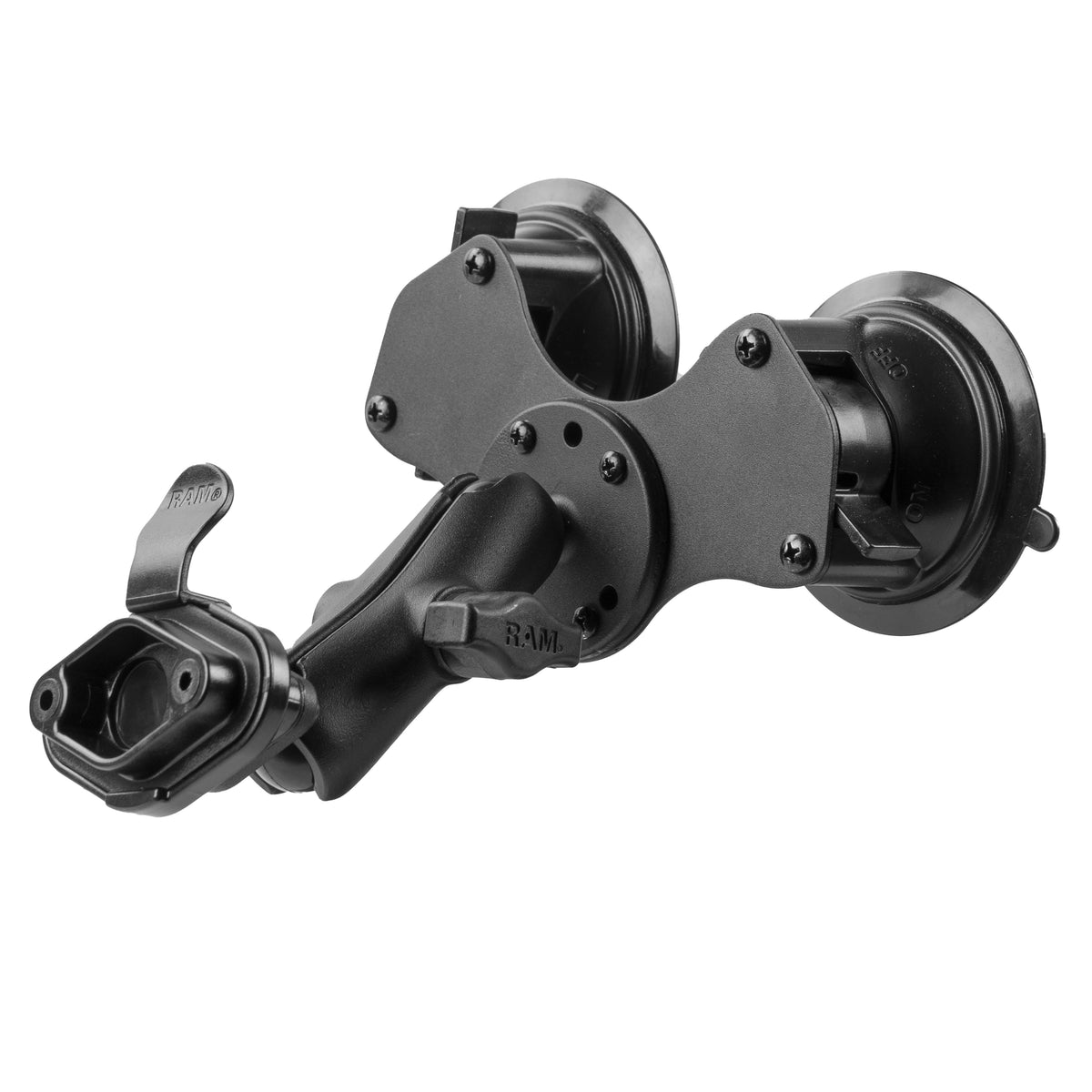

The RAM-B-189-326U uses two Twist-Lock™ suction cups for twice the hold of a single cup, with a medium double socket arm and RAM's EZY-Mount™ quick release. It suits glass windscreens and other smooth glass, and lets you lift the cradle off with a push of the release tab.

Key Features

• Dual Twist-Lock™ suction cups: two 83.8mm (3.3") cups on a metal plate, 201.9mm (7.95") wide overall
• Medium arm: B Size double socket arm with diamond plate, 76mm (3") socket to socket
• Quick release: push the release tab to lift the cradle off without adjusting the mount
• Fits standard cradles: RAM developed this kit with OtterBox for Hardline Series cases, but the adapters suit any cradle with the 2-hole AMPS pattern

What's Included

• RAM-B-189B-202U Twist-Lock™ dual suction cup base with ball
• RAM-B-103-238U medium double socket arm with diamond plate
• RAP-326U EZY-Mount™ quick release adapter kit

Works With

Any RAM® cradle with the 2-hole AMPS pattern. Running more than one device? Add a RAP-326FU female adapter to each extra cradle. Single cup version: the RAM-B-166-326U.

Dimensions & Specifications

• Suction cups: (2) 83.8mm (3.3") diameter, 201.9mm (7.95") total width
• Arm: 76mm (3") socket to socket
• Hole pattern: 2-hole AMPS, 48.6mm (1.912") centre to centre
• Ball size: B Size, 25.4mm (1")
• Weight capacity: 907g (2 lb) standard use, 454g (1 lb) heavy-duty use
• Materials: powder-coated steel, marine-grade aluminium, high-strength composite
• Weight: 576g (1.27 lb)
• Hardware: assembly hardware included

FAQs

Is the suction cup covered by the lifetime warranty?

No. RAM treats the rubber in suction cups as a general wear item, so it isn't covered by the lifetime warranty.
