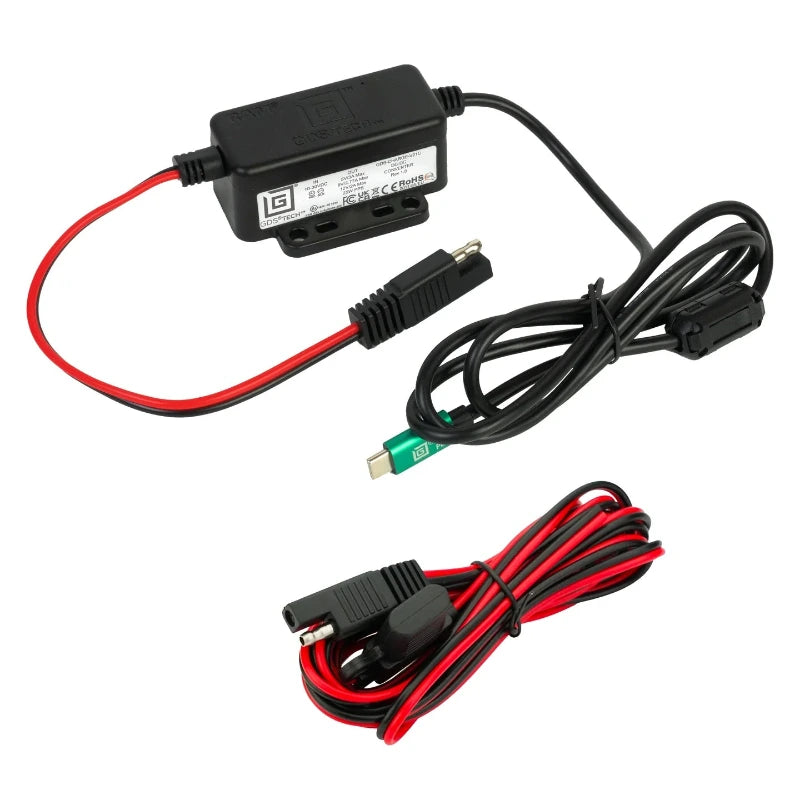

RAM GDS Modular Charger 10-30V with Male USB Type-C (25W Power Delivery)

RAM-GDS-CHARGE-V21CU GDS® 10-30V Power Delivery Hardwire Charger, Male USB Type-C (25W)

RAM-GDS-CHARGE-V21CU is a GDS® hardwire charger with a bare wire 10-30V DC input and a Male USB Type-C output delivering a fixed 12V DC at up to 2.5A, with Power Delivery support. It suits cars, utes, trucks, tractors and LPG forklifts running a 12V or 24V electrical system.

Key Features

• Fixed 12V DC output over USB Type-C: for docks and devices that need a steady 12V rather than a variable 5-15V supply.
• USB Power Delivery support at 25W.
• Bare wire input for direct connection to your vehicle's power source.
• Modular design: swap chargers without rewiring your vehicle.
• 3 year warranty.

Works With

Any GDS® USB Type-C vehicle solution that requires a 12V Power Delivery supply. For the same charger on a 30-60V electric forklift supply, see RAM-GDS-CHARGE-V22CU. For a variable 5-15V Power Delivery version at 45W on the same 10-30V input, see RAM-GDS-CHARGE-V3C-3U. For a non-Power-Delivery option, see RAM-GDS-CHARGE-V7CU.

Dimensions & Specifications

• Input voltage: 10-30V DC
• Output voltage: 12V DC (5-12V DC range)
• Output current: 2.5A max
• Power output: 25W
• Power Delivery: supported
• Input connector: bare wire
• Input cable length: 0.2m
• Output connector: USB Type-C male
• Output cable length: 1m
• Operating temperature: -20°C to +70°C
• Storage temperature: -40°C to +85°C
• Compliance: over voltage, over current and short circuit protection, SAE J-1113-5a load dump, RoHS, WEEE
• Certifications: FCC, CSA, CE, UKCA, RCM, e-Mark
• Weight: 204g (0.45lb)
• Warranty: 3 years

Documents

GDS Hardwire Charger Compatibility Guide (PDF): compares input voltage, output voltage and connector type across the GDS hardwire charger range, so you can confirm this one suits your dock and your vehicle.

FAQs

What makes this different from the other Power Delivery chargers? The V21CU and V22CU are the only USB Type-C chargers in the GDS range with a fixed 12V output. The other Power Delivery options supply a variable 5-15V.

Will it work on a 24V truck? Yes. The 10-30V DC input range covers both 12V and 24V vehicle systems on the same part number.

Which one do I need for an electric forklift? The V22CU, which has a 30-60V DC input range. This one tops out at 30V.
