RAM GDS Modular Charger 30-60V with Male USB Type-C (25W Power Delivery)

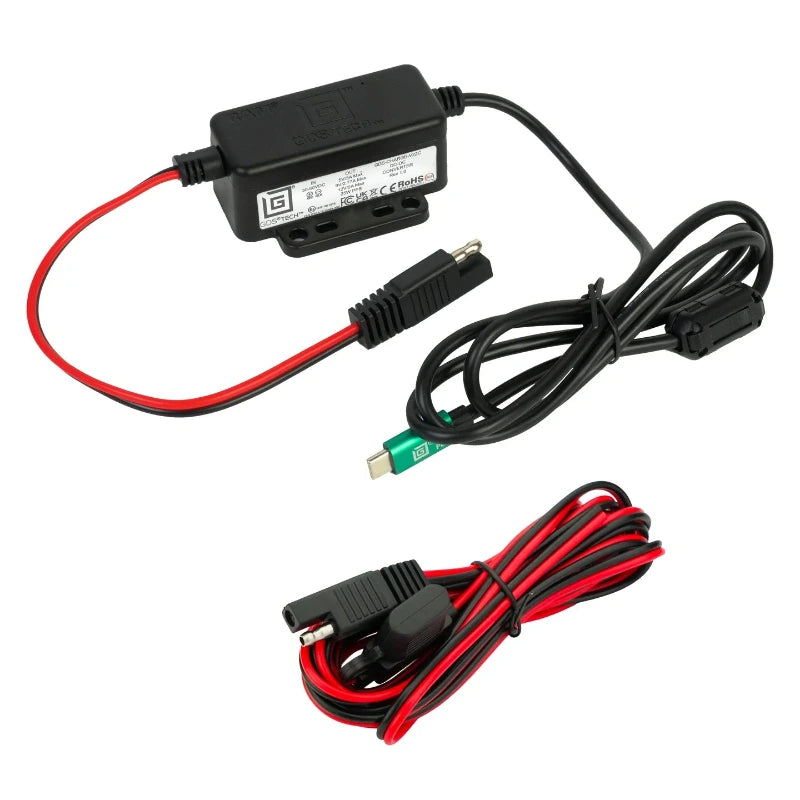

RAM-GDS-CHARGE-V22CU GDS® 30-60V Power Delivery Hardwire Charger, Male USB Type-C (25W)

RAM-GDS-CHARGE-V22CU is a GDS® hardwire charger with a bare wire 30-60V DC input and a Male USB Type-C output delivering a fixed 12V DC at up to 2.5A, with Power Delivery support. The high input range makes it the right choice for electric forklifts and material handling equipment running 36V or 48V battery packs.

Key Features

• Fixed 12V DC output over USB Type-C: for docks and devices that need a steady 12V rather than a variable 5-15V supply.
• 30-60V DC input range: suits electric forklift and material handling battery systems.
• USB Power Delivery support at 25W.
• Bare wire input for direct connection to your vehicle's power source.
• Modular design: swap chargers without rewiring your vehicle.
• 3 year warranty.

Works With

Any GDS® USB Type-C vehicle solution that requires a 12V Power Delivery supply on a high-voltage electric supply. For the same charger on a 10-30V fuel-powered vehicle supply, see RAM-GDS-CHARGE-V21CU. For a variable 5-15V Power Delivery version at 45W on a 30-64V input, see RAM-GDS-CHARGE-V3CH-2U. For a non-Power-Delivery option, see RAM-GDS-CHARGE-V8CU.

Dimensions & Specifications

• Input voltage: 30-60V DC
• Output voltage: 12V DC (5-12V DC range)
• Output current: 2.5A max
• Power output: 25W
• Power Delivery: supported
• Input connector: bare wire
• Input cable length: 0.2m
• Output connector: USB Type-C male
• Output cable length: 1m
• Operating temperature: -20°C to +70°C
• Storage temperature: -40°C to +85°C
• Compliance: over voltage, over current and short circuit protection, SAE J-1113-5a load dump, RoHS, WEEE
• Certifications: FCC, CSA, CE, UKCA, RCM, e-Mark
• Weight: 209g (0.46lb)
• Warranty: 3 years

Documents

GDS Hardwire Charger Compatibility Guide (PDF): compares input voltage, output voltage and connector type across the GDS hardwire charger range, so you can confirm this one suits your dock and your vehicle.

FAQs

What makes this different from the other Power Delivery chargers? The V21CU and V22CU are the only USB Type-C chargers in the GDS range with a fixed 12V output. The other Power Delivery options supply a variable 5-15V.

Will it work in a car or truck? No. The input range starts at 30V DC, so it is not suitable for a 12V or 24V vehicle. Use the V21CU instead.

Will it suit a 48V forklift? Yes. A 48V pack sitting above 58V while charging stays inside the 30-60V input range. Check your pack's actual charging voltage if you are close to the limit.
