RAM Marine Fishing Rod Holder - RAM Revolution ratchet adjustable arm

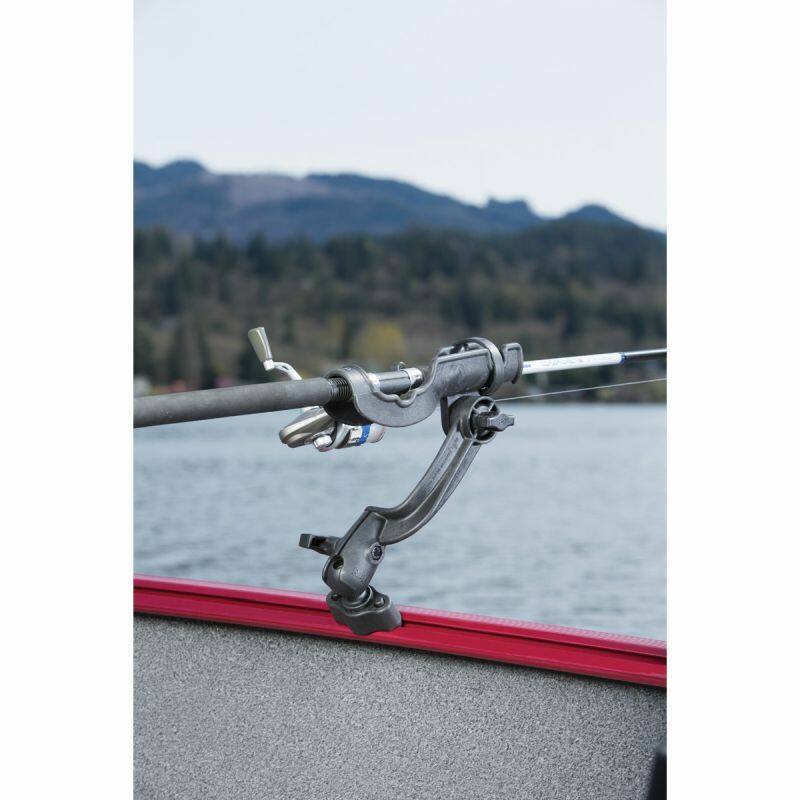

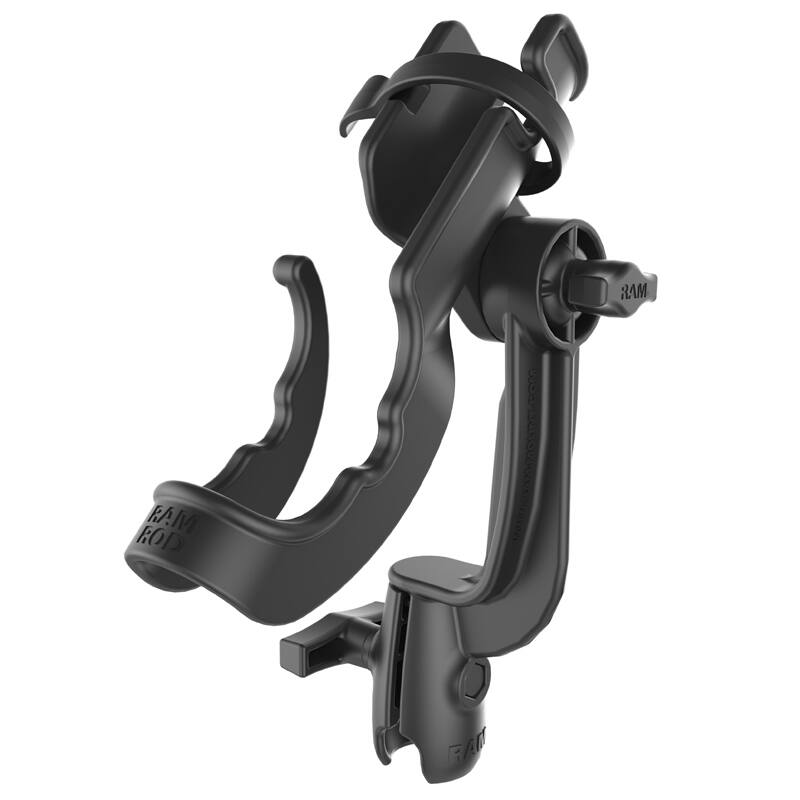

RAM-114-RBNBU - RAM ROD® 2000 Fishing Rod Holder with Revolution Ratchet Arm (No Base)

The RAM-114-RBNBU is a RAM ROD® 2000 rod holder joined to a Revolution ratchet arm with a single open socket, supplied without a base so it fits any C size 1.5" RAM® ball you choose. The ratchet swings the holder through a full 360 degrees and tilts it forward and back, so you set the rod angle you want rather than the one the mount gives you.

Key Features

\n
• Revolution ratchet arm: 360 degree rotation plus forward and back tilt for precise rod angle
\n
• Single open socket: fits any C size 1.5" RAM® ball, including track balls and drill-down bases
• No base supplied: pair it with a base you choose, or a C size ball you already have fitted
• High-strength composite construction, suited to salt water use
• Rated to 1.81kg (4 lb) standard use, 1.36kg (3 lb) heavy-duty use

Works With

Any C size (1.5") RAM® ball base. Options we stock include the RAM-202U 63mm round AMPS base for a flat drill-down fit, the RAP-354-162U marine wedge base for 38 to 47mm rod ports, and the RAM Tough-Track alloy rail used with a C size track ball.

If you would rather buy it complete, the RAM-114-RBU is the same holder and ratchet arm supplied with the 63mm AMPS round base. For a post-mounted version, see the RAP-114-AP-RBU Adapt-A-Post ratchet arm.

Dimensions & Specifications

\n
• Ball and socket size: C size, 1.5" (38.1mm)
• Weight capacity: 1.81kg (4 lb) standard use; 1.36kg (3 lb) heavy-duty use
• Weight: 567g (1.25 lb)
• Material: high-strength composite
• Base: not included
• Packaging: poly bag

FAQs

Does this come with a base?

No, and that is what the NB in the part number refers to. You will need a C size 1.5" RAM® ball base, either one already fitted to your boat or kayak or one of the options above.

Will it fit a kayak track system?

Yes, as long as you use a C size 1.5" track ball in the track. The socket only cares about the ball size, not what the ball is attached to.

How much rod and reel can it carry?

RAM® rate it at 1.81kg (4 lb) for standard use and 1.36kg (3 lb) for heavy-duty use, which covers most rod and reel combinations.
