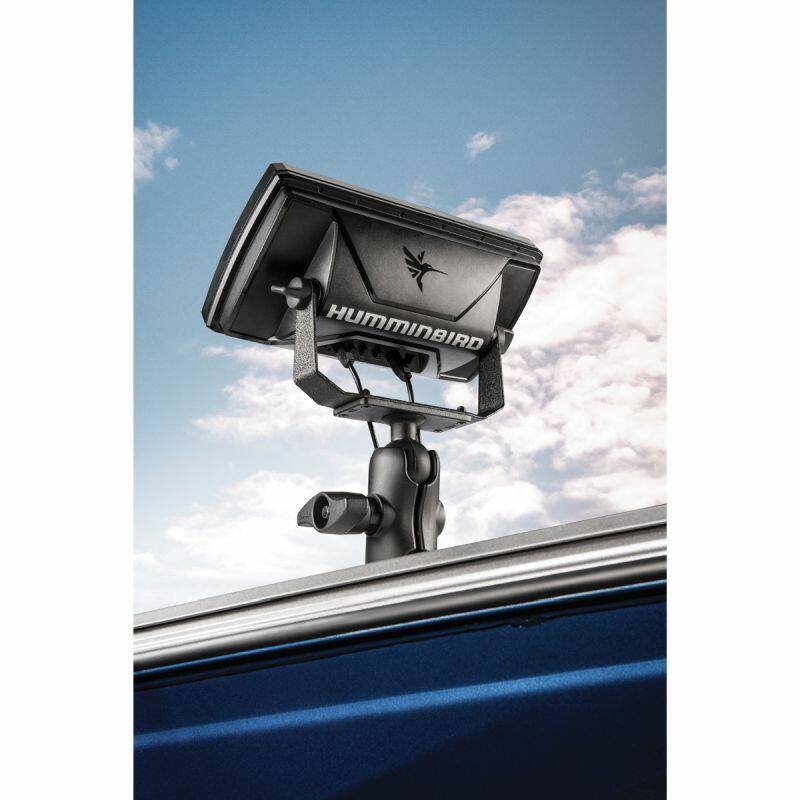

RAM-D-202-25-C-202U RAM® Drill-Down Ball Mount for Humminbird Helix 8-10 & XPLORE Series
Features

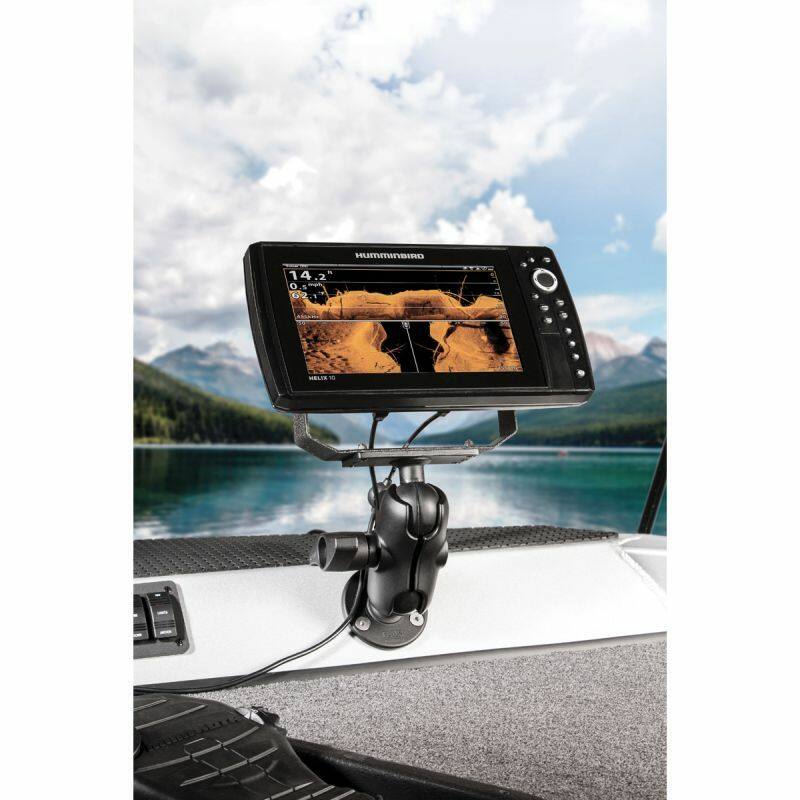

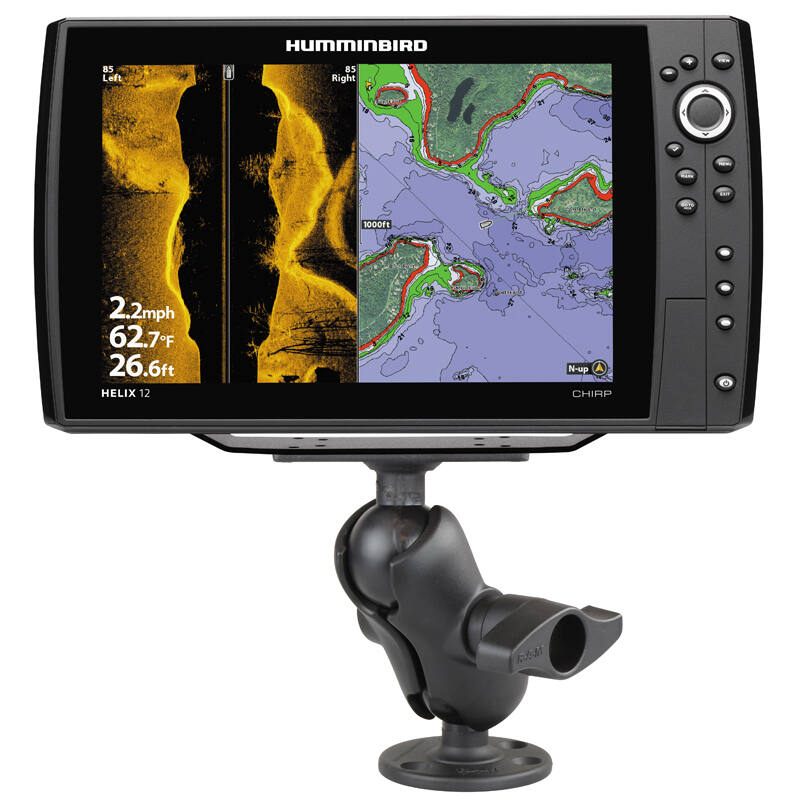

* Complete flat surface, drill-down mounting solution for the Humminbird XPLORE Series, and Helix 8, 9, & 10; RAM® Mounts ball and socket technology allows for near-infinite adjustability
* Includes 3.68" round base with D size 2.25" rubber ball, short length D size double socket arm, and a 1.5" x 4.5" rectangle base with D size 2.25" rubber ball that connects to your Humminbird Helix marine electronic
* Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
* Backed by a lifetime warranty
Ball size is the RAM D Series 2.25" making this mount suitable for heavy use.

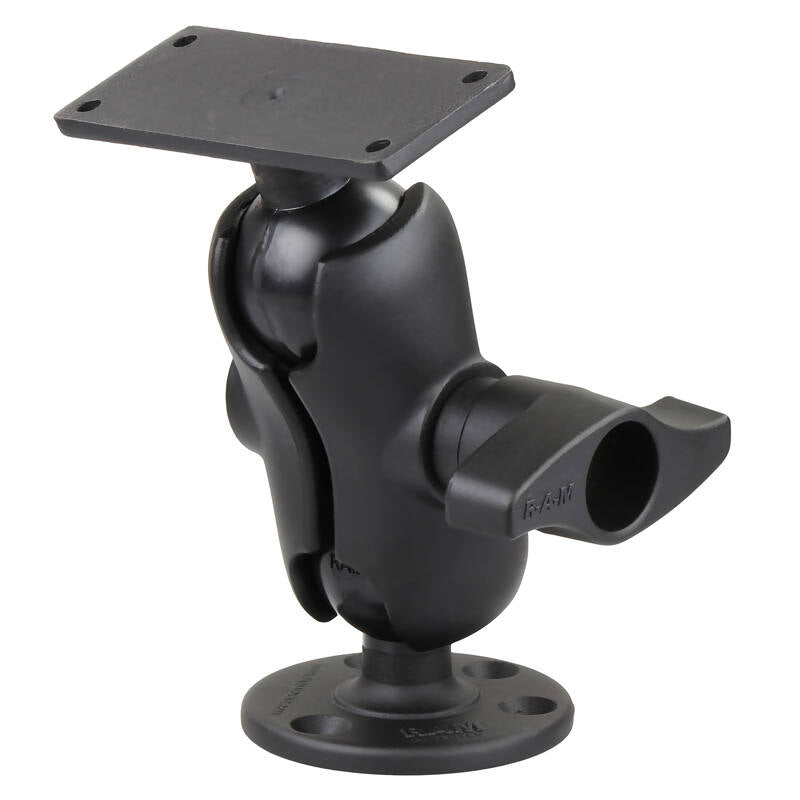

The RAM-D-202-25-C-202, powder coated marine grade aluminium mount, consists of a double socket arm, one round 93.5mm (3.68") diameter round base and one 50.8mm x 127mm (2" x 5") rectangular plate. The round plate contains two mounting holes at 180-degrees and three mounting holes at 120-degrees. The rectangular plate contains a 4-hole pattern of 38.1 x 114.3mm (1.5" x 4.5"). The patented rubber ball and socket technology dampens shock and vibration, and allows for nearly infinite adjust ability, So you can set your device at the perfect viewing angle, while suited for any rugged environment.
Compatible Devices
Humminbird
Helix 8
Helix 9
Helix 10
Helix 12
Solix 10
Solix 12
Solix 15
Xplore Series
Specs & Features
Hole Pattern:
1.5" x 4.5"
Overall Length:
200mm (7.875")
Weight Capacity:
Up to 6.80 kg (15 lbs. )
Component Weight:
1.36 kg (3.0 lbs.)
Components:

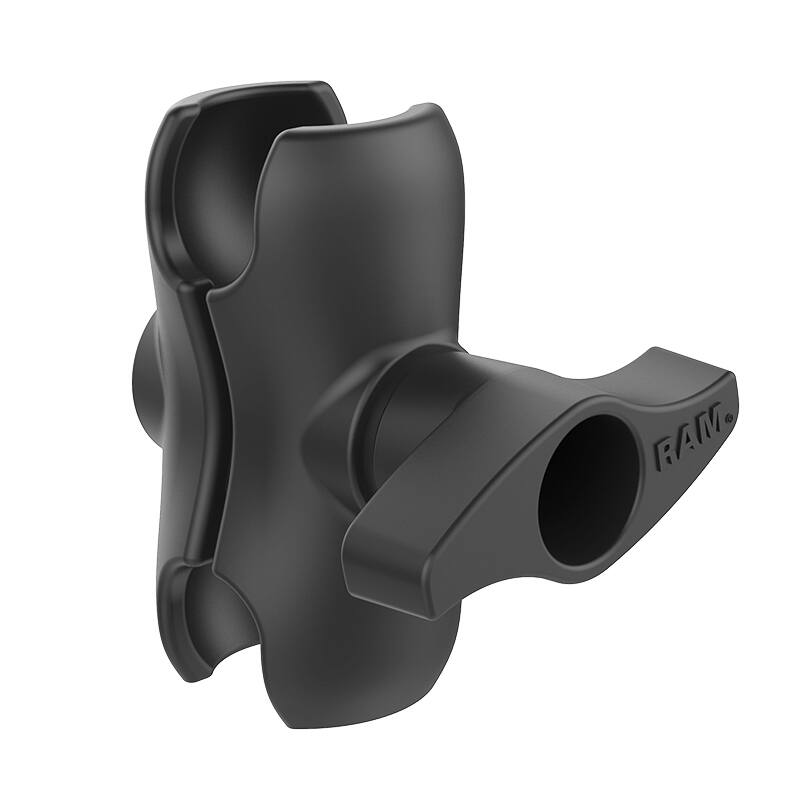

RAM-D-201U-C - short RAM double socket arm "D' size

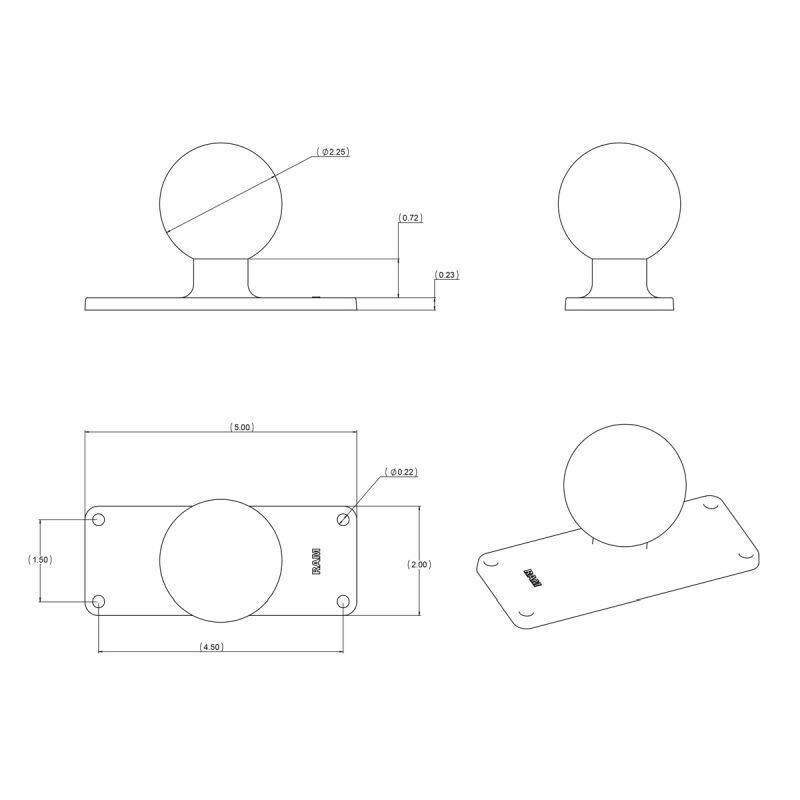

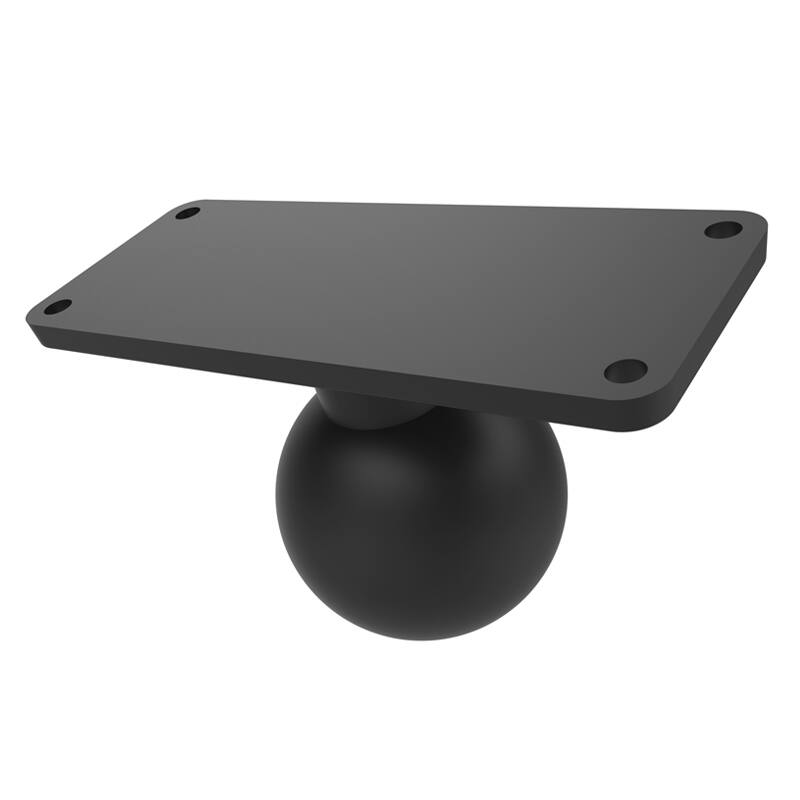

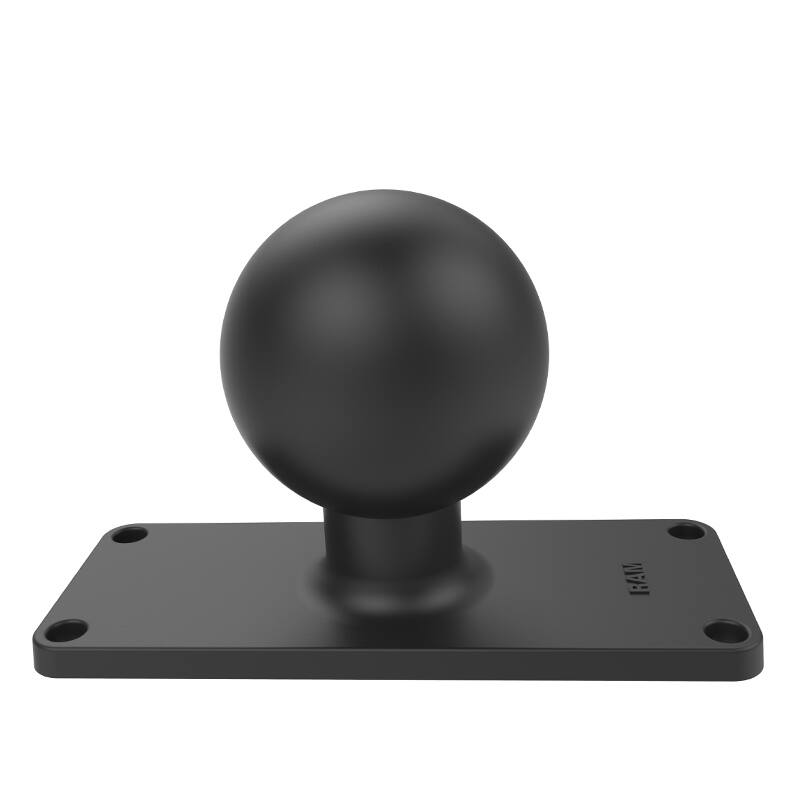

RAM-D-202U-25 - Rectangular base plate "D" size

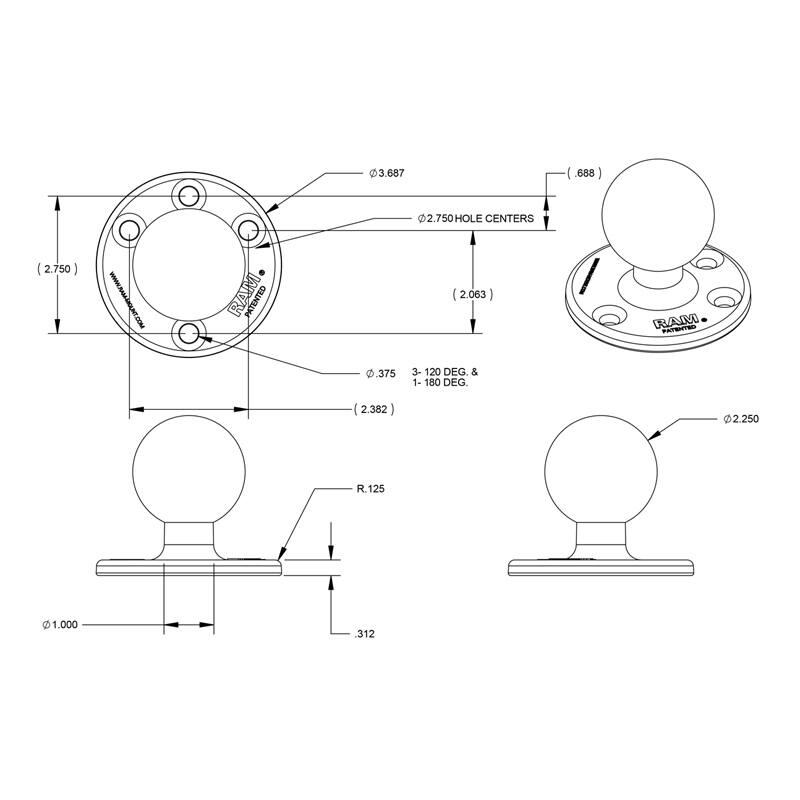

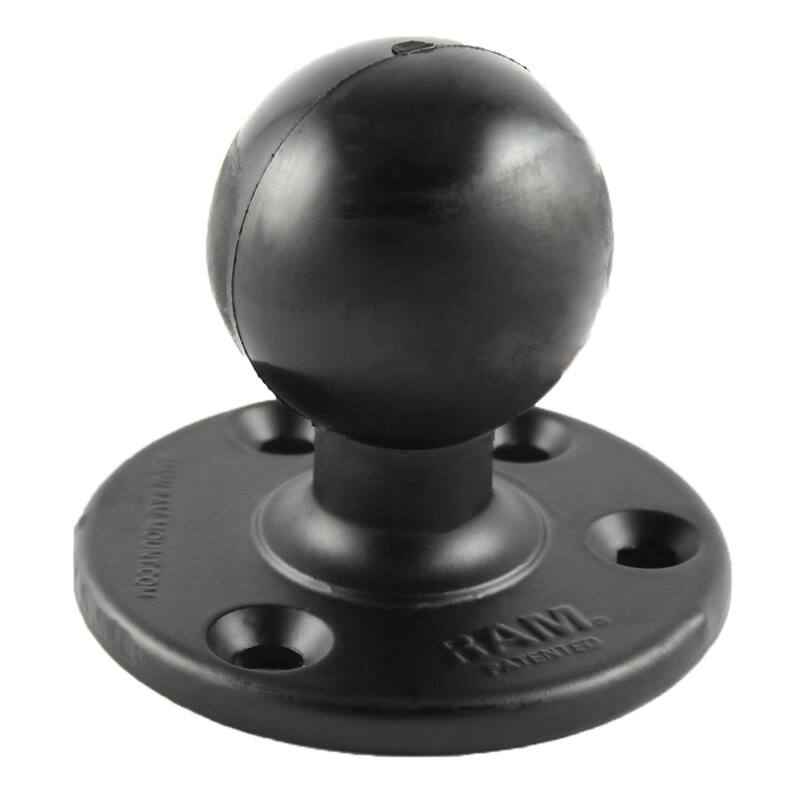

RAM-D-202U - Round base "D" size
