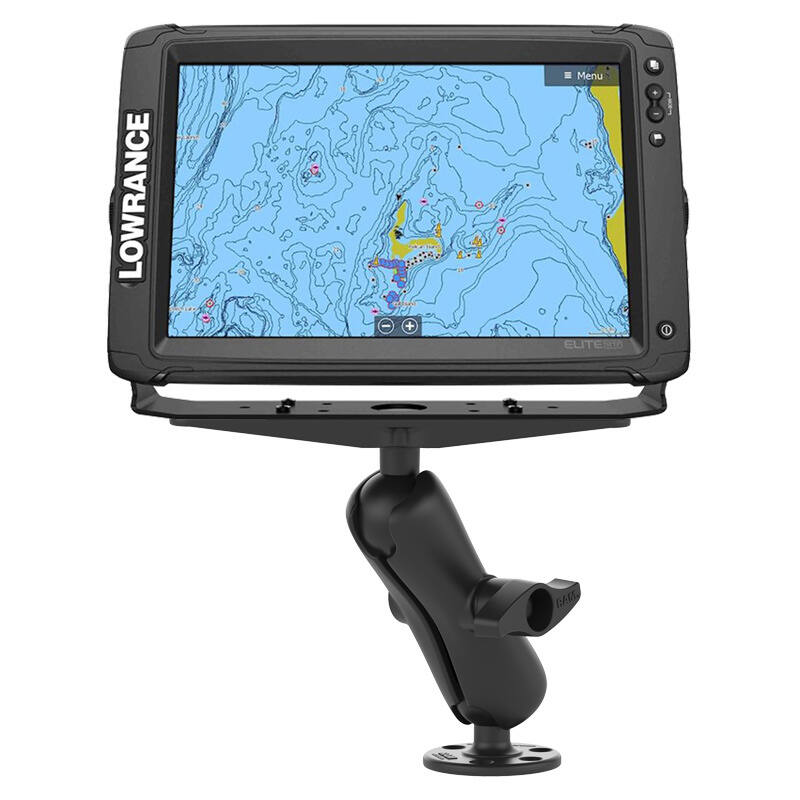

RAM-D-111U RAM® Large Marine Electronics Mount
FEATURES
* Complete flat surface, drill-down mounting solution for large marine electronics with an overall height of 292mm
* RAM® Mounts ball and socket technology allows for near-infinite adjust-ability
* Made of Powder-coated, marine-grade aluminium for durability and reliability in the most demanding marine environments
* Backed by a lifetime warranty

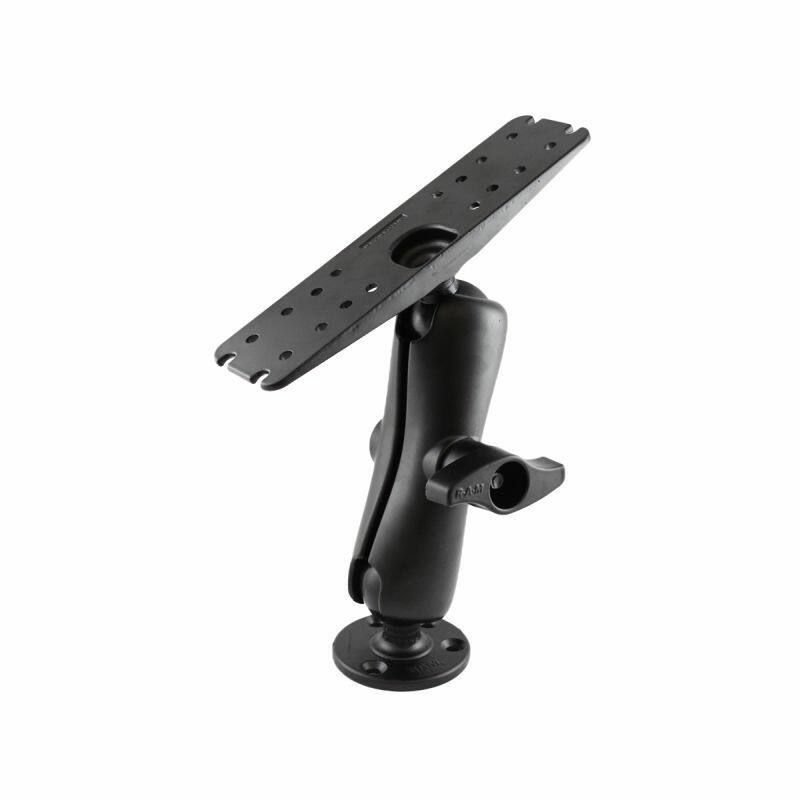

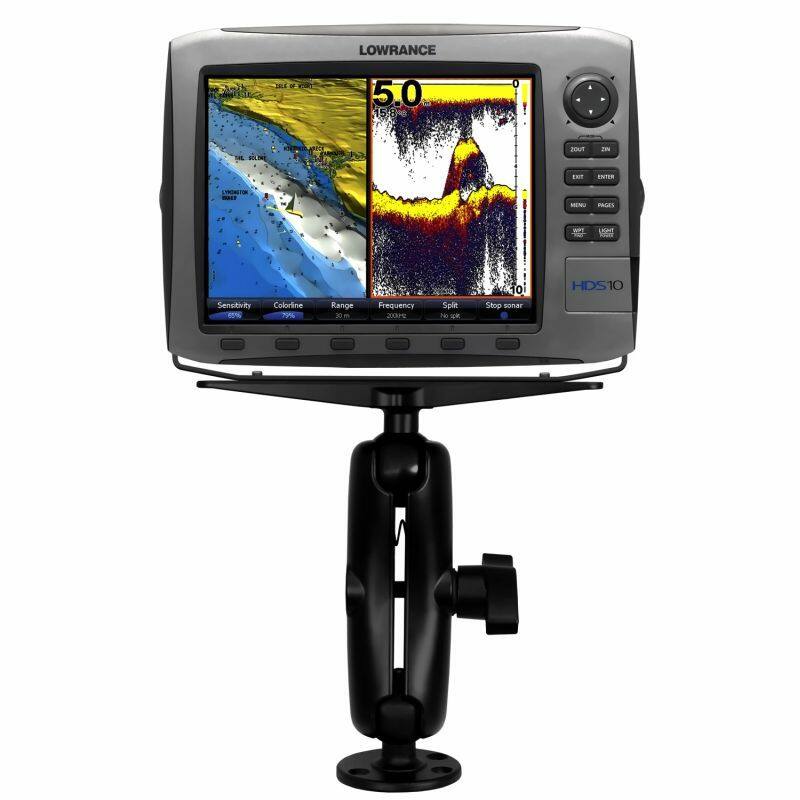

The RAM-D-111U consists of a medium double socket arm, 3.68" diameter round base, and 279.4 mm x 76.2mm rectangle base. The round base includes a 2.25" D size rubber ball and contains pre-drilled holes, including the universal AMPS hole pattern. The rectangle base also includes a 2.25" D size rubber ball and contains a variety of pre-drilled holes that are compatible with several large marine electronic devices, including fish-finders and chart-plotters.
Compatible Devices
Garmin
ECHOMAP Ultra 122sv
ECHOMAP Ultra 126sv
GPSMAP 1222/xsv Touch
GPSMAP 1242xsv/Touch
Fishfinders and GPS Chartplotters
Lowrance
HDS Carbon 9
HDS Carbon 12
Elite-9 CHIRP
Elite-9 Ti
Elite-9 Ti²
Elite-12 Ti
Elite-12 Ti²
Fishfinders and GPS Chartplotters
Humminbird
Fishfinders and GPS Chartplotters
Raymarine
Fishfinders and GPS Chartplotters
Arm dimensions:
Overall:
292mm (11.5")

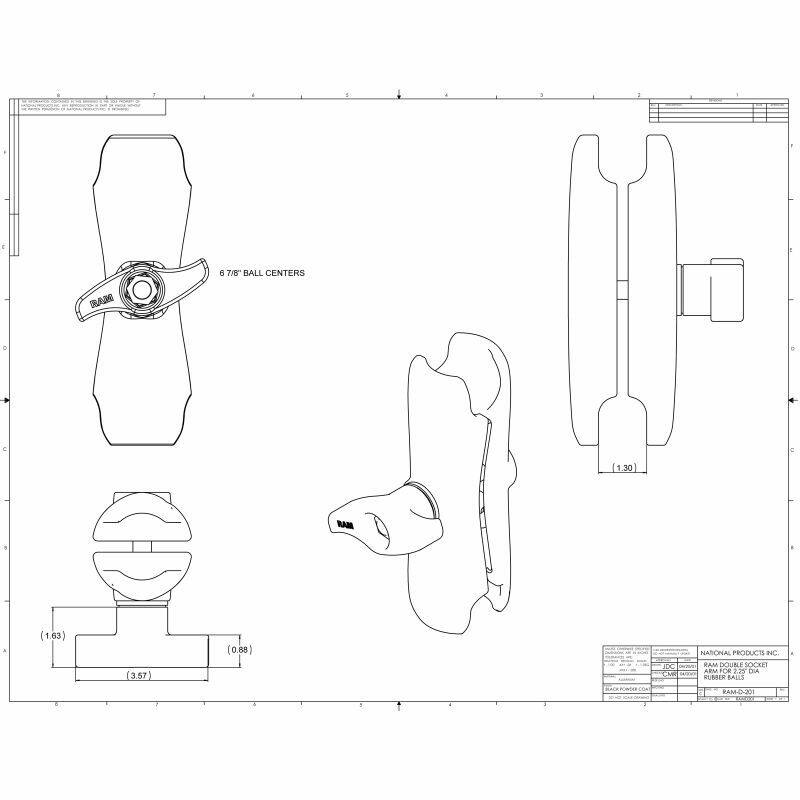

SOCKET-TO-SOCKET:
175mm (6.88")
Round Plate Size
93.5mm (3.68")

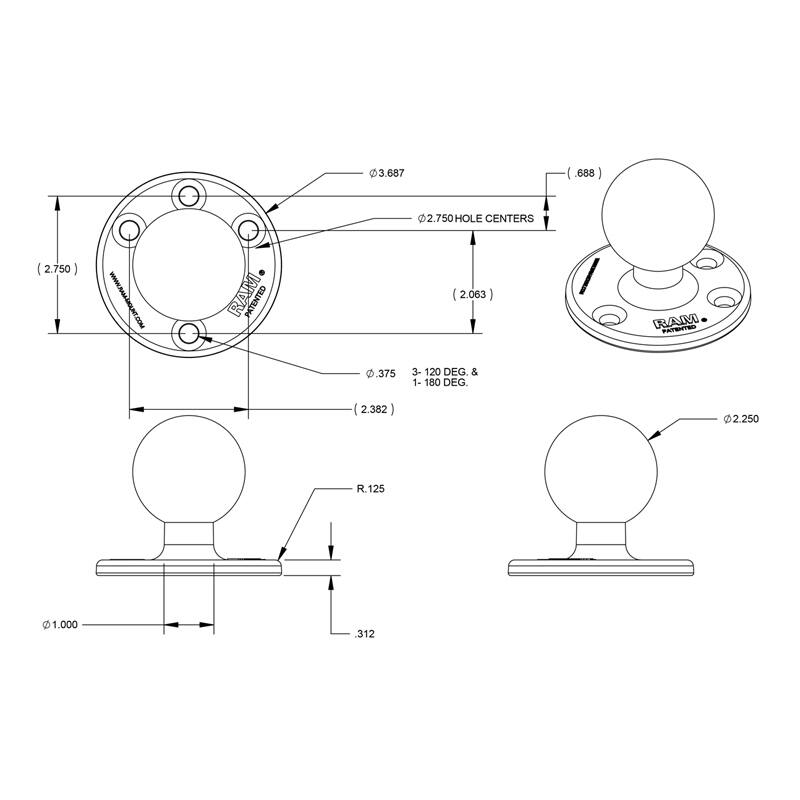

Round plate Hole Pattern (see drawing)
2 hole - 180 degrees
3 holes - 120 degrees.
Material:
Powder Coated Marine Grade Aluminium
Ball Size:
D Size 2.25" Rubber Ball
Weight Capacity:
Standard Use:
2.72kg (6 lbs)
Heavy-Duty Use:
2.26kg (5 lbs)

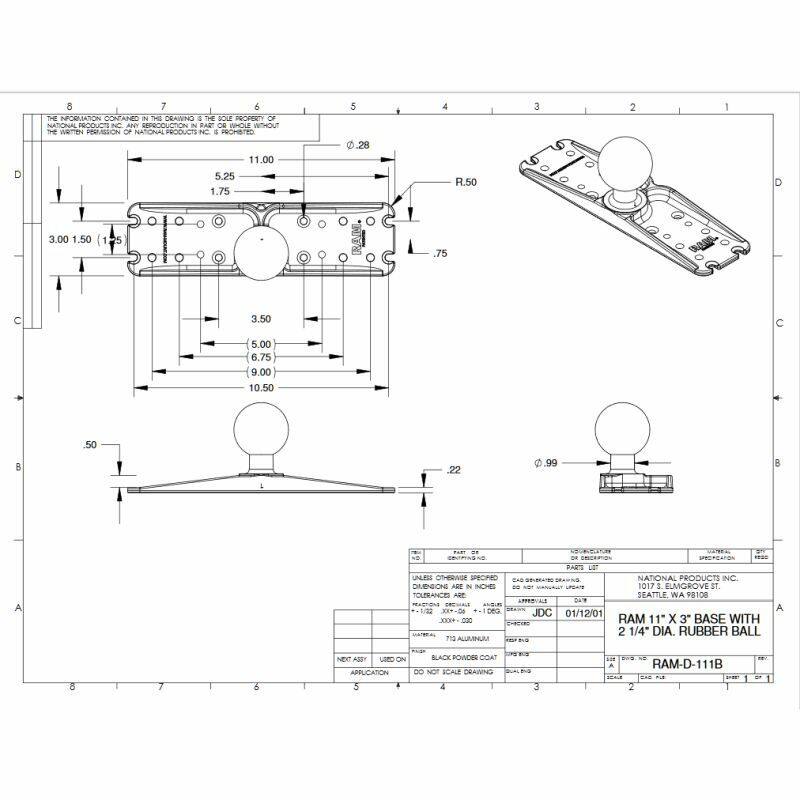

Note: The 279.4 mm x 76.2mm (11" x 3") rectangular base is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
Weight:
2.027kg (4.47 lbs.)
Components:
RAM-D-111BU 76mm x 279mm Rectangle Plate

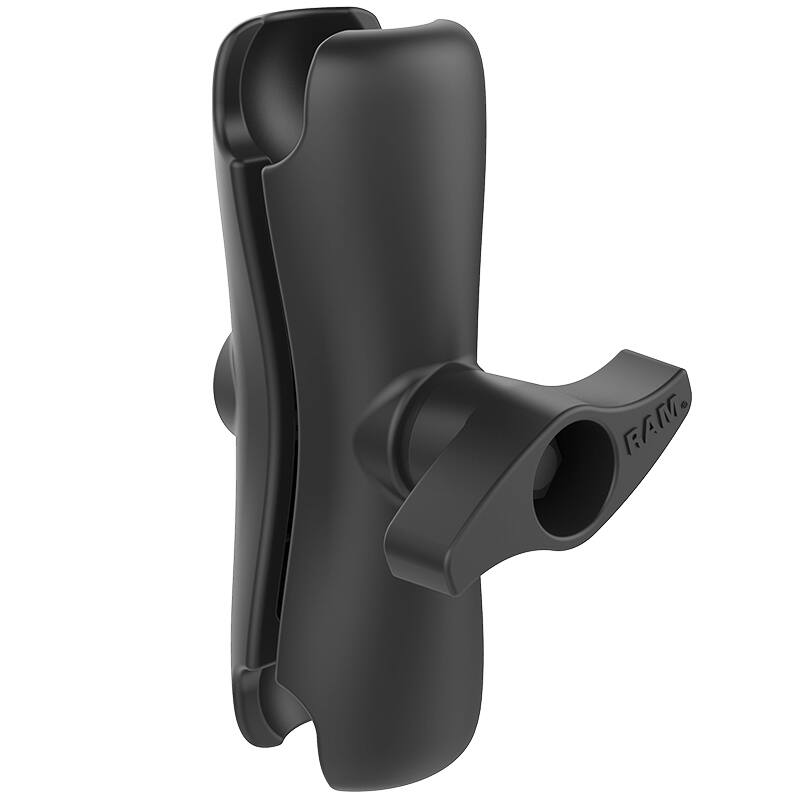

RAM-D-201U Medium Length Double Socket Arm

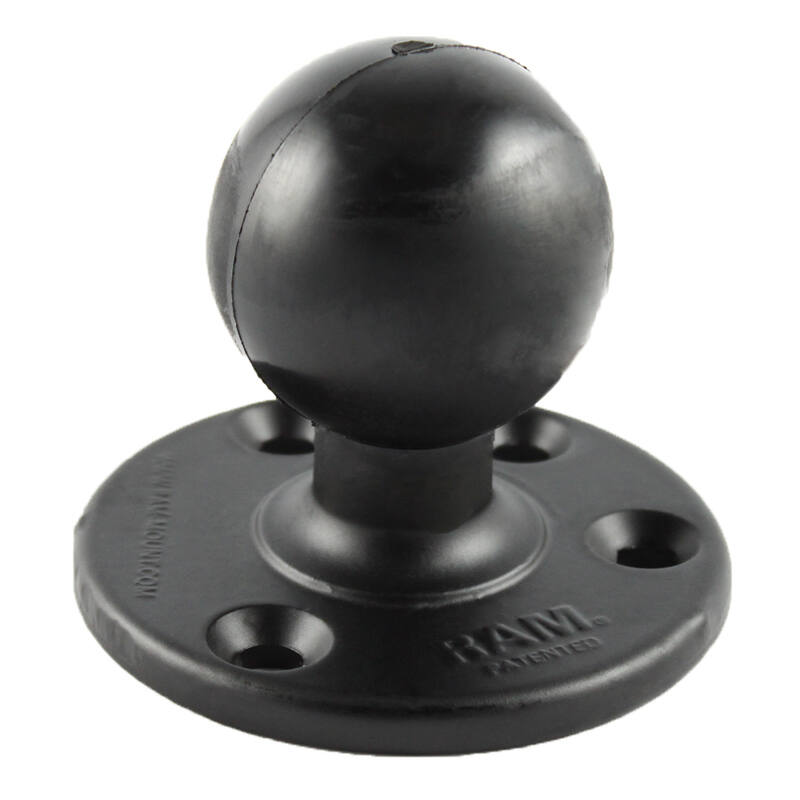

RAM-D-202U 93.5mm Diameter Round Plate
