RAM Mounts

RAM Marine Universal Electronic Device Mounting System - Large - Short Arm

RAM Marine Universal Electronic Device Mounting System - Large - Short Arm


Regular price $329.32 NZD
Regular price Sale price $329.32 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

RAM-D-111U-C RAM® Large Marine Electronics Mount


* Complete flat surface, drill-down mounting solution for large marine electronics with an overall height of 8.125"
* RAM® Mounts ball and socket technology allows for near-infinite adjustability
* Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
* Backed by a lifetime warranty

This consists of a SHORT double socket arm, round base and rectangular base.

The rectangular base contains different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more. It is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.

Compatible Devices Include:

ECHOMAP Ultra 122sv
ECHOMAP Ultra 126sv
GPSMAP 1222/xsv Touch
GPSMAP 1242xsv/Touch
Fishfinders and GPS Chartplotters

HDS Carbon 9
HDS Carbon 12
Elite-9 CHIRP
Elite-9 Ti, 9 Ti²
Elite-12 Ti, 12 Ti²
Fishfinders and GPS Chartplotters

Fishfinders and GPS Chartplotters

Fishfinders and GPS Chartplotters

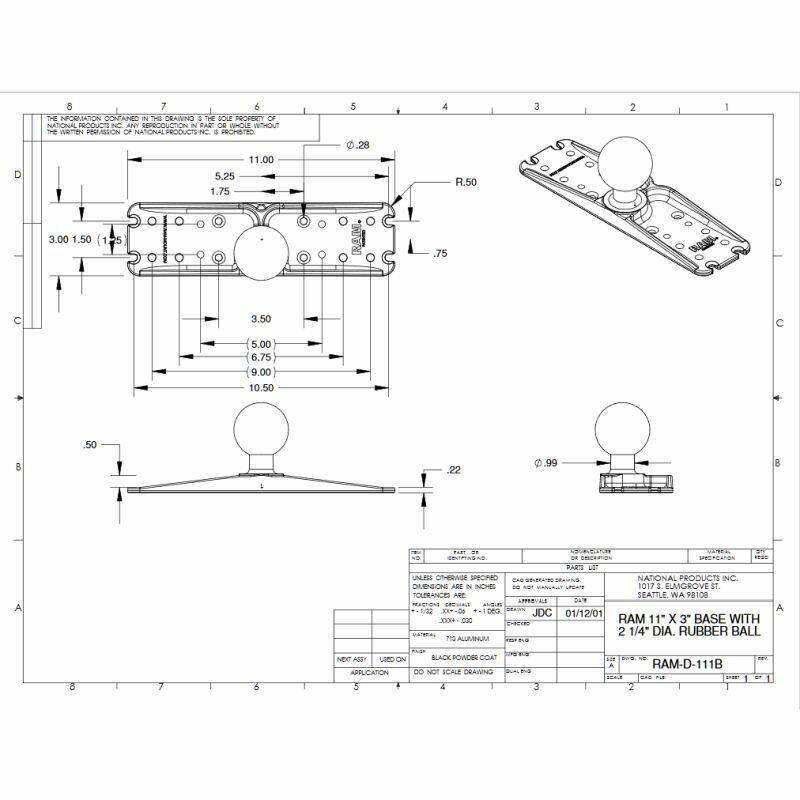

Rectangular Base Hole Pattern
See Drawings

Rectangular Base Dimensions
279.4 mm x 76.2mm (11" x 3")

Round Base Diameter
93.5mm (3.68")

Round Base Hole Patterns
2 holes 180 degrees
3 holes at 120 degrees.

Arm Dimensions:
Overall: 128.6mm (5.0625")
Socket-To-Socket: 87.0mm (3.1875")

Powder Coated Marine Grade Aluminium

Ball Size:
D Size 2.25" Rubber Ball

Weight Capacity
Standard Use:
2.72kg (6 lbs)
Heavy-Duty Use:
2.26kg (5 lbs)

1.62kg (3.58 lbs.)

RAM-D-111BU Rectangle Plate
RAM-D-201U-C Short Double Socket Arm
RAM-D-202U Round Plate
