RAM Motorcycle Brake/Clutch Reservoir Base - B Series (1" Ball) - Offset

RAM-B-346U Offset Reservoir Cover Ball Base

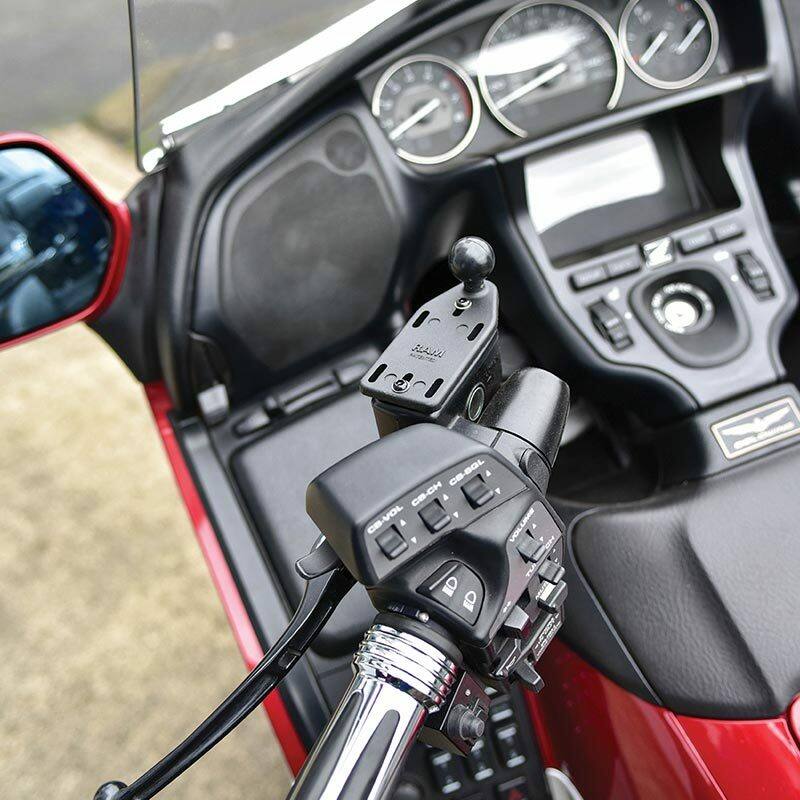

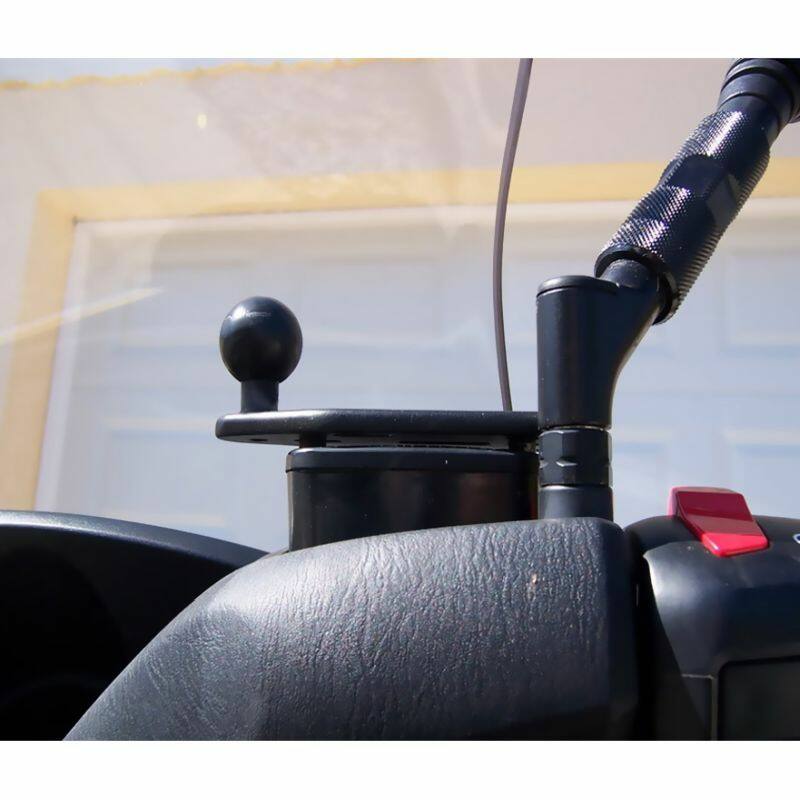

The RAM-B-346U mounts over your motorcycle's existing brake or clutch reservoir cover, adding an offset 1" B-Size rubber ball for a RAM® mounting point without replacing the cover itself.

Key Features

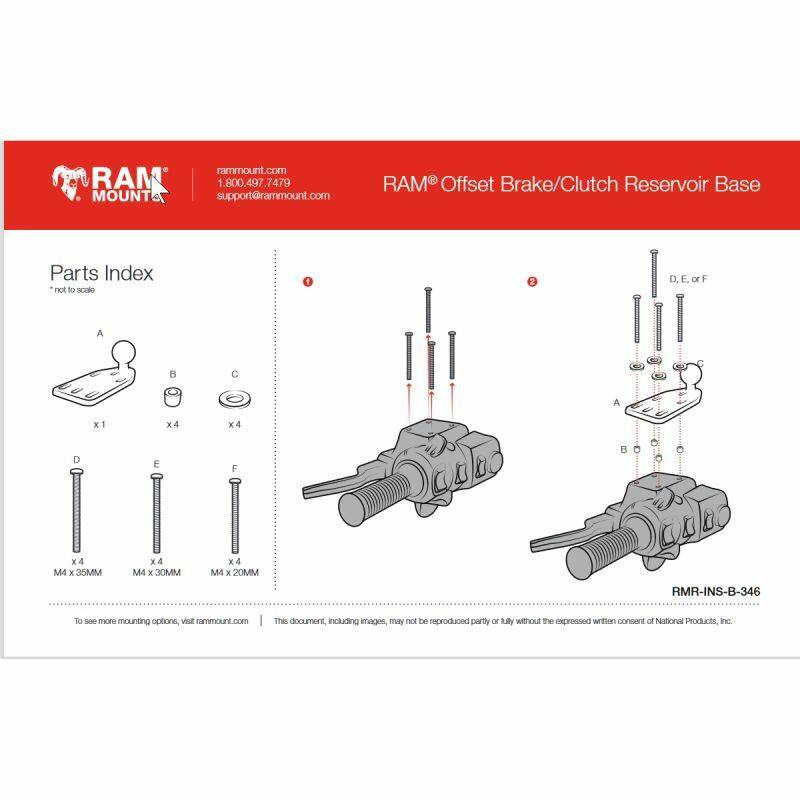

• Fits over the existing reservoir cover using the cover's own screw holes and longer screws
• Includes three sets of M4 screws (20mm, 30mm, 35mm) to suit different covers

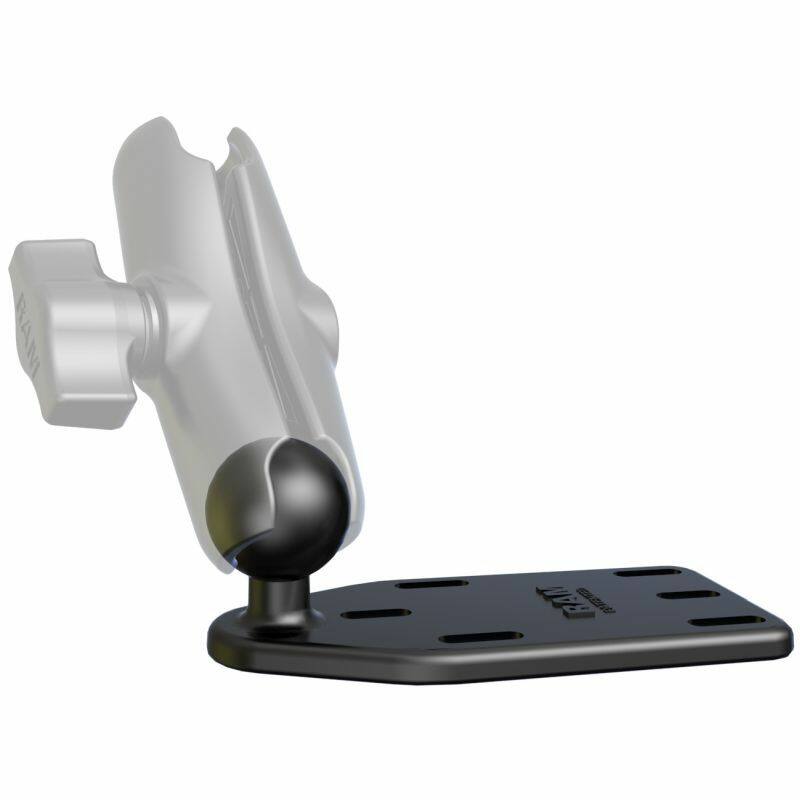

• Included 1" B-Size rubber ball connects to any B-Size RAM® double socket arm
• Powder-coated marine-grade aluminium construction
• Lifetime warranty

Works With

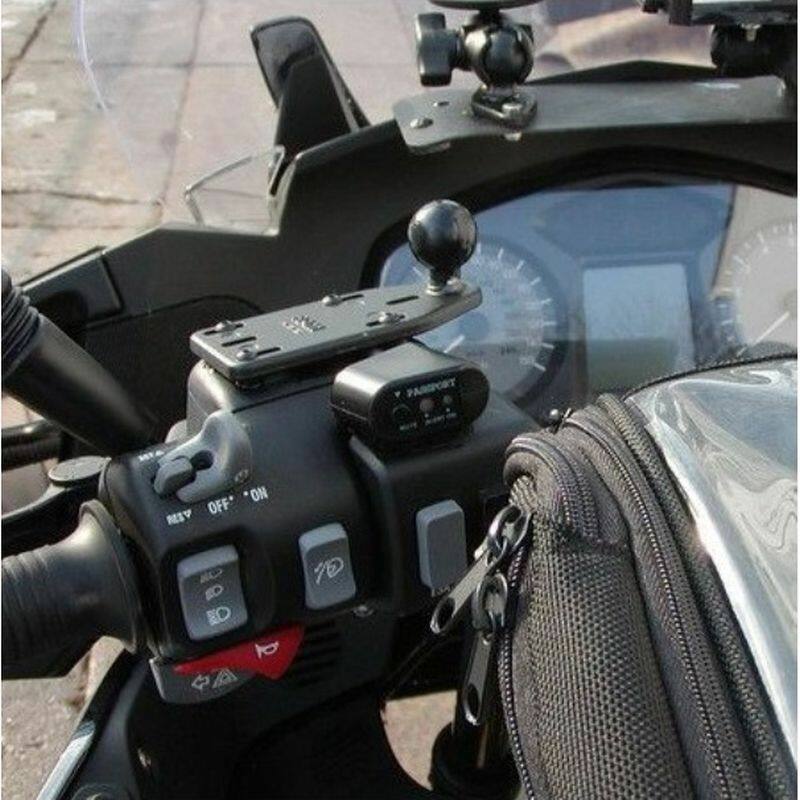

Compatible with many road bikes from BMW (excluding 2016 R1200RT), Honda, Suzuki, Yamaha, Kawasaki and Buell. The reservoir cap needs to be flat for a secure fit — some models (e.g. certain Gold Wings) have a rounded cap that won't seat correctly.

Dimensions & Specifications

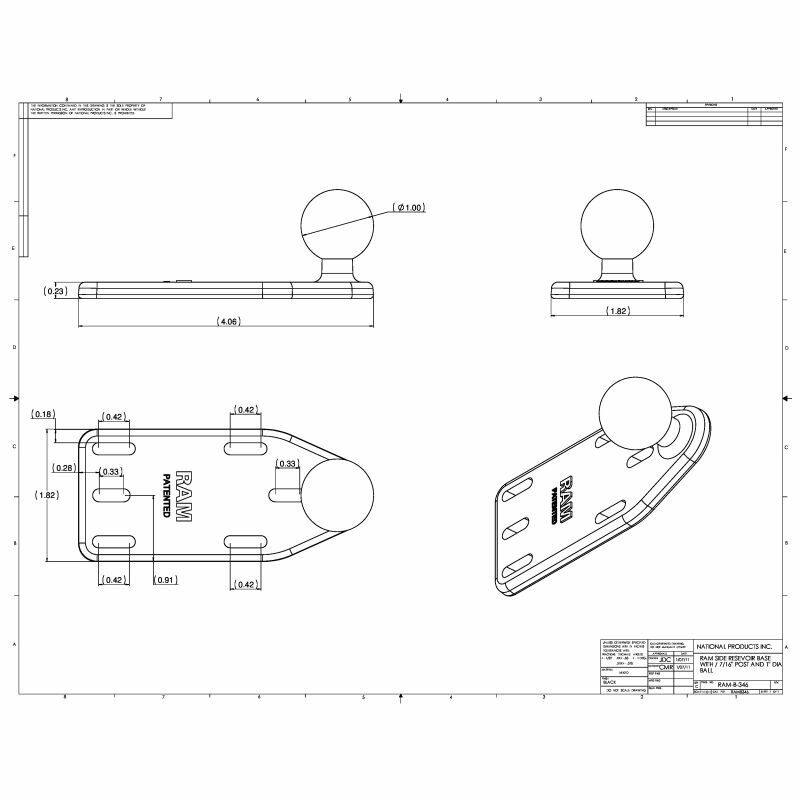

• Plate dimensions: 103.1mm x 46.2mm (4.06" x 1.82")
• Centre slot spacing: 61.9mm (2 7/16"), just under 12.7mm (0.5") long
• Material: powder-coated marine-grade aluminium
• Ball size: 1" rubber ball, B-Size
• Weight: 115g (0.253 lbs)
• Weight capacity — standard use: 907g (2 lbs); heavy-duty use: 454g (1 lb)

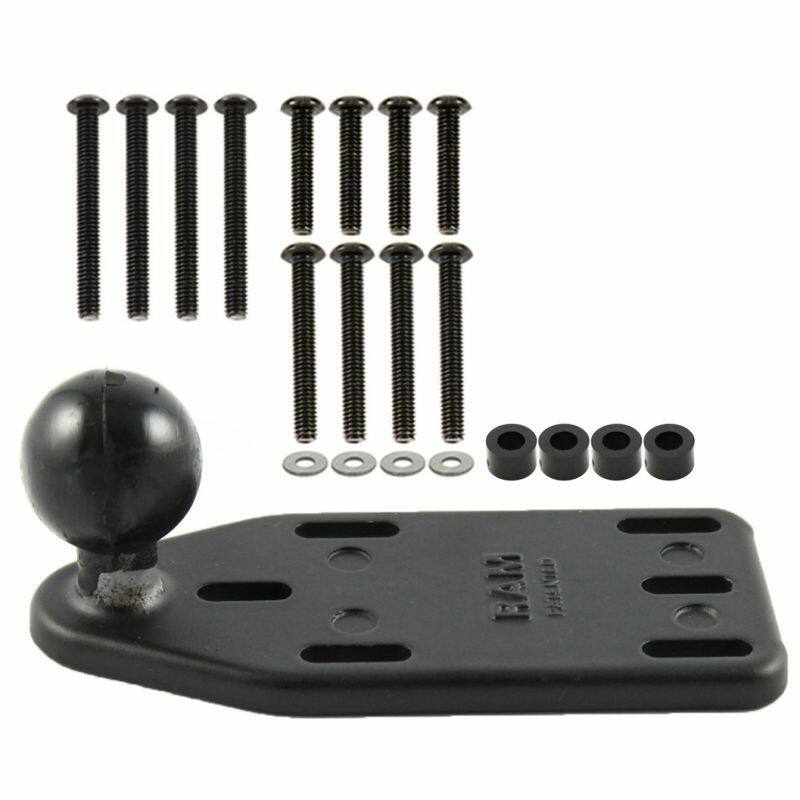

Hardware Included

• 4x M4 x 20mm machine screws
• 4x M4 x 30mm machine screws
• 4x M4 x 35mm machine screws
• 4x M4 flat washers
• 4x 0.188" nylon spacers

FAQs

Will this fit a 2022 Gold Wing brake reservoir? Check the base's drawing file against your reservoir cover's two mounting holes — if the slotted holes align, it should be compatible. Note the reservoir cap needs to be flat rather than rounded for a secure fit.

How fast does this ship? If this item shows as being in stock then it will usually ship from our Auckland warehouse in 1 business day. If it says to enquire then please get in touch as we may be able to get this back in for you.
