RAM Motorcycle Brake/Clutch Reservoir Cover Base - B Series - Centred

RAM-B-345U RAM® Centred Reservoir Cover Ball Base

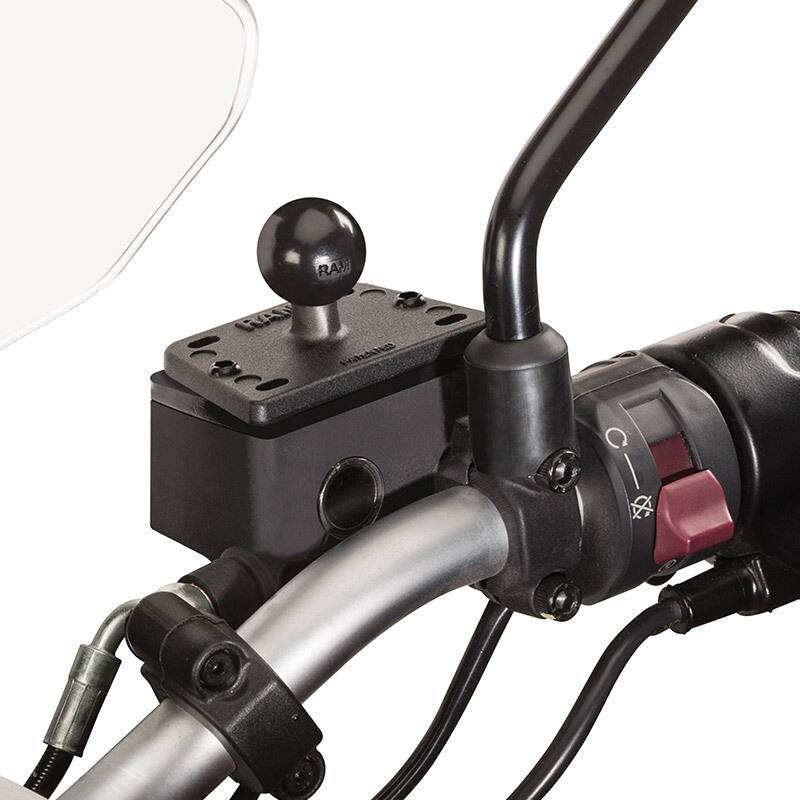

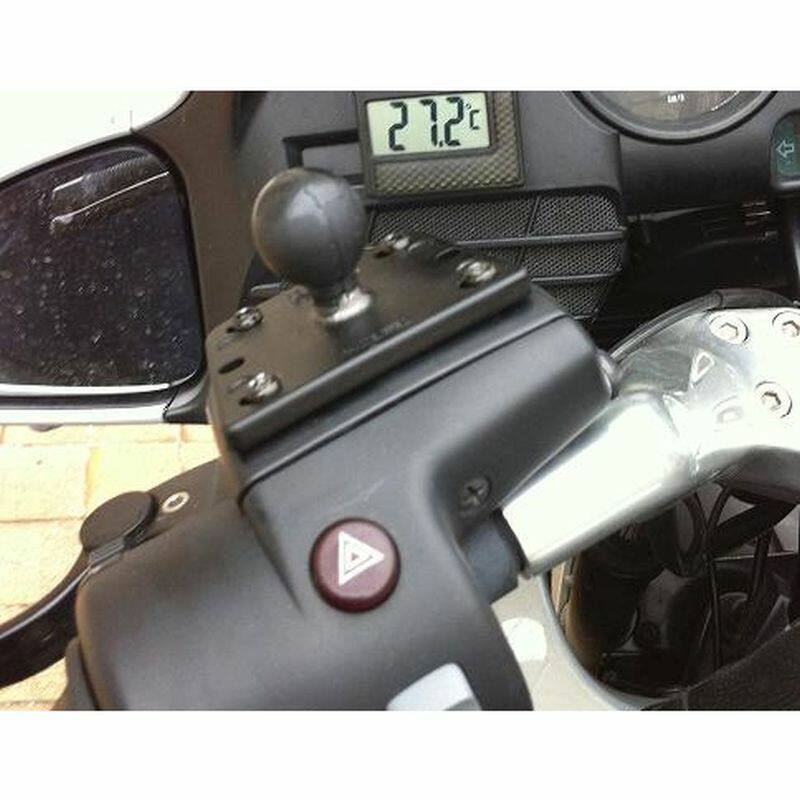

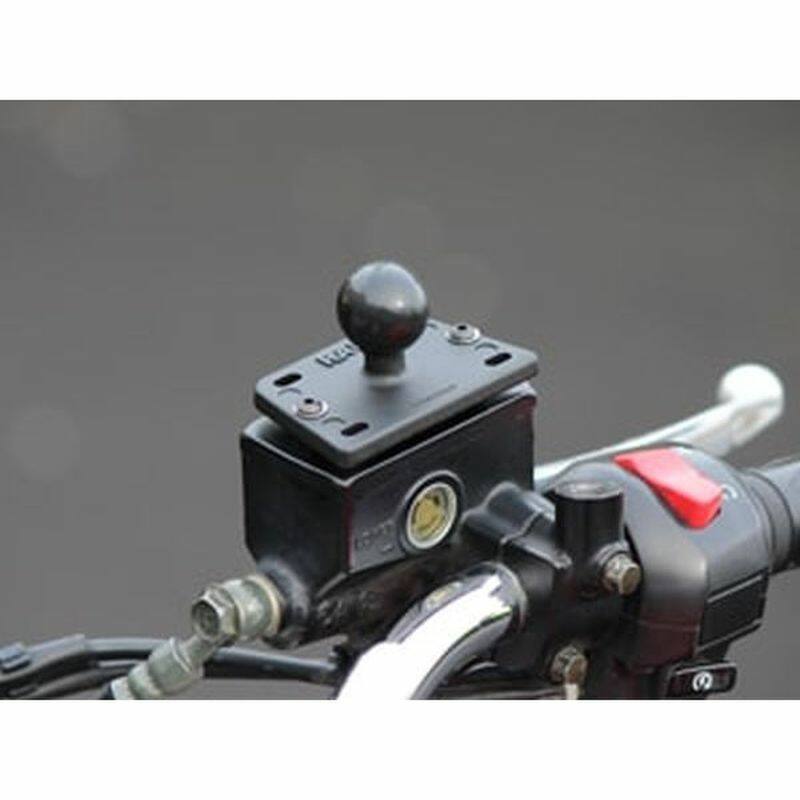

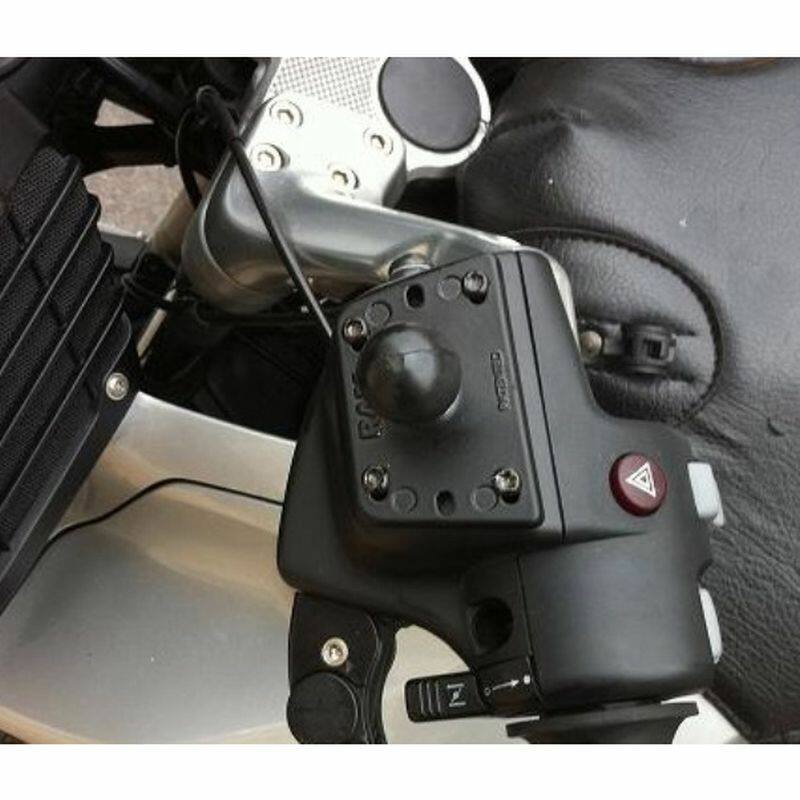

The RAM-B-345U fits cleanly over your motorcycle's existing brake or clutch reservoir cover, adding a centred 1" B-Size RAM® ball without replacing the cover itself.

Key Features

• Fits over the existing reservoir cover; all hardware included
• Six slotted holes give a good range of adjustment across different cover patterns
• Compatible with any B-Size RAM® Mounts double socket arm
• Die-cast aluminium base with an over-moulded rubber ball for a clean factory look
• Powder-coated marine-grade aluminium construction
• Backed by a lifetime warranty

Works With

The reservoir cap needs to be flat for a secure fit; some models (e.g. certain Gold Wings) have a rounded cap that won't seat correctly. Not compatible with the 2016 BMW R1200RT. This is a base only, so you will also need a B Series double socket arm such as the RAM-B-201U and a second ball base such as the RAM-B-238U diamond base to complete the mount; the RAM-B-182U bundles all three together and works out cheaper than buying the parts separately. If you want the ball set off to one side rather than centred, see the RAM-B-346U offset base or the ready-made RAM-B-183U offset kit.

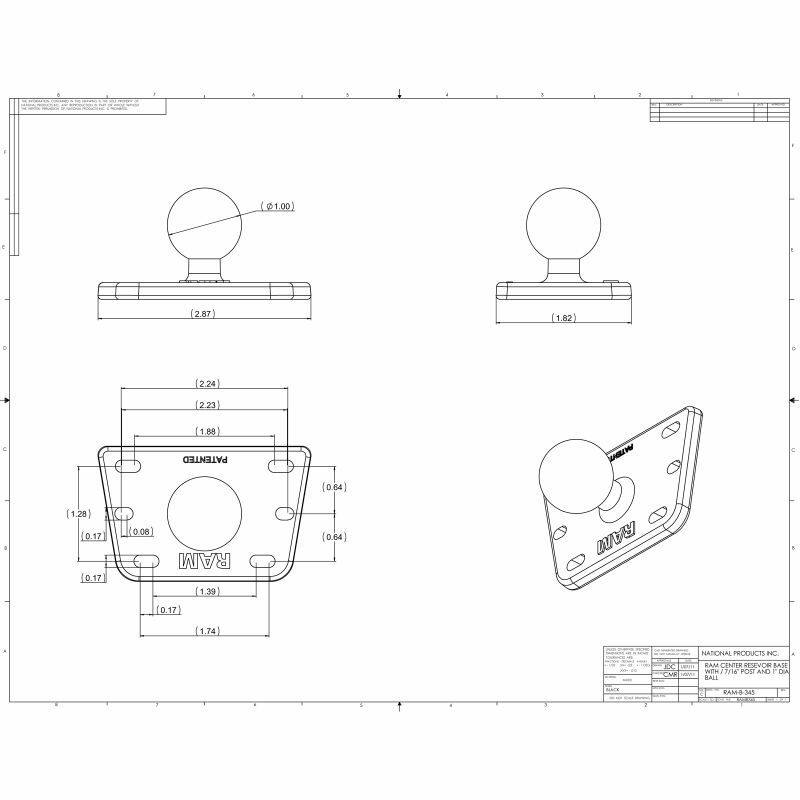

Dimensions & Specifications

• Plate maximum width: 72.9mm x 46.2mm (2.87" x 1.82")
• Hole pattern: 6 slotted holes; refer to the dimensions diagram
• Ball size: 1" rubber ball, B-Size
• Weight capacity; standard use: 907g (2 lbs); heavy-duty use: 454g (1 lb)
• Weight: 99g (0.22 lb)
• Material: powder-coated marine-grade aluminium

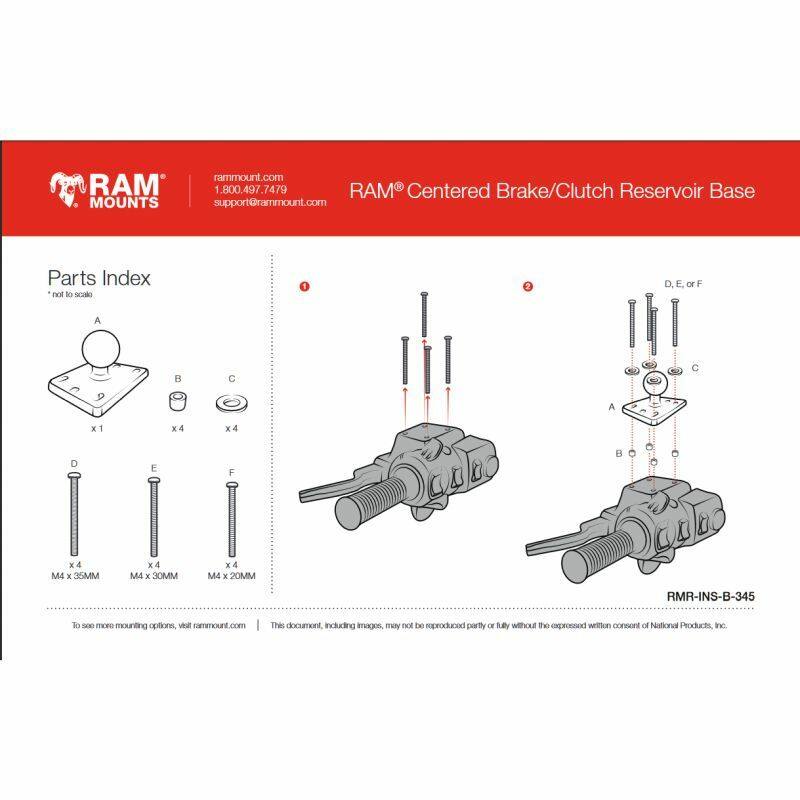

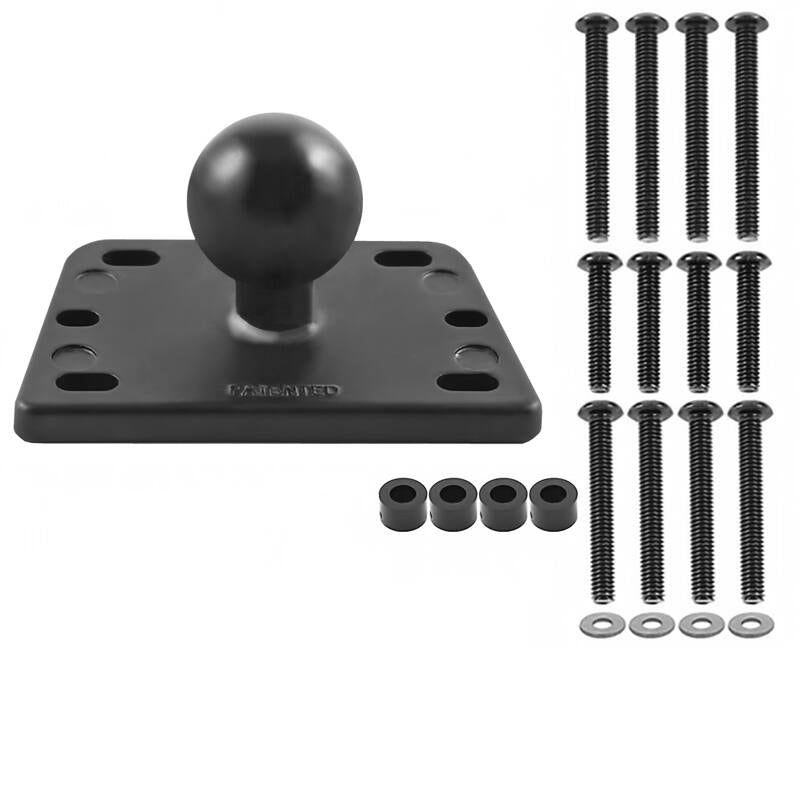

Hardware Included

• 4x M4 x 20mm machine screws
• 4x M4 x 30mm machine screws
• 4x M4 x 35mm machine screws
• 4x M4 flat washers
• 4x 0.188" nylon spacers

FAQs

Will this fit my bike? The plate has six slotted holes, so there is a reasonable range of adjustment; check your reservoir cover against the dimensions diagram. It also needs a flat cap to seat properly. Not compatible with the 2016 BMW R1200RT.

Do I need anything else? Yes. This is the base only. You will need a double socket arm and a second ball base to mount a device, or you can buy the whole lot together as a kit.

How fast does this ship? If this item shows as being in stock then it will usually ship from our Auckland warehouse in 1 business day. If it says to enquire then please get in touch as we may be able to get this back in for you.
