RAM Quick-Grip 15W Waterproof Wireless Charging Phone Mount with Suction Cup Base

RAM-B-166-UN14W-1 RAM® Quick-Grip™ 15W Waterproof Wireless Charging Suction Cup Mount

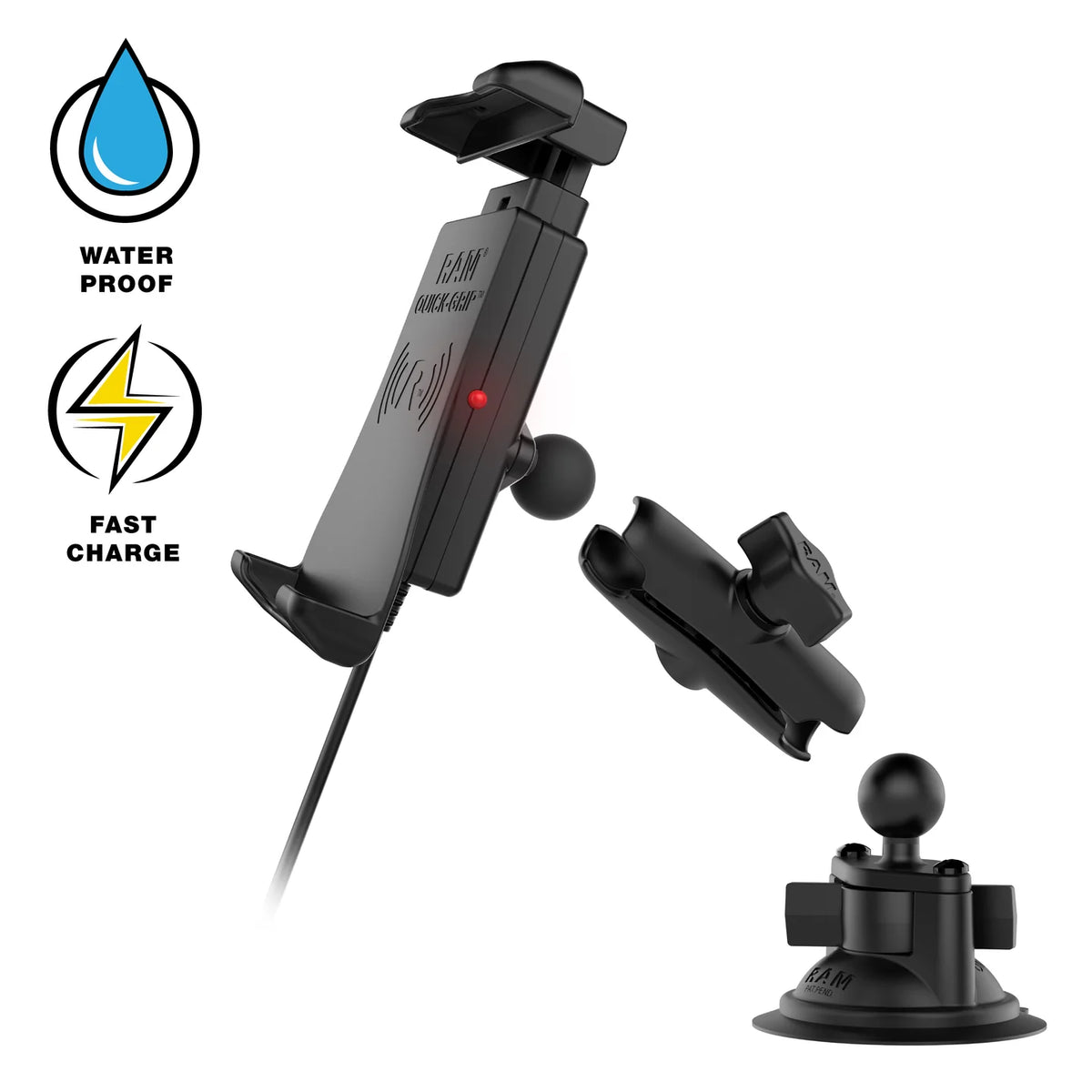

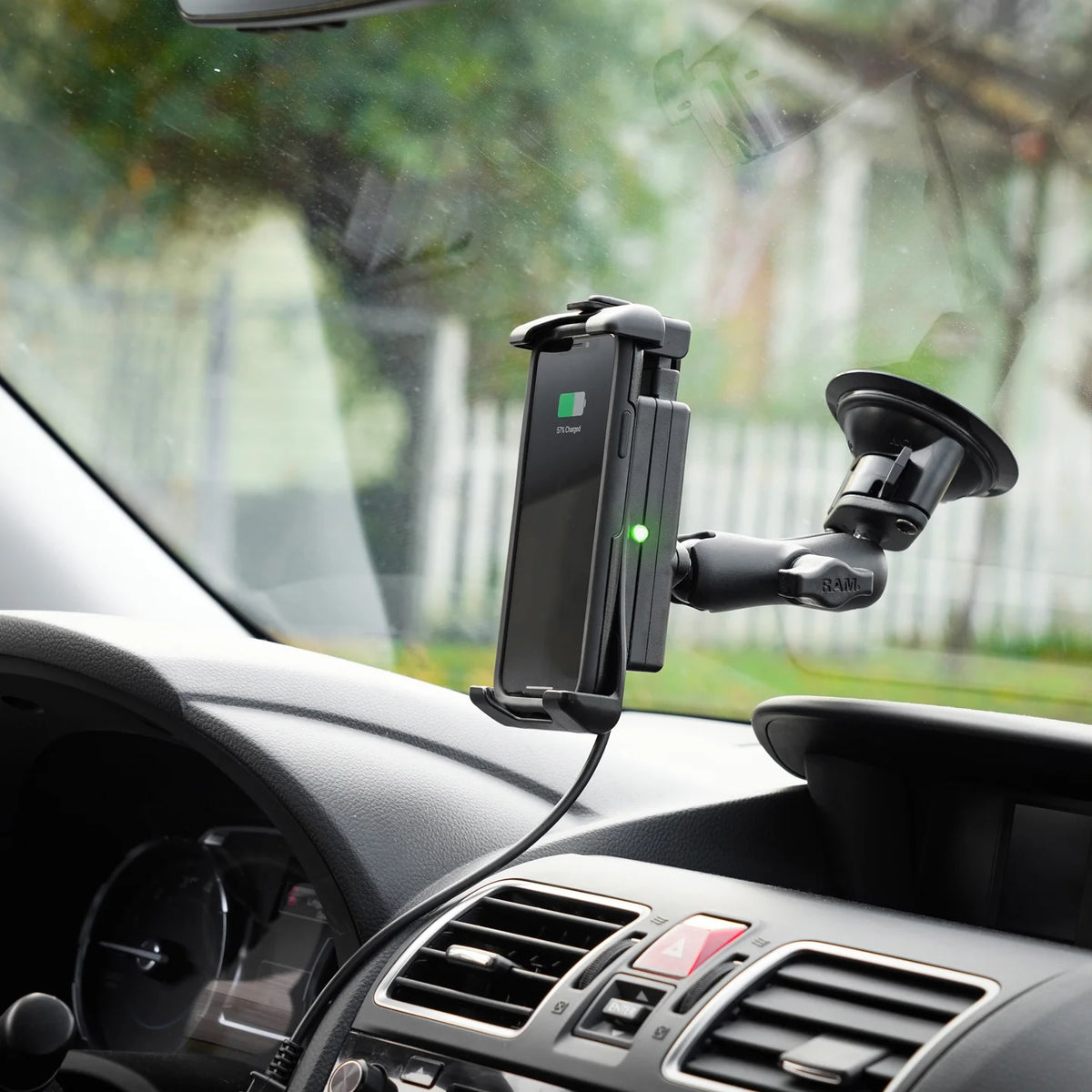

The RAM-B-166-UN14W-1 is a complete windscreen mount that pairs the RAM® Quick-Grip™ 15W waterproof Qi wireless charging cradle with a Twist-Lock™ suction cup base and a B size medium double socket arm. Push the top cup up with your phone, seat it, and it charges wirelessly while it's held; one hand, no fiddling with cables at the phone end.

Key Features

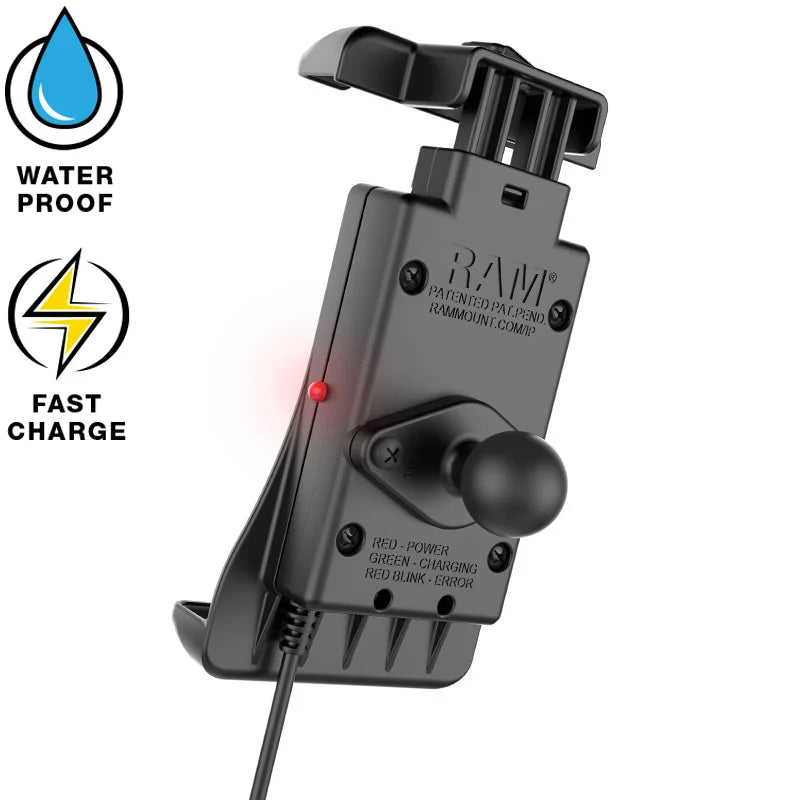

• 15W Qi wireless charging: waterproof spring-loaded cradle with rubber top and bottom cups.

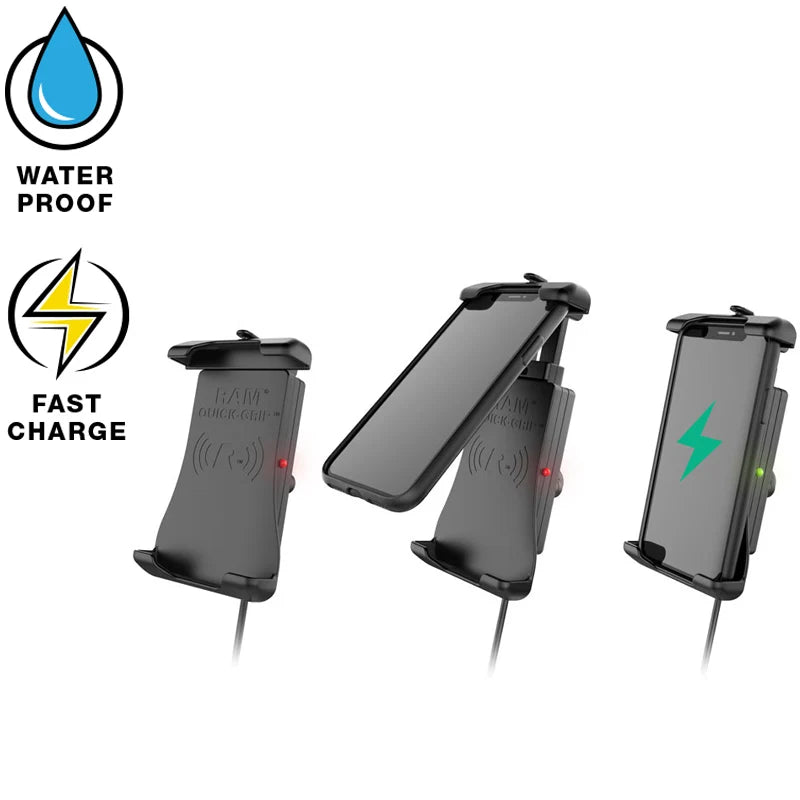

• One-handed loading: the Quick-Grip™ top cup lifts with the phone itself.

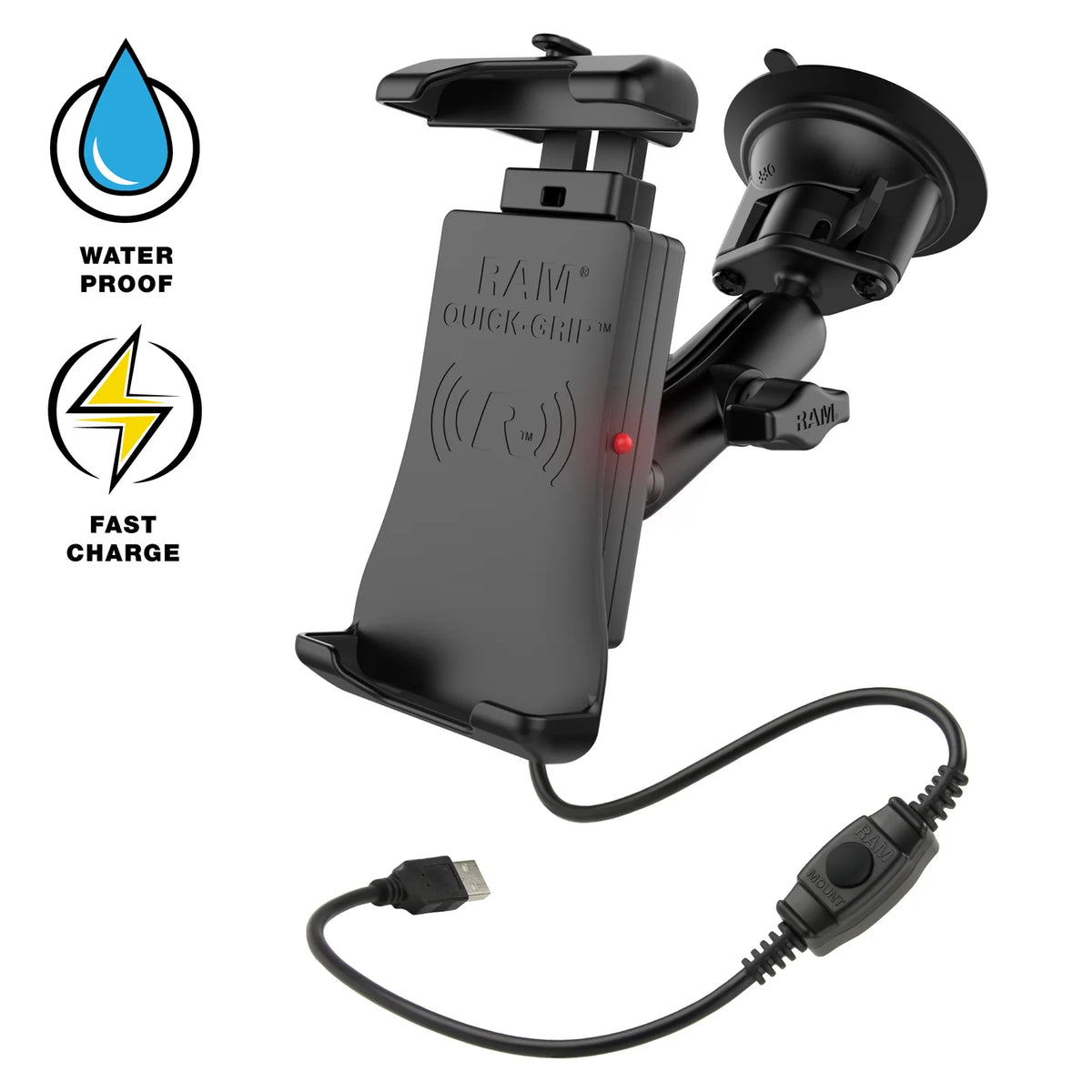

• In-line switch on the USB Type-A pigtail turns the charging module off when not in use; a 1.2m extension cable is included for in-vehicle wiring.

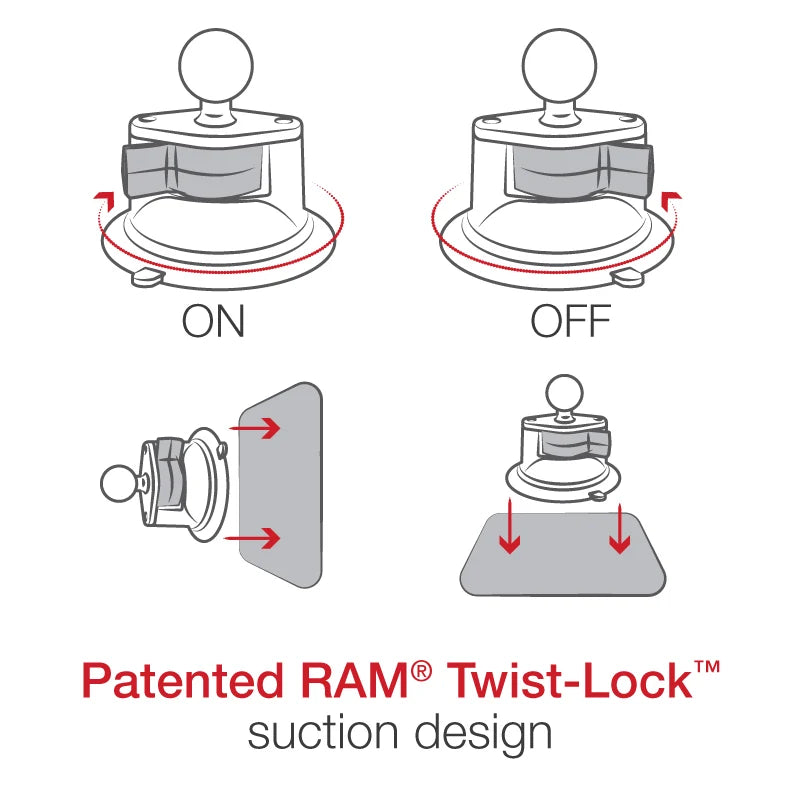

• 84mm (3.3") Twist-Lock™ suction cup for glass and other smooth, non-porous surfaces.

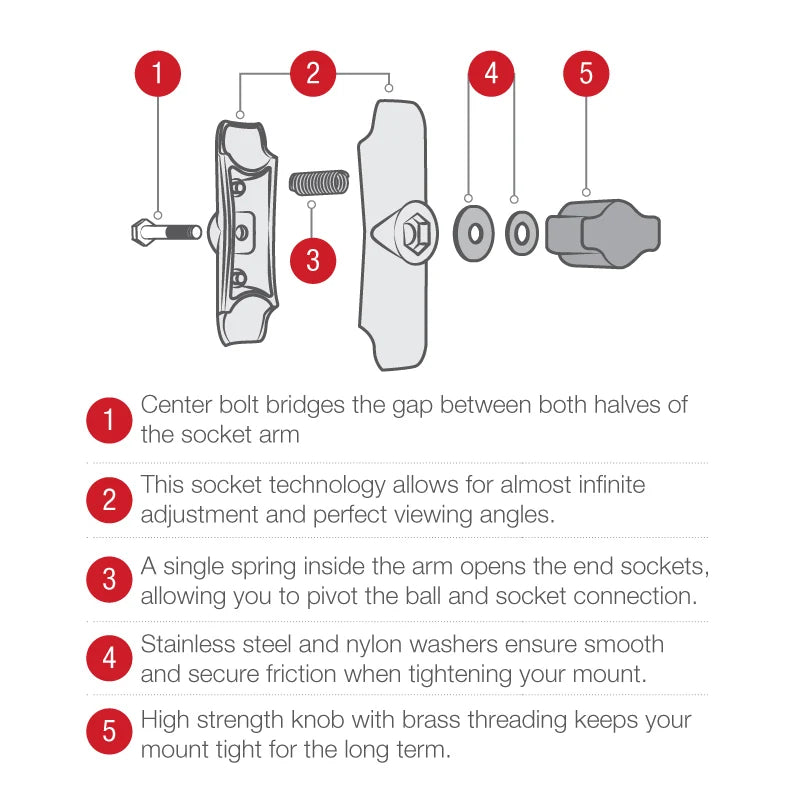

• B size medium arm for near-infinite adjustment; device tether included.
• Powder-coated marine-grade aluminium, stainless steel and high-strength composite. Lifetime warranty on the mount hardware, 1 year on the electronics.

What's Included

• RAM-HOL-UN14WB-1 Quick-Grip™ 15W waterproof wireless charging holder with B size diamond ball base
• RAM-B-201U B size double socket arm, medium length
• RAM-B-224-1U Twist-Lock™ suction cup base, 84mm (3.3") diameter
• Safety tether, silicone sleeve for the waterproof USB connection, 1.2m USB extension cable, 4 small and 2 large zip ties

Works With

Qi-enabled phones that fit the cradle dimensions below, in a case up to 6mm thick with no metal in it. The full compatible device list sits on the holder's own page, RAM-HOL-UN14WB-1. It needs a USB power supply (5V at 2A, or a QC2.0/QC3.0 supply for full 15W), which we can supply separately.

Want a different setup? The holder, RAM-B-201U arm and RAM-B-224-1U suction base are all sold separately. For a non-charging cradle on the same suction kit, see the RAM-B-166-UN10U X-Grip version.

Dimensions & Specifications

• Cradle height range: 142.9mm to 168.3mm (5.625" to 6.625")
• Cradle max width: 79.4mm (3.125")
• Cradle max depth: 17.8mm (0.7")
• Max case thickness for charging: 6mm (no metal)
• Suction cup diameter: 83.8mm (3.3")
• Arm socket-to-socket length: 76mm (3")
• Ball size: B size, 25.4mm (1")
• Weight capacity: 907g (2lb) standard use, 454g (1lb) heavy-duty use
• Input power: 5V at 2A, or 9V at 1.67A; QC2.0/QC3.0 compatible
• Output: 15W Qi (WPC v1.2.4); up to 85% conversion efficiency; 110-205kHz
• Input connector: USB Type-A male, 508mm (20") pigtail plus 1.2m extension
• Operating temperature: 0°C to +37.7°C
• Protection: over current, short circuit, over temperature
• Certifications: FCC, IC, KC, CE, E-Mark, RCM; RoHS and WEEE compliant
• Materials: powder-coated marine-grade aluminium, stainless steel, high-strength composite
• Weight: 748g (1.65lb)
• Warranty: lifetime on mount hardware, 1 year on electronics

FAQs

Will it charge my iPhone? Any Qi phone that fits the cradle will charge. RAM doesn't recommend it for iPhone 12, 13 or 14, because those models charge noticeably faster on MagSafe than on Qi. Check the holder's device list before ordering.

Does it come with a power supply? No. It needs a USB supply; a QC2.0/QC3.0 one gets you the full 15W. Get in touch and we'll sort the right one for your vehicle.

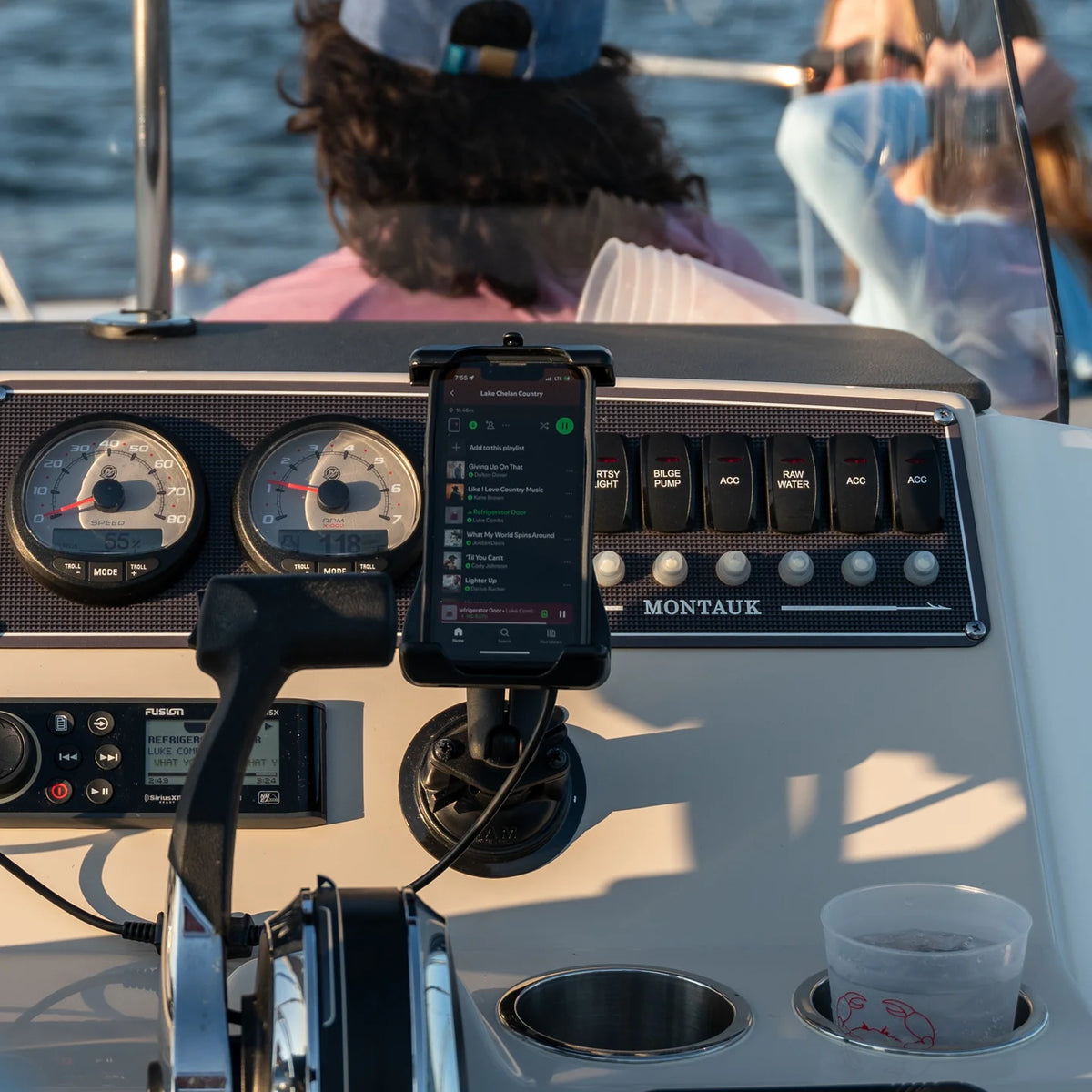

Can I use it on a boat or ATV? The cradle is waterproof, but for open-cockpit use you must apply silicone grease to the USB Type-A connections, or the warranty is void. The suction cup also needs glass or another smooth, non-porous surface to hold.

Will it charge through my case? Yes, up to 6mm thick. Cases with metal plates or inserts will stop it charging.

How fast does it ship? If this item shows as being in stock then it will usually ship from our Auckland warehouse in 1 business day. If it says to enquire then please get in touch as we may be able to get this back in for you.
