RAM Square 100mm VESA Base Plate - D Series with Arm and Round Base

RAM-D-101U-246 RAM® Double Ball Mount with 100x100mm VESA Plate, Arm and Round Base (D Size)

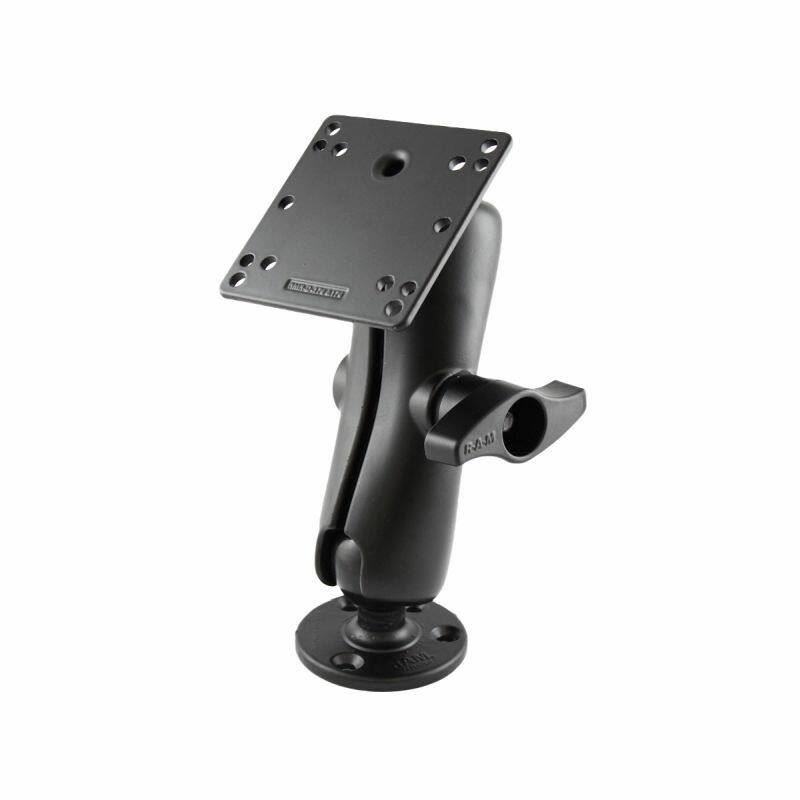

The RAM-D-101U-246 is a complete D-size mount: a 120.65mm square VESA plate, a standard-length double socket arm and a 93.5mm round AMPS base. It bolts a VESA-pattern screen or device to a flat surface and gives near-infinite adjustment through RAM's twin ball-and-socket joints.

Key Features

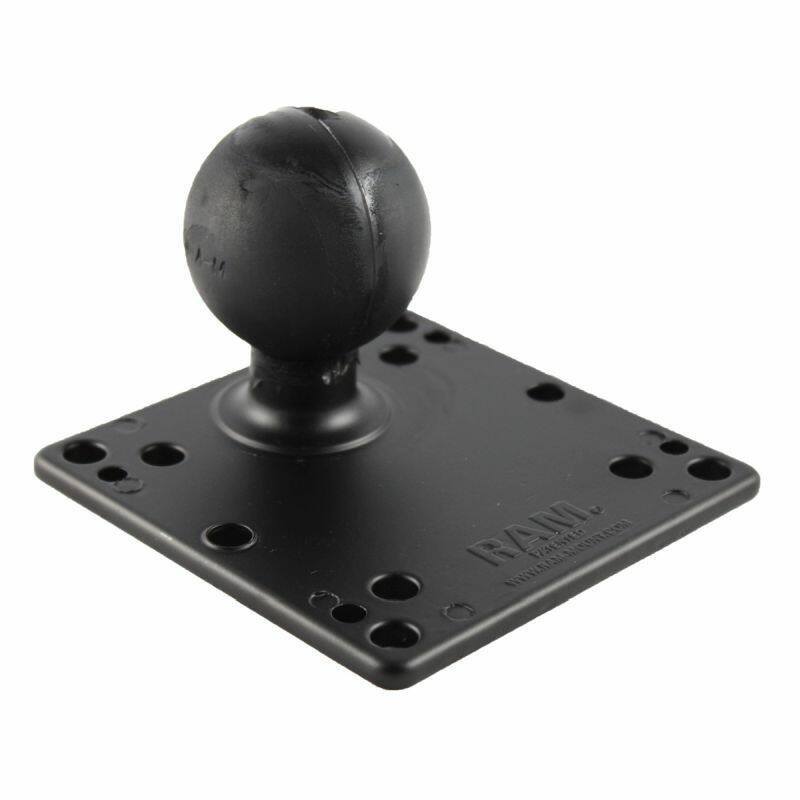

• 120.65mm square VESA plate with 100x100mm and 75x75mm hole patterns

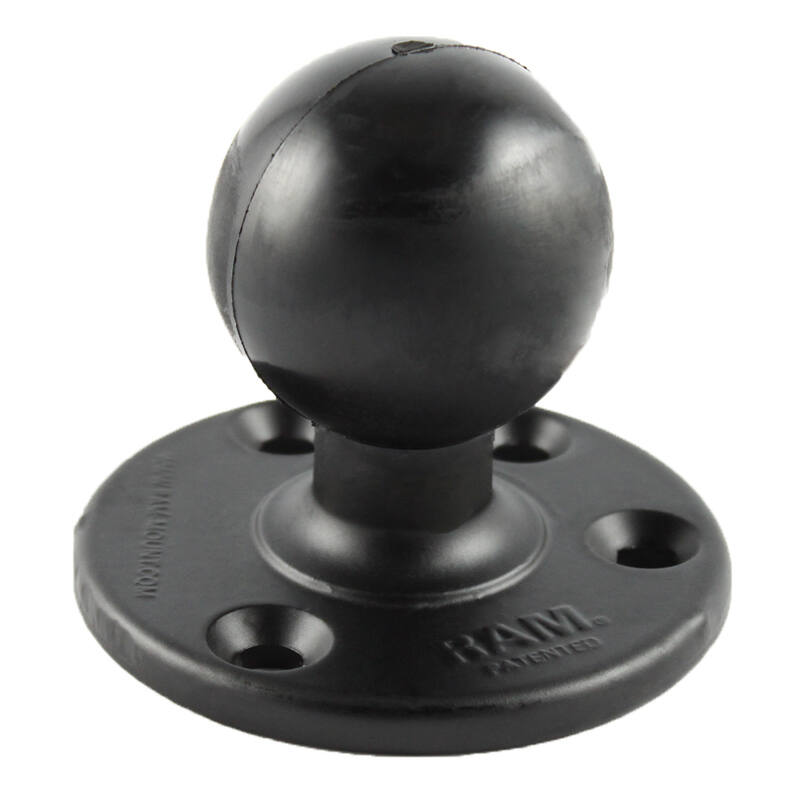

• 93.5mm round base with two-hole (180-degree) and three-hole (120-degree) patterns for drilling down to a flat surface

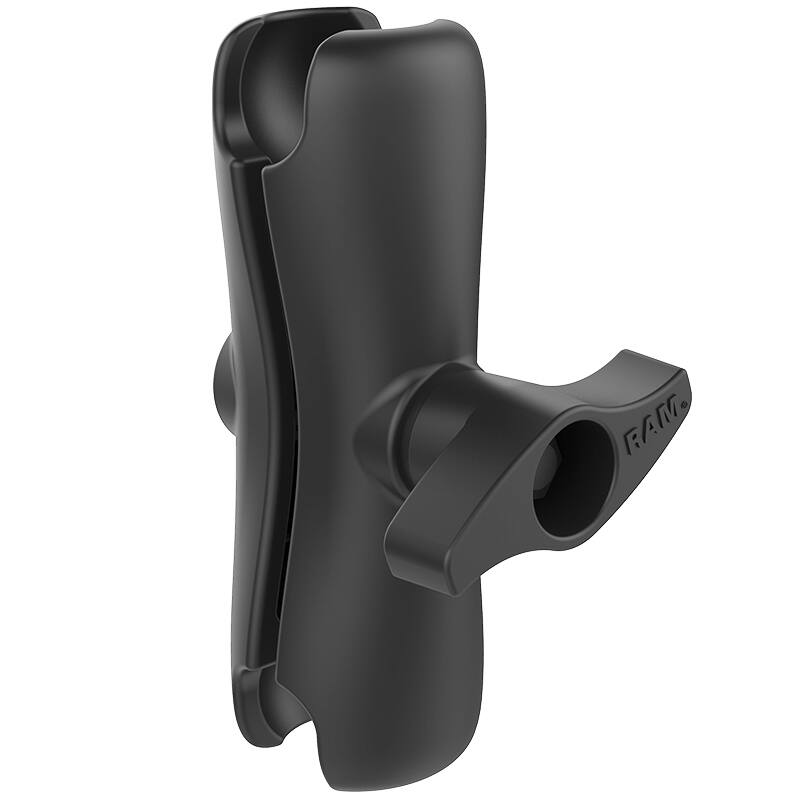

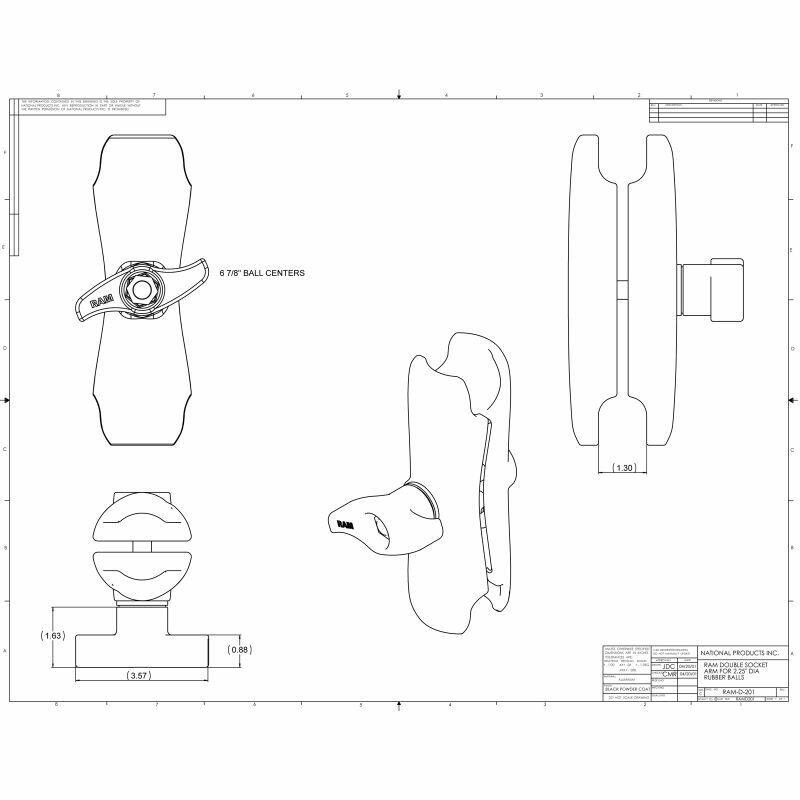

• D size 2.25" (57mm) double socket arm with ball-and-socket joints at both ends
• Powder coated, marine-grade aluminium for demanding environments
• Four shoulder washers included for use with smaller screws
• Backed by a lifetime warranty

Works With

Any device or display carrying a 100x100mm or 75x75mm VESA pattern. Built from the RAM-D-246U VESA plate, a RAM-D-201U arm and a RAM-D-202U round base. For the 75mm-plate equivalent see the RAM-D-101U-2461.

Dimensions & Specifications

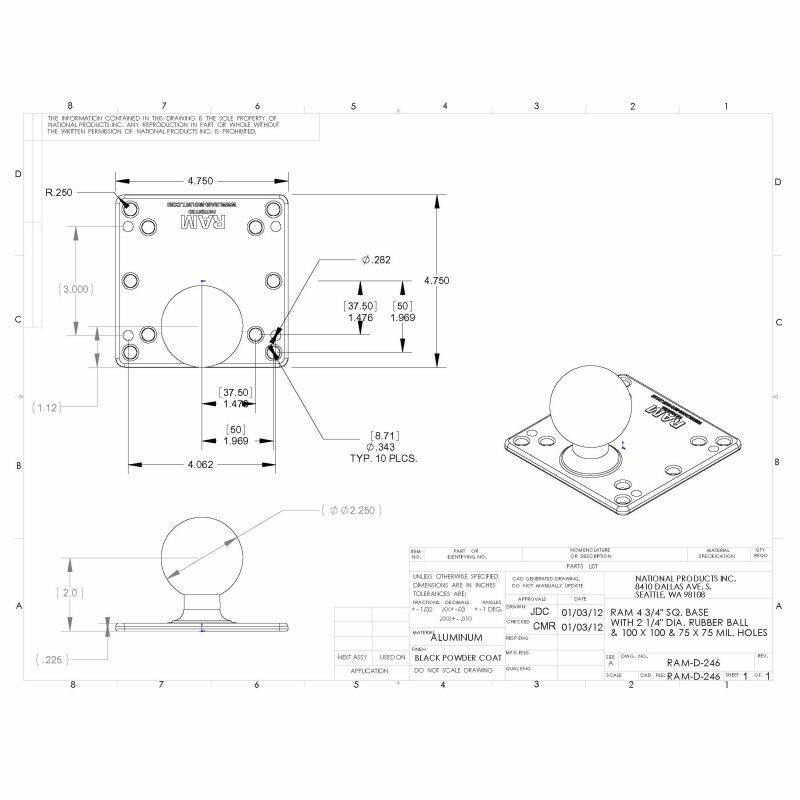

• Square plate: 120.65mm (4.75") with 100x100mm and 75x75mm VESA patterns
• Round base: 93.5mm diameter, two-hole 180-degree and three-hole 120-degree patterns
• Ball size: 2.25" / 57mm (D size)
• Hardware included: (4) .312" x .187" shoulder washers
• Material: powder coated marine-grade aluminium
• Weight: 1.87kg (4.12 lb)
• Weight capacity: 2.72kg (6 lb) standard use, 2.26kg (5 lb) heavy-duty use

FAQs

What are the four shoulder washers for? They let you use smaller screws with the plate's holes, filling the gap so a smaller screw head can't strip through a larger hole. They work with any of the plate's holes.
