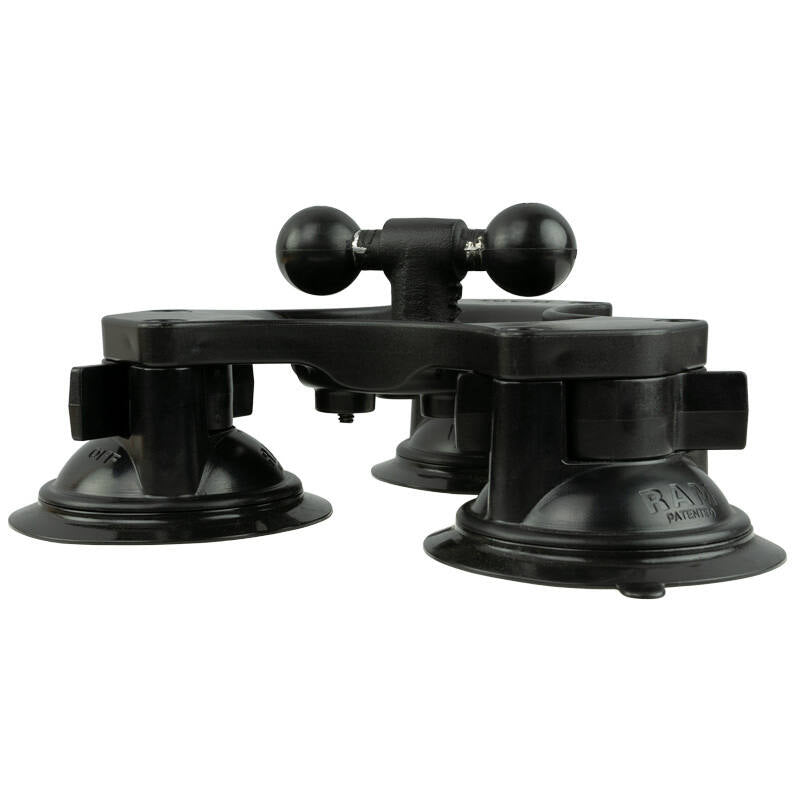

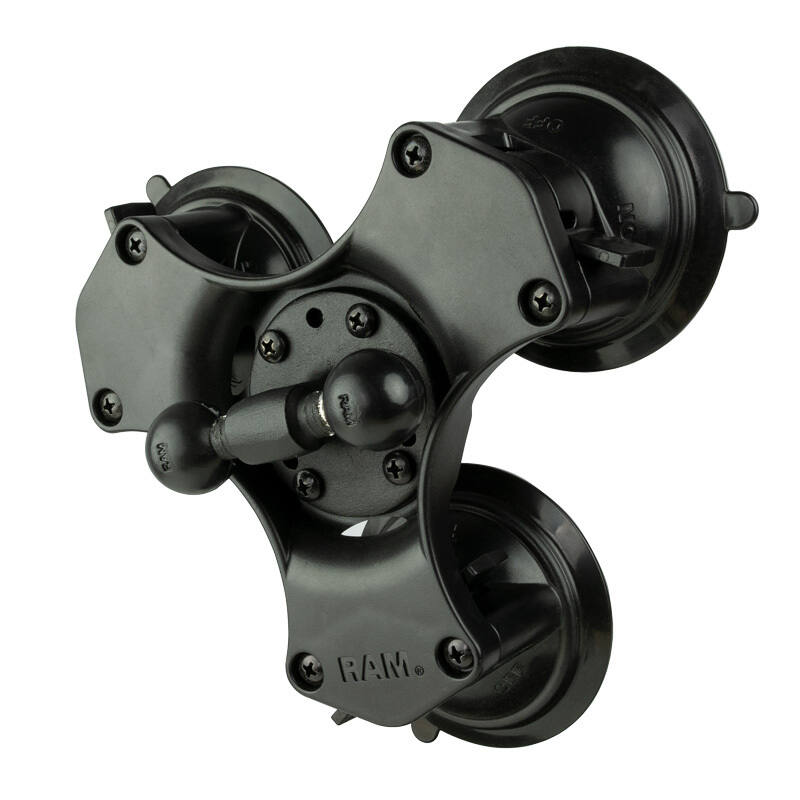

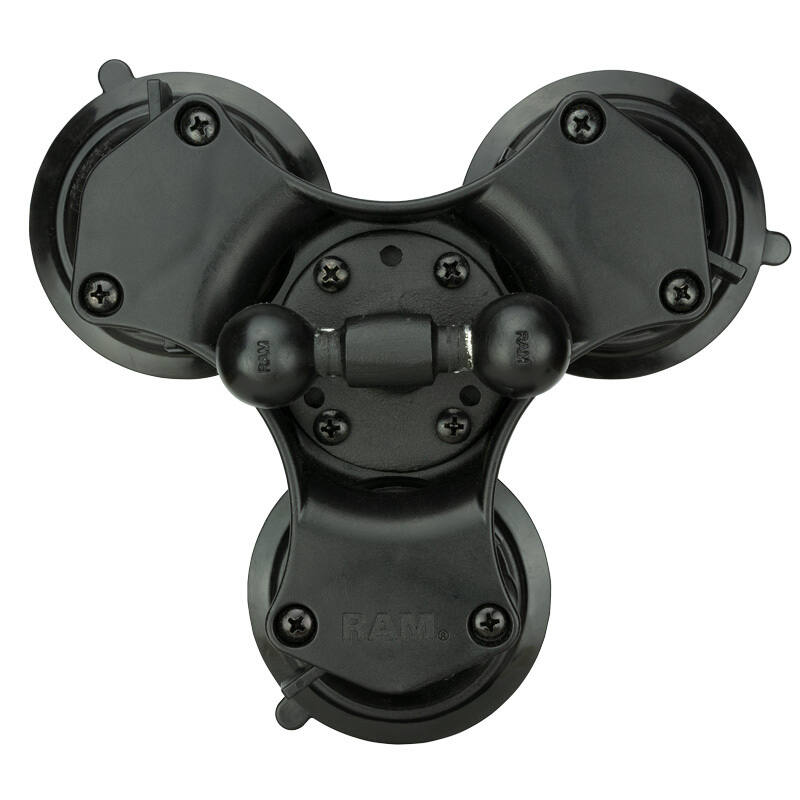

RAP-B-217-365-224-1U RAM® Twist-Lock™ Triple Suction Cup Double Ball Base
Features
* We have combined the triple suction cup base with a double ball adaptor so you can run 2 B-series arms from the one base!
* RAM® Twist-Lock™ triple suction cup base is ideal for windshields and other non-porous surfaces
* Includes round base with double 1" diameter B size RAM® ball adapter that allows for mounting two small devices off one base
* RAM® ball and socket technology allows for near-infinite adjustability
* Supports device configurations up to 907 grams per ball; ideal for mounting a phone, GoPro, GPS/satellite tracker, handheld radio and more
* Backed by a lifetime warranty
This suction mount base is ideal for high vibration environments (e.g. helicopters) and consists of a triple 83.8mm (3.3") twist lock suction cup base with plate that contains the universal AMPs hole pattern. The suction cup is designed to have an extra strong hold on any smooth non-porous surface, but for best result, mount the suction cup on a glass or non-porous plastic surface.

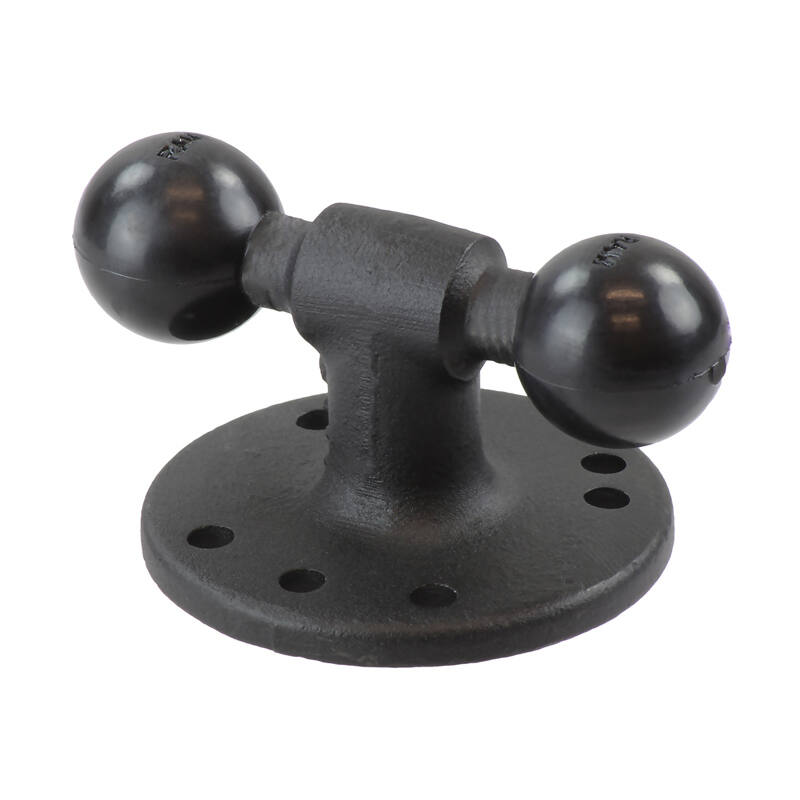

The RAM® Double Ball Adapter with Round Base consists of two 1" (B series) diameter rubber balls connected to a post round base. This has pre-drilled holes, including the universal AMPs hole pattern and 3-hole 120 degree pattern. The 1" balls measure 64mm (2.5") apart centre to centre.
Ball Size
1" B Series Ball
Hardware Included
Assembly Hardware
(4) #10-24 x 5/8" Machine Screws
(4) #10-24 Nylock Nuts
Suction Size
(3) x 84mm (3.3") Diameter Bases
Total Width 201.9mm (7.95")
Material:
High Strength Composite
Marine Grade Aluminium
Weight Capacity
Standard Use:
907 grams (2 lbs) per ball
Heavy-Duty Use:
454 grams (1 lb) per ball
Components:

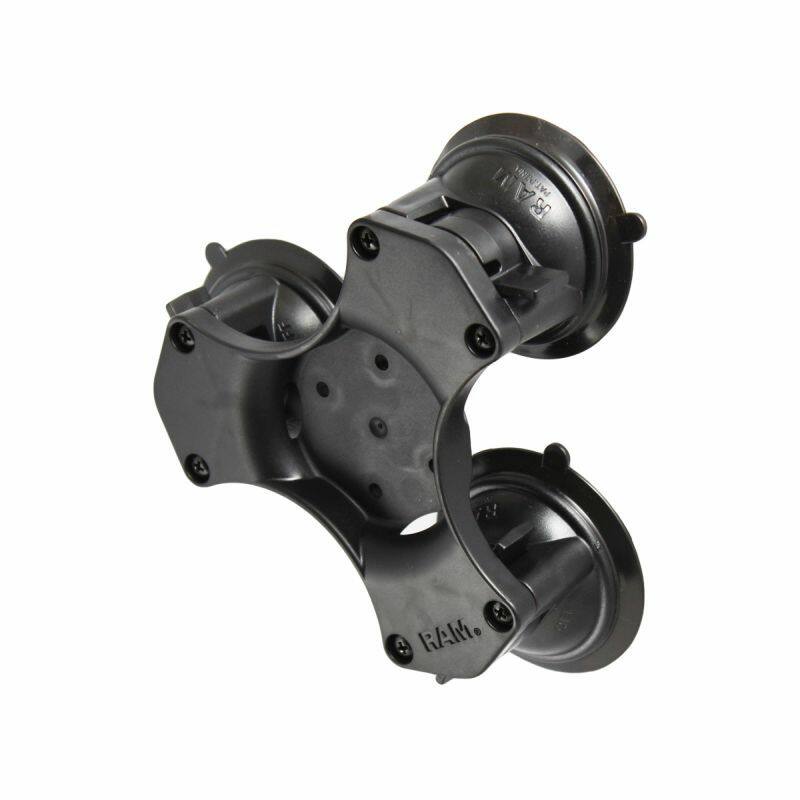

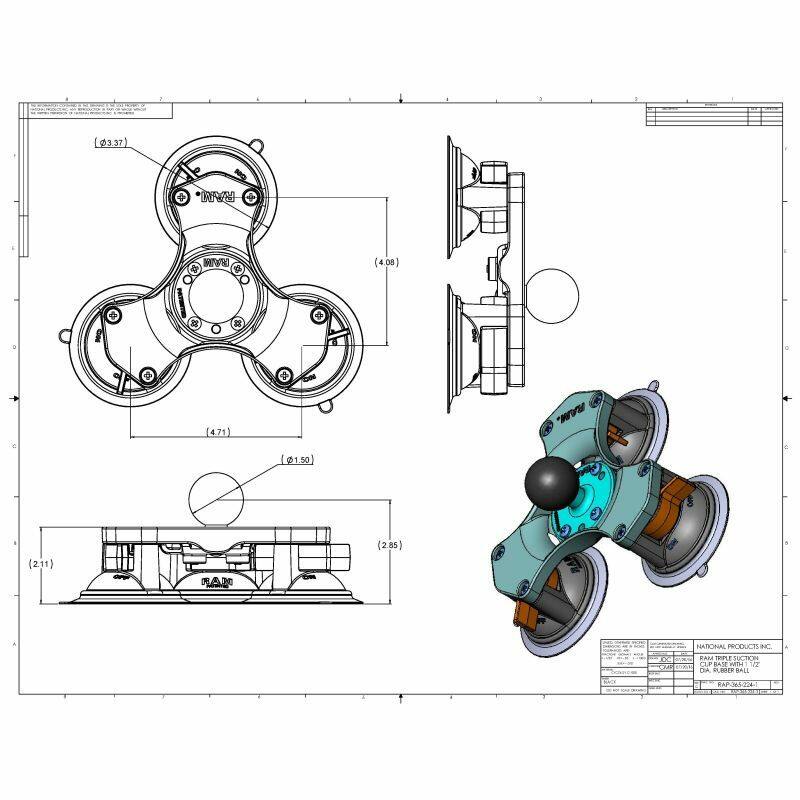

RAP-365-224-1BU RAM Triple Suction Cup Base with AMPs Hole Pattern
RAM-B-217U RAM 2.5" Round Base with Post & 2 1" Balls
YouTube:
https://www.youtube.com/watch?v=iO9NEqm9MJk&t=1s
