RAM Suction Cup Base - Triple Cup with 1" Ball (B Series)

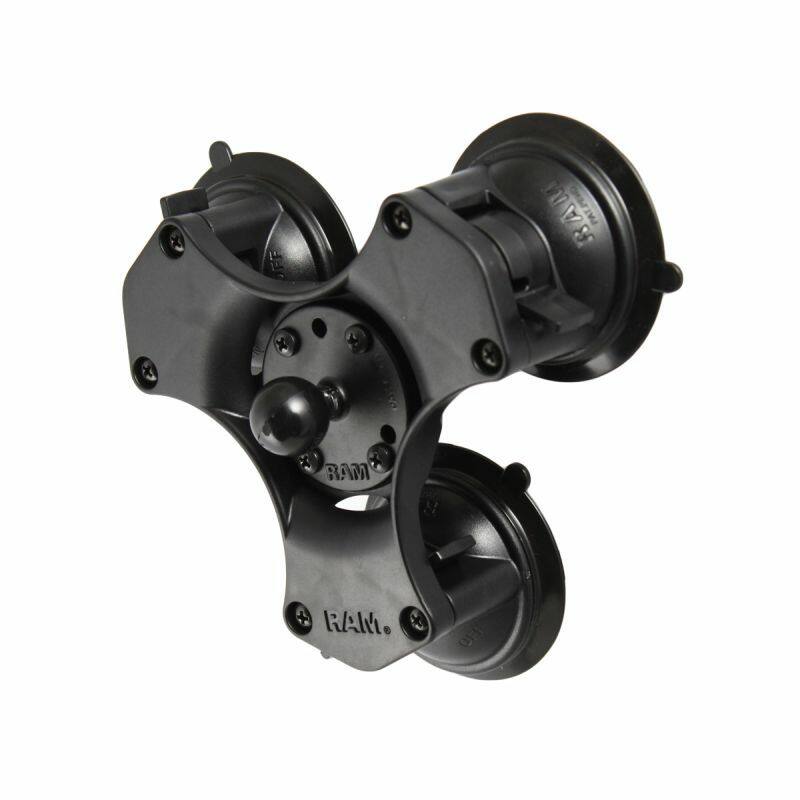

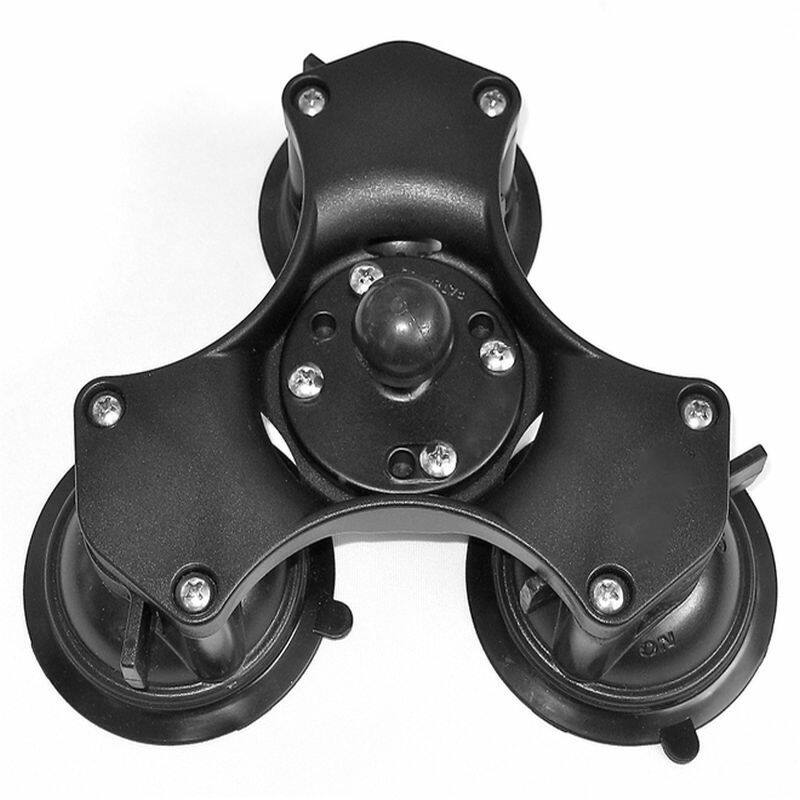

RAP-B-365-224-1U RAM® Twist-Lock™ Triple Suction Cup Ball Base

The RAP-B-365-224-1U pairs a composite triple suction cup base with an aluminium round ball base and B Size 1" ball, for an extra-strong hold in high-vibration environments like helicopters and other aircraft.

Key Features

• Triple suction cup base with the universal AMPS hole pattern, for an extra-strong hold on smooth, non-porous surfaces
• 1" B Size ball base, compatible with any B Size RAM® double socket arm
• Ball-and-socket technology allows near-infinite adjustability
• Composite suction cup paired with a powder-coated, marine-grade aluminium ball base for durability in demanding environments
• Backed by RAM®'s lifetime warranty

Works With

This is a base only, it needs a RAM® double socket arm and a device holder to complete a mount. For the strongest hold, fit the suction cup to glass or another smooth, non-porous surface rather than anything textured.

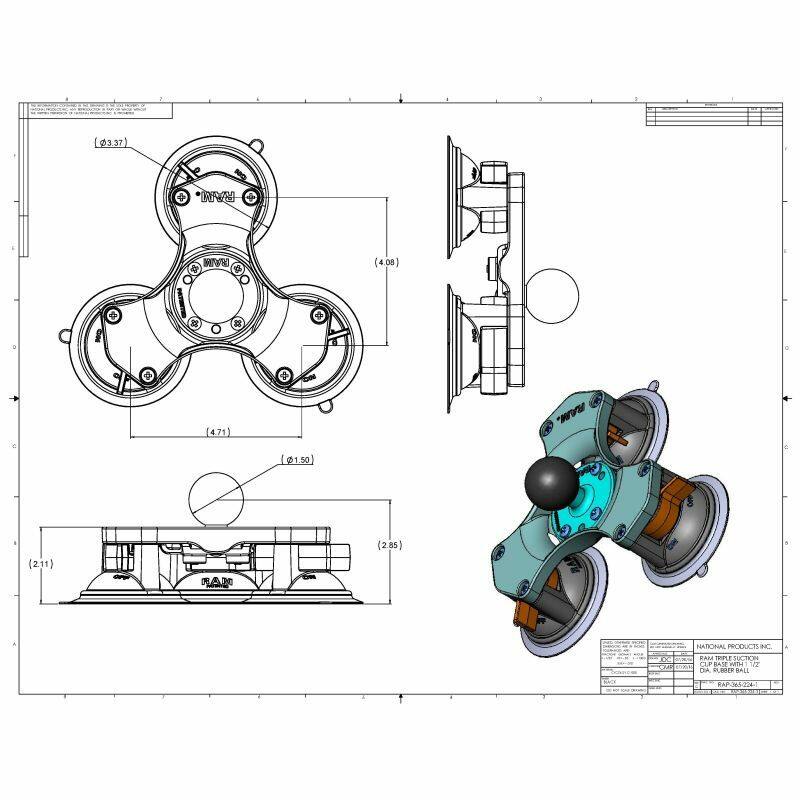

Dimensions & Specifications

• Suction cup diameter: 3 x 84mm (3.3") bases, 201.9mm (7.95") total width
• Ball size: 1" B Series ball
• Weight: 390g (0.86 lbs)
• Weight capacity: 907g (2 lbs)
• Materials: high-strength composite triple suction cup, powder-coated marine-grade aluminium ball base

Components

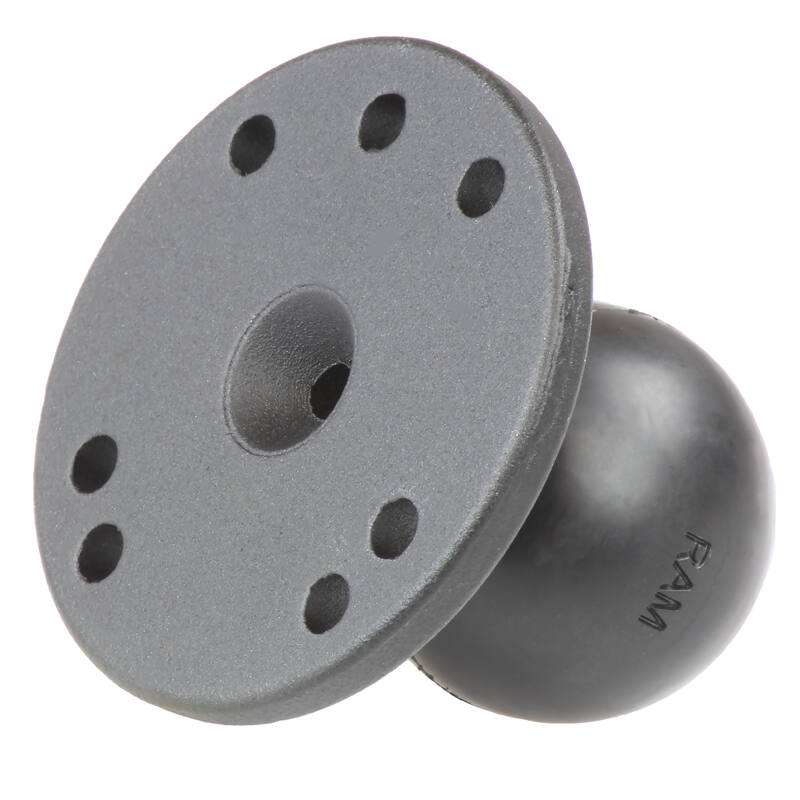

This kit combines two parts you can also buy separately: the RAP-365-224-1BU triple suction cup base, and the RAM-B-202U round ball base.

Alternative Bases

Need to mount two devices off one base? RAP-B-217-365-224-1U is the same triple suction cup base with a double-ball round base instead.
