RAM Tele-Pole - 12" Upper Pole with Double Swing Arms & Round Plate

RAM-VP-SW1-12 RAM® 12" Upper Pole with Double Swing Arms & Round Plate

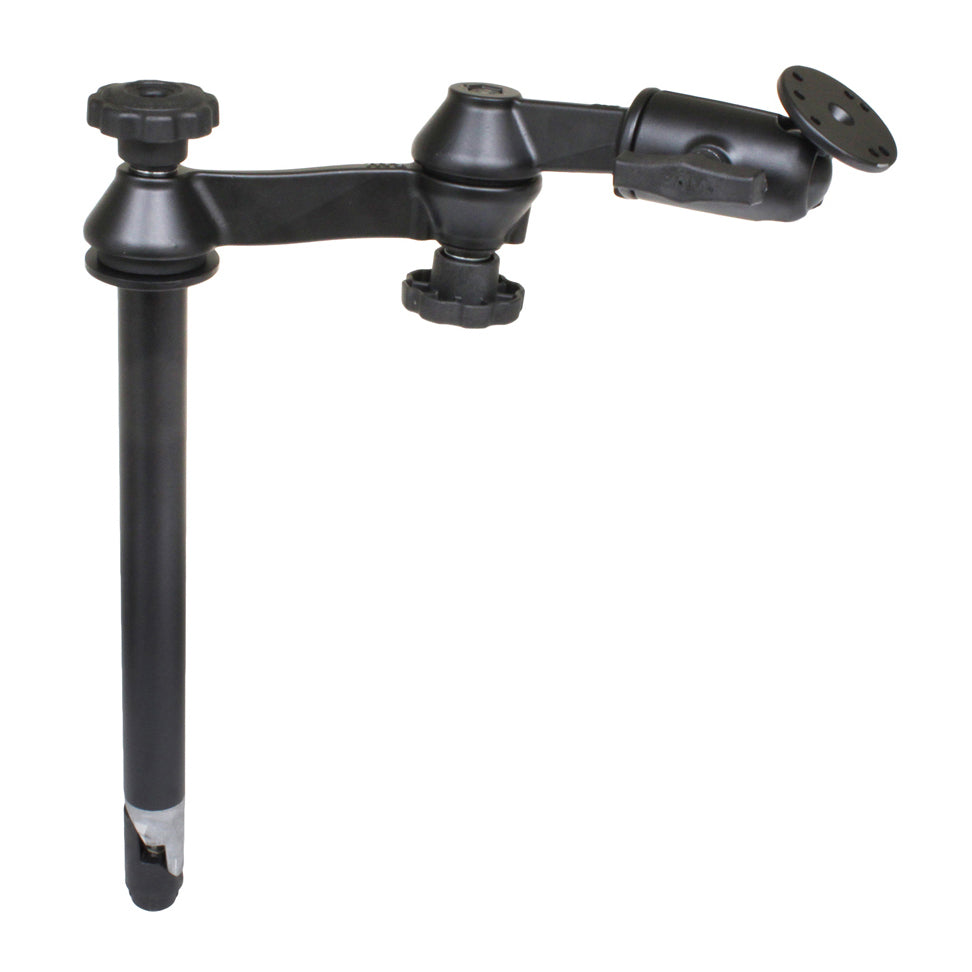

The RAM-VP-SW1-12 pairs a 305mm (12") upper male Tele-Pole™ with a 305mm (12") double swing arm and a 63.5mm (2.5") round AMPS plate. It fits any RAM® vehicle base with a welded female Tele-Pole™, or a RAM lower female Tele-Pole, giving you a height-adjustable swing-arm mount for laptop trays, tablet holders and other AMPS-pattern cradles.

Key Features

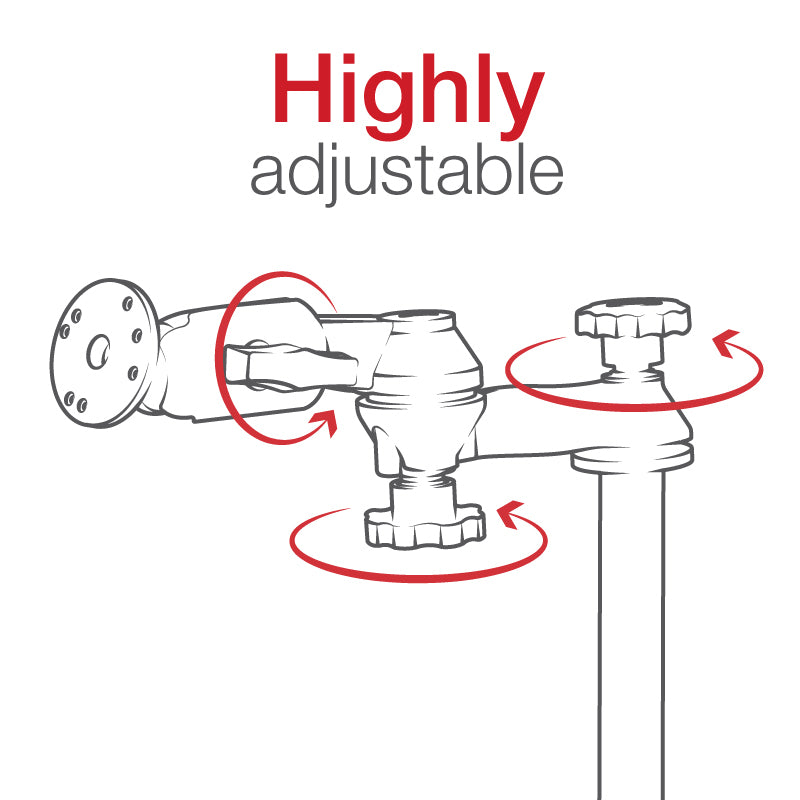

• Height adjustment: set the height with the knob at the top of the post; once tightened, the Tele-Pole™ locks into a rigid support
• Double swing arm: 305mm (12") arm with a rotating swivel lets you twist and tilt the device to suit driver or passenger
• Universal AMPS plate: 63.5mm (2.5") round plate takes a wide range of RAM® laptop, tablet and device holders
• Powder-coated steel and marine-grade aluminium construction
• Backed by a lifetime warranty

Works With

Fits directly into RAM® vehicle bases with a welded female Tele-Pole™. For bases without one, add a lower female Tele-Pole: RAM-VP-TBF5U (127mm), RAM-VP-TBF7U (178mm), RAM-VP-TBF9U (228mm), RAM-VP-TBF12U (304mm) or RAM-VP-TBF18U (457mm). For a shorter upper pole, see the RAM-VP-SW1-8.

Dimensions & Specifications

• Upper pole length: 305mm (12")
• Swing arm length: 305mm (12")
• Plate size: 63.5mm (2.5") diameter
• Tele-Pole hole pattern: 66.7mm x 66.7mm (2.625" x 2.625")
• Plate hole pattern: 4-hole AMPS 30mm x 38mm (1.181" x 1.496"); 3-hole 120° 46.0mm (1.812") diameter
• Ball/socket size: C size 38.1mm (1.5")
• Material: powder-coated steel, marine-grade aluminium
• Weight: 2.21kg (4.87 lb)
• Hardware included: assembly hardware

What's Included

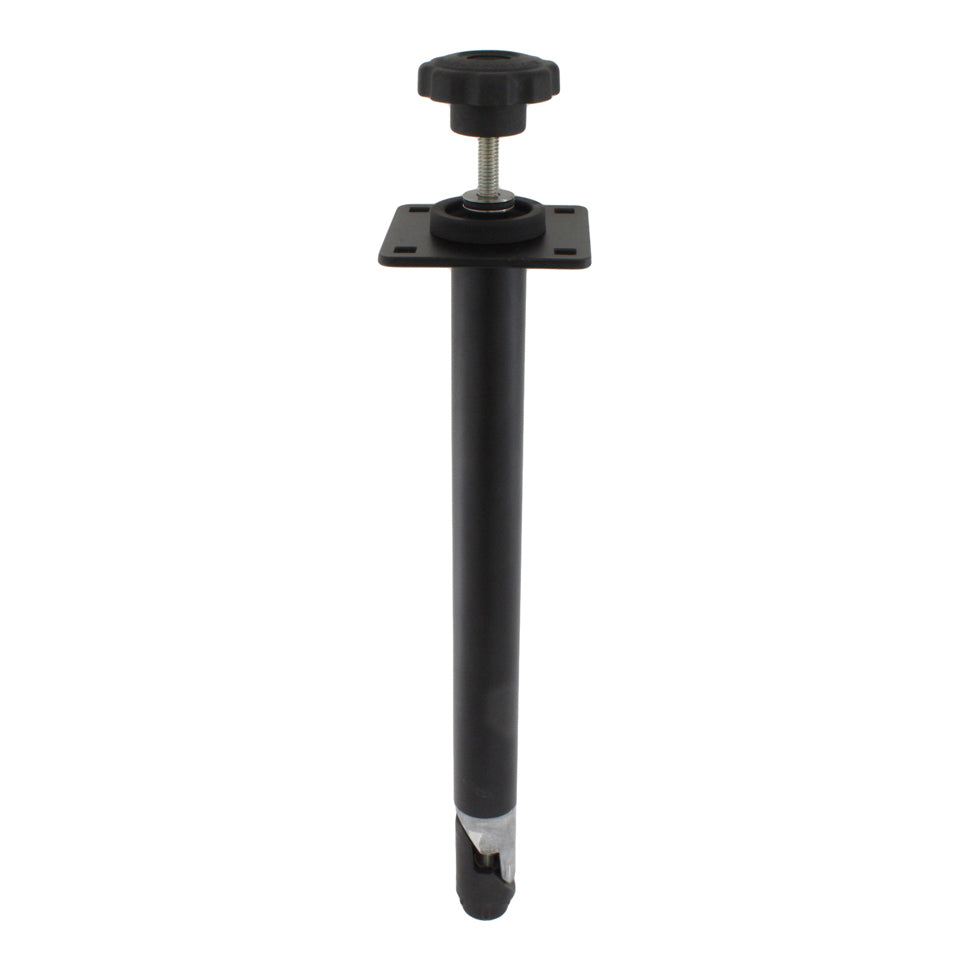

• RAM-VP-TTM12U 305mm (12") upper Tele-Pole
• RAM-VB-110-1U 305mm (12") double swing arm with round plate

Documents

Upper Tele-Pole Assembly Guide (PDF)

FAQs

Will it fit my vehicle base? It fits straight into any RAM vehicle base with a welded female Tele-Pole. If your base doesn't have one, add a RAM-VP-TBF lower female pole first.
