RAP-404-STA1U - Tough-Claw Mount for Starlink Mini - C Series (1.5" Ball)

RAP-404-STA1U – RAM® Tough-Claw™ Mount for Starlink Mini

The RAP-404-STA1U is a complete, tool-free rail mount for the Starlink Mini. A medium Tough-Claw™ clamps to round, square or odd-shaped bars from 25mm to 41mm, a medium C-size double socket arm gives you the reach, and a custom-fit adapter bolts straight to the Mini so you can hold the dish at the 8 degree horizontal angle Starlink recommends.

Key Features

• Tool-free Tough-Claw™ clamp: drop it over the bar and hand-tighten the knob, on or off in seconds
• Fits medium rails and bars: 25mm to 41mm (1" to 1.6") round or square tube, with rubber jaw pads to protect the surface

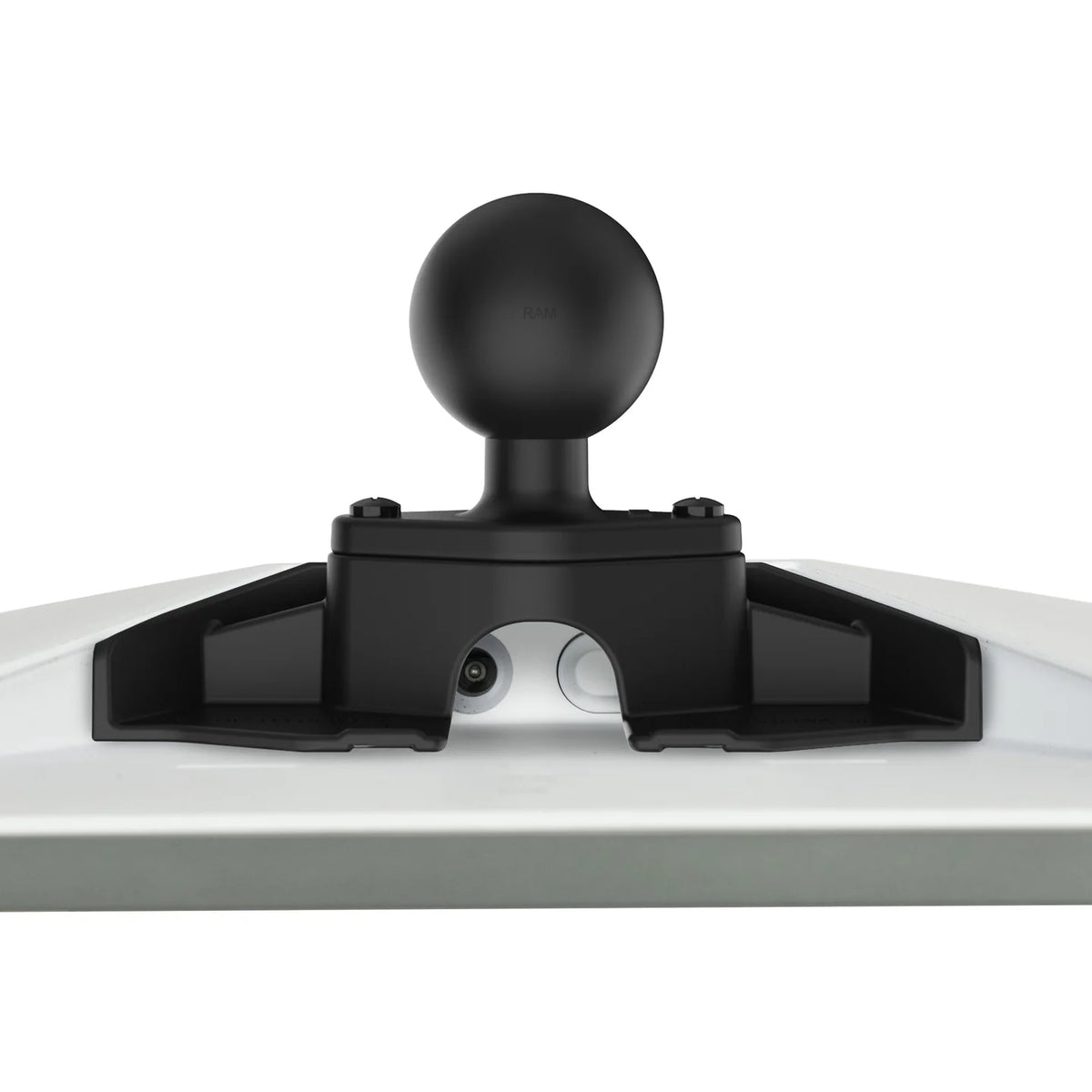

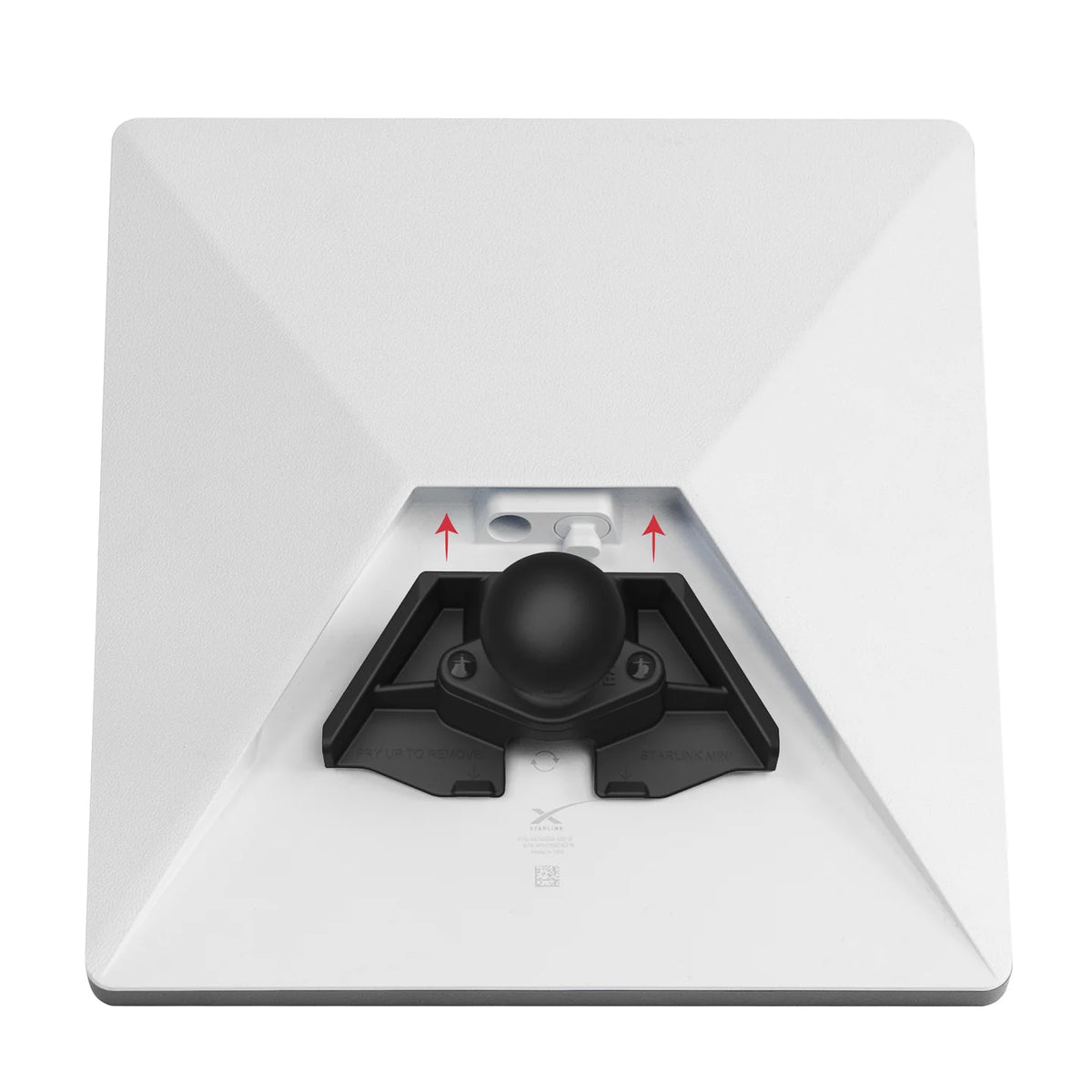

• Custom-fit Starlink Mini adapter: bolts to the dish's own mounting points, no drilling into the Mini
• C-size (1.5") ball system: specified for the weight of the Mini, with near-infinite angle adjustment
• Marine-grade aluminium and high-strength composite, RAM lifetime warranty

Works With

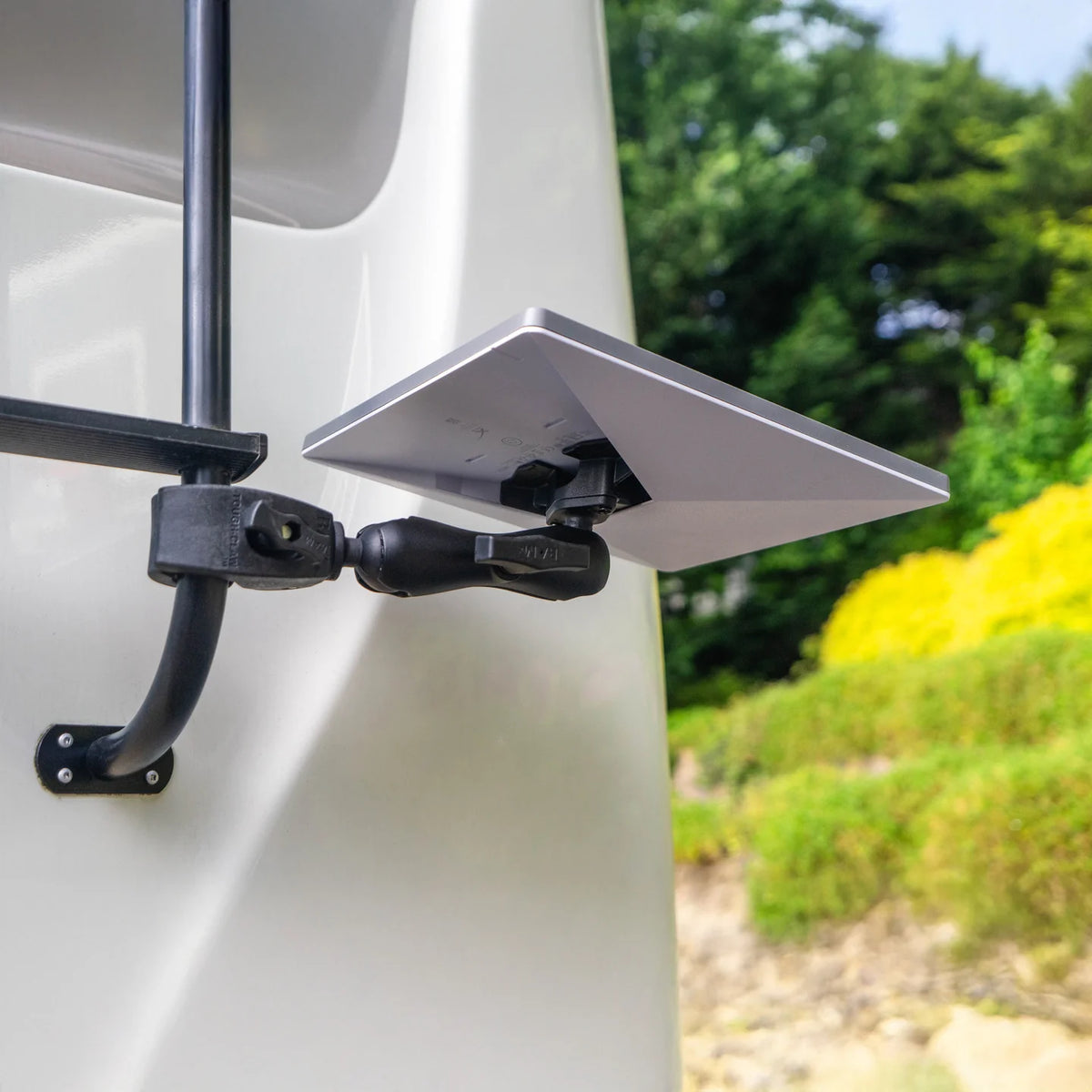

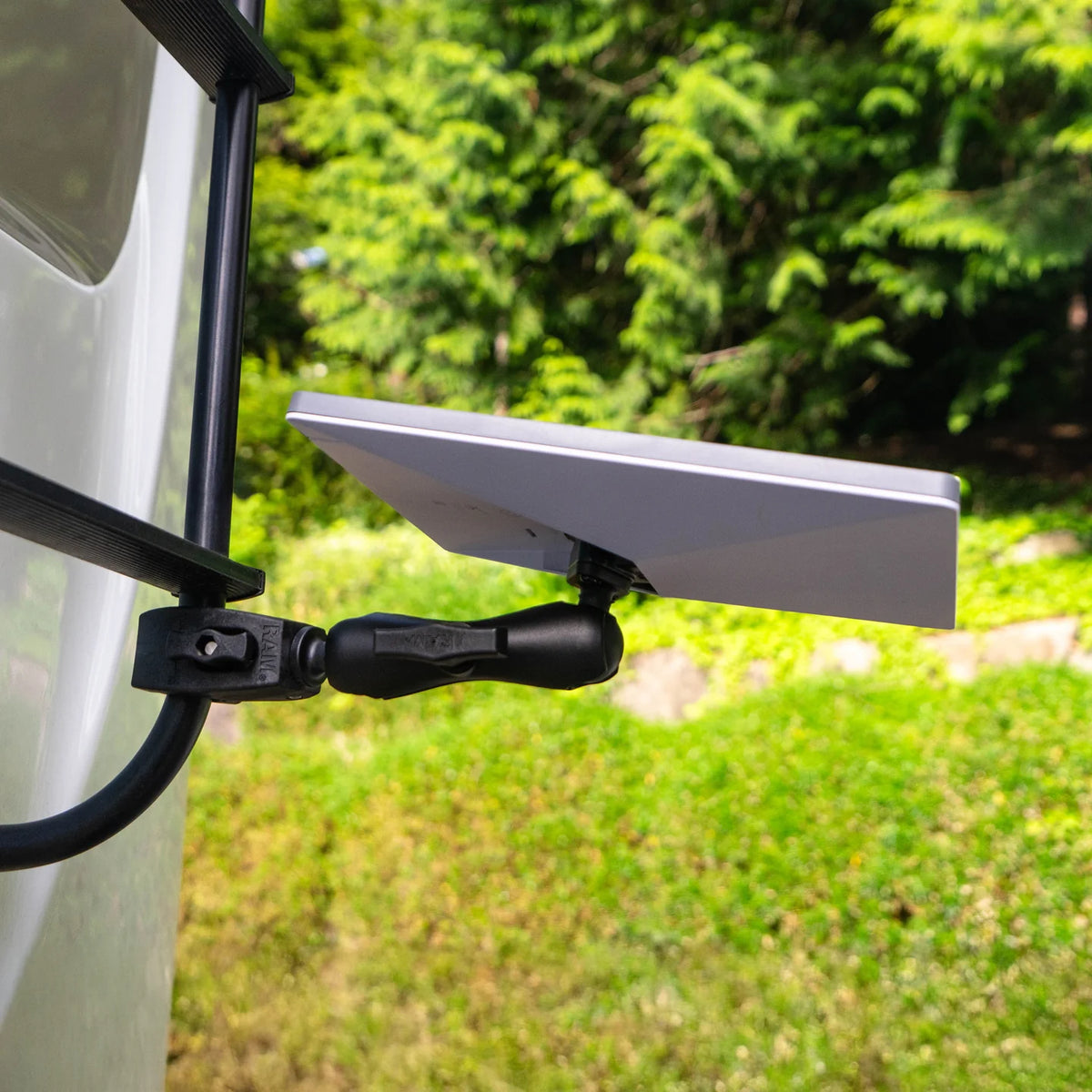

Fits both the 2024 and 2025 versions of the Starlink Mini. Suits roll bars, roof racks, boat rails, cage tubes and handrails in the 25mm to 41mm range. For thinner or thicker bars, pair the RAM-238-STA1U adapter with the small RAP-400U or large RAP-401U Tough-Claw instead.

Dimensions & Specifications

• Clamping range, rails/tubes: 25mm to 41mm (1" to 1.6")
• Clamping range, flat surfaces: 0 to 41mm (0" to 1.6")
• Arm overall length: 144.5mm (5.69")
• Arm socket-to-socket: 118.4mm (4.66")
• Ball size: C-size, 1.5" (38.1mm) rubber ball
• Material: high-strength composite claw with stainless steel hardware; powder-coated marine-grade aluminium arm and adapter
• Weight: 762g (1.68 lb)
• Weight capacity: 1.81kg (4 lb) standard use, 1.36kg (3 lb) heavy-duty use
• Fitment: Starlink Mini, 2024 and 2025 versions

What's Included

This is a complete mount kit made up of three RAM components, all of which we also sell individually:

• RAP-404U - medium Tough-Claw™ clamp base with 1.5" ball, C size
• RAM-201U - medium double socket arm, C size (1.5" ball)
• RAM-238-STA1U - Starlink Mini ball adapter, C size (1.5" ball)

Buying the kit works out cheaper than the three parts bought separately.

FAQs

Can I use this while driving?
No. This mount is designed for stationary use. Set the Mini up while you're parked or camped, not while moving.

Why C size and not B size?
The Starlink Mini is heavy enough that we (and RAM) don't recommend dropping down to a B-size ball.

Want a permanent fit instead?
The RAM-138-B-STA1U drill-down mount screws to a flat surface for a fixed installation.

How fast does it ship?
If it's shown in stock here, it ships from our Auckland warehouse, normally within one business day. If it's shown as out of stock, get in touch and we can normally get it in for you.

Video

Watch: installing and removing the RAM® Starlink Mini ball adapter
