RAP-365-138-STA1U - Triple Suction Mount for Starlink Mini - C Series (1.5" Ball)

RAP-365-138-STA1U – RAM® Twist-Lock™ Triple Suction Mount for Starlink Mini

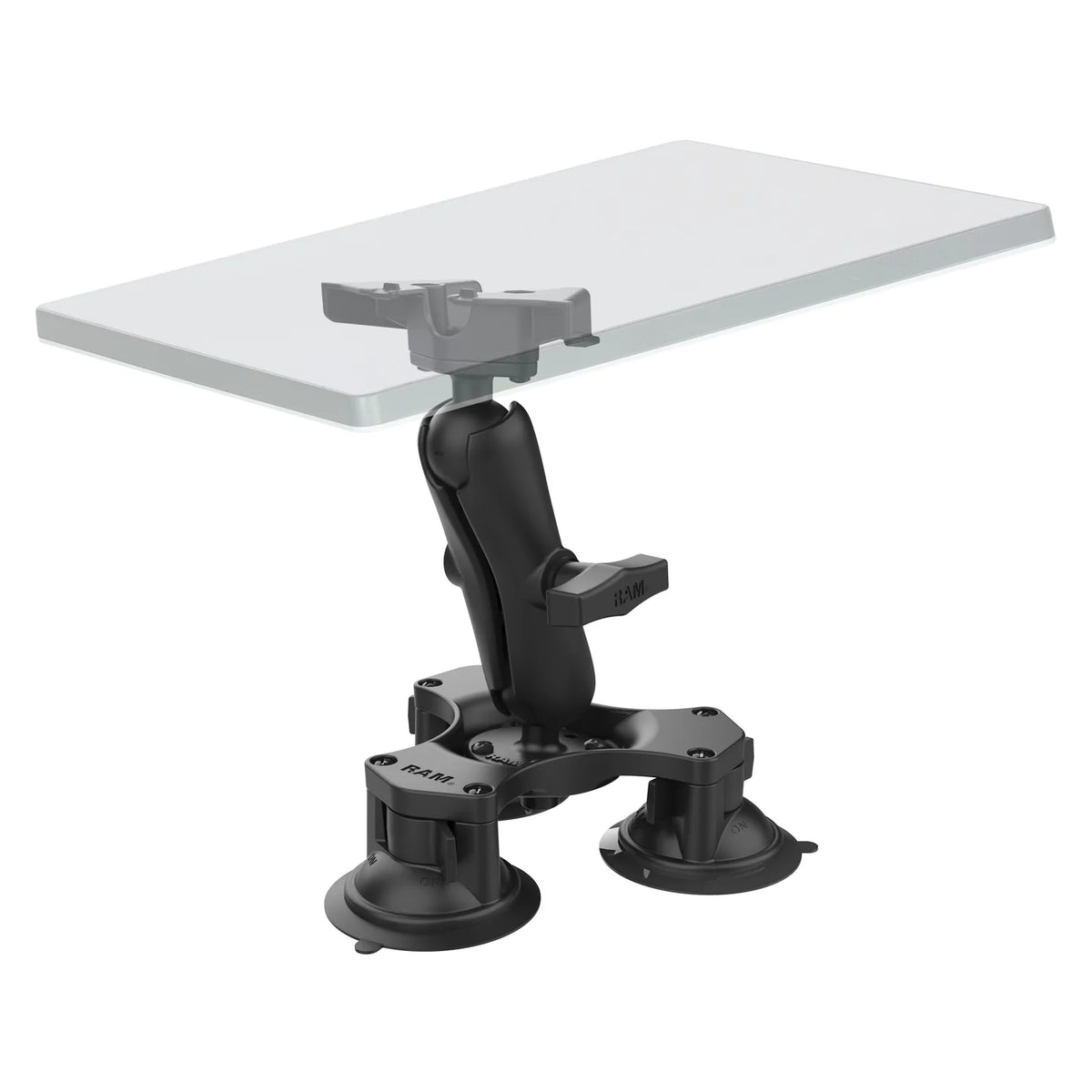

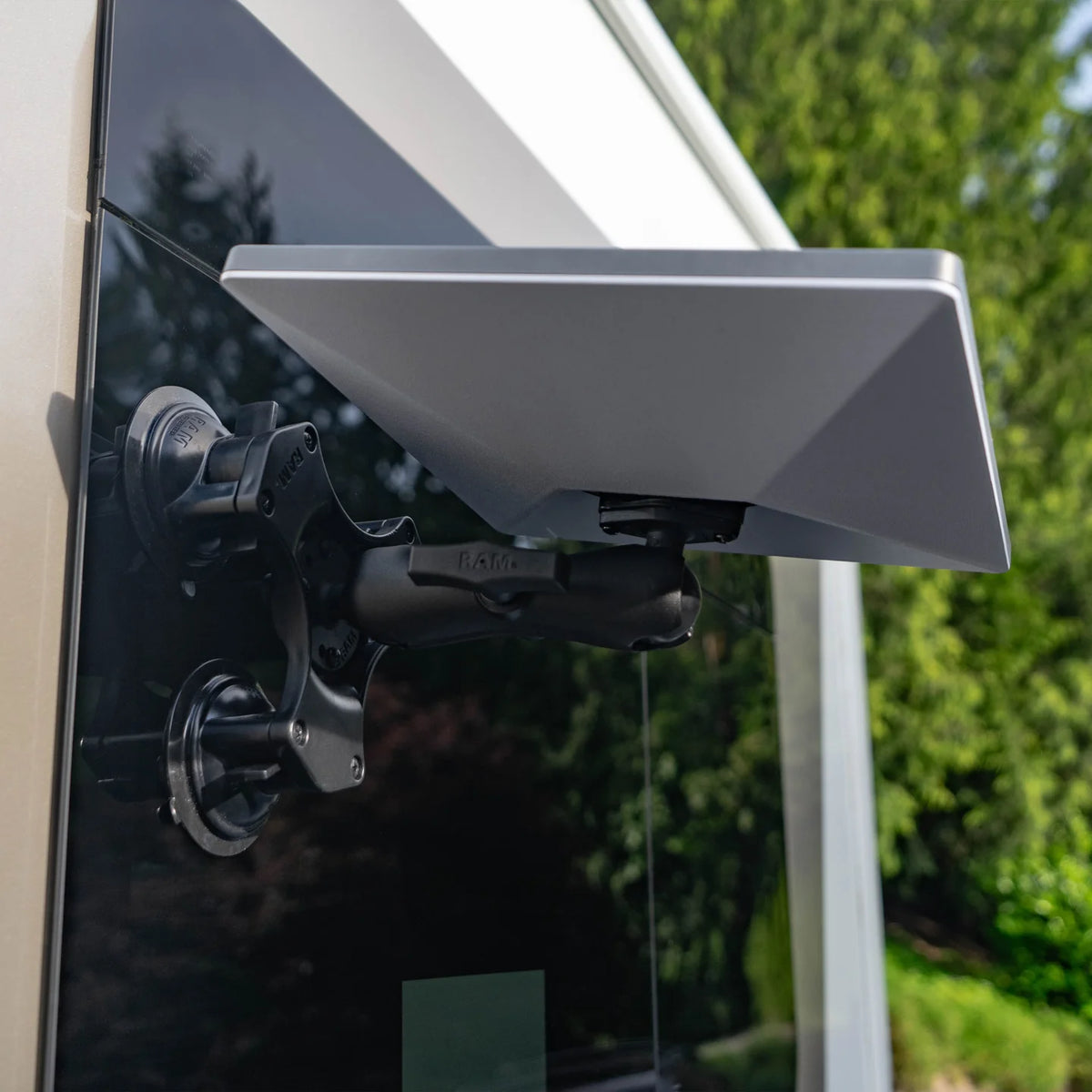

The RAP-365-138-STA1U is a complete, tool-free suction mount for the Starlink Mini. Three 84mm Twist-Lock™ suction cups lock onto glass or another smooth surface with a flick of each lever, a medium C-size double socket arm gives you the reach, and a custom-fit adapter bolts straight to the Mini so you can hold the dish at the 8 degree horizontal angle Starlink recommends.

Key Features

• Triple Twist-Lock™ suction base: three cups spread the load for a stronger hold than a single cup
• No tools, no drilling: fit it, reposition it or stow it in seconds
• Custom-fit Starlink Mini adapter: bolts to the dish's own mounting points, no drilling into the Mini
• C-size (1.5") ball system: specified for the weight of the Mini, with near-infinite angle adjustment
• Marine-grade aluminium and high-strength composite, RAM lifetime warranty

Works With

Fits both the 2024 and 2025 versions of the Starlink Mini. Suction cups need a smooth, non-porous surface such as glass, gelcoat or highly polished metal; textured or porous surfaces let air in and loosen the grip.

Dimensions & Specifications

• Suction cups: 3 x 84mm (3.3") Twist-Lock™ cups, 201.9mm (7.95") total width
• Arm overall length: 144.5mm (5.69")
• Arm socket-to-socket: 118.4mm (4.66")
• Ball size: C-size, 1.5" (38.1mm) rubber ball
• Material: high-strength composite suction base; powder-coated marine-grade aluminium ball base, arm and adapter
• Weight: 880g (1.94 lb)
• Weight capacity: 1.81kg (4 lb) standard use, 1.36kg (3 lb) heavy-duty use
• Fitment: Starlink Mini, 2024 and 2025 versions

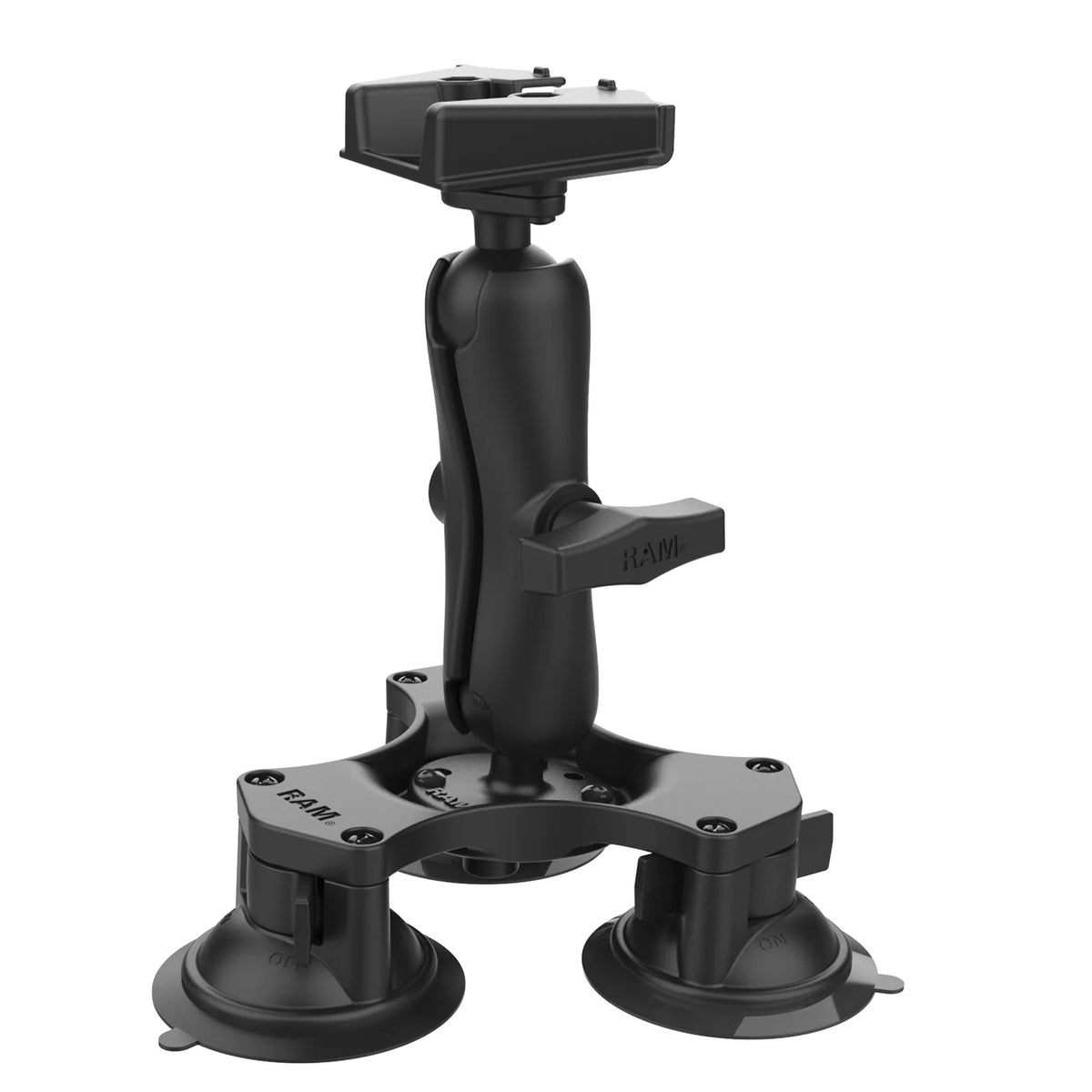

What's Included

This is a complete mount kit made up of three RAM components, all of which we also sell individually:

• RAP-365-224-1U - Twist-Lock™ triple suction cup base with 1.5" ball, C size
• RAM-201U - medium double socket arm, C size (1.5" ball)

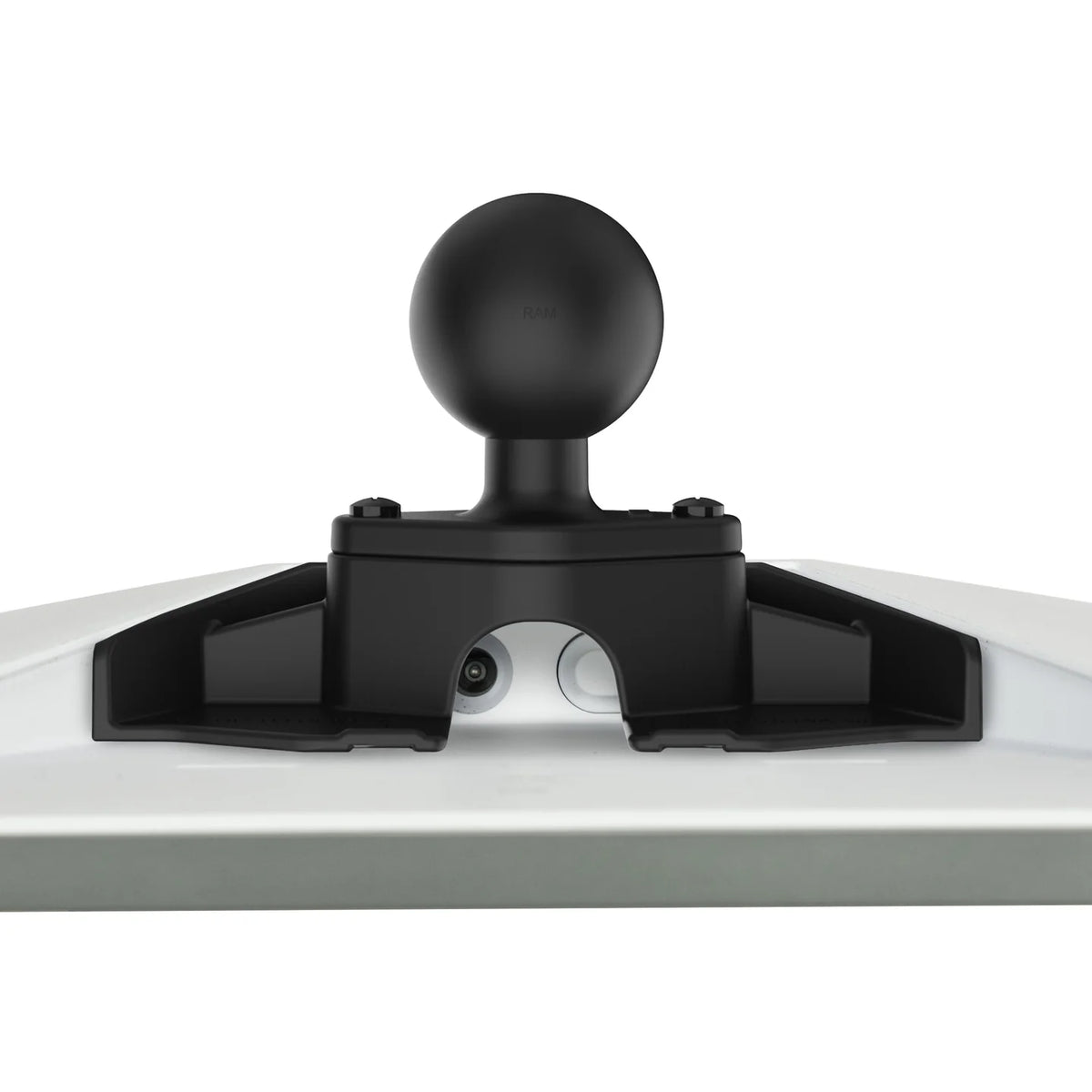

• RAM-238-STA1U - Starlink Mini ball adapter, C size (1.5" ball)

Buying the kit works out cheaper than the three parts bought separately.

FAQs

Can I use this while driving?
No. This mount is designed for stationary use. Set the Mini up while you're parked or camped, not while moving.

What surfaces will it stick to?
Suction works by holding a vacuum, so it needs a very smooth surface. Windows and polished metal work best; check the cups before each use and re-seat them if the surface has been wet or dusty.

Want a permanent fit instead?
The RAM-138-B-STA1U drill-down mount screws to a flat surface for a fixed installation.

How fast does it ship?
If it's shown in stock here, it ships from our Auckland warehouse, normally within one business day. If it's shown as out of stock, get in touch and we can normally get it in for you.

Video

Watch: installing and removing the RAM® Starlink Mini ball adapter
