RAM-103-B-238U - Double Socket Arm with Diamond Base - C Series (1.5" Ball) - Short

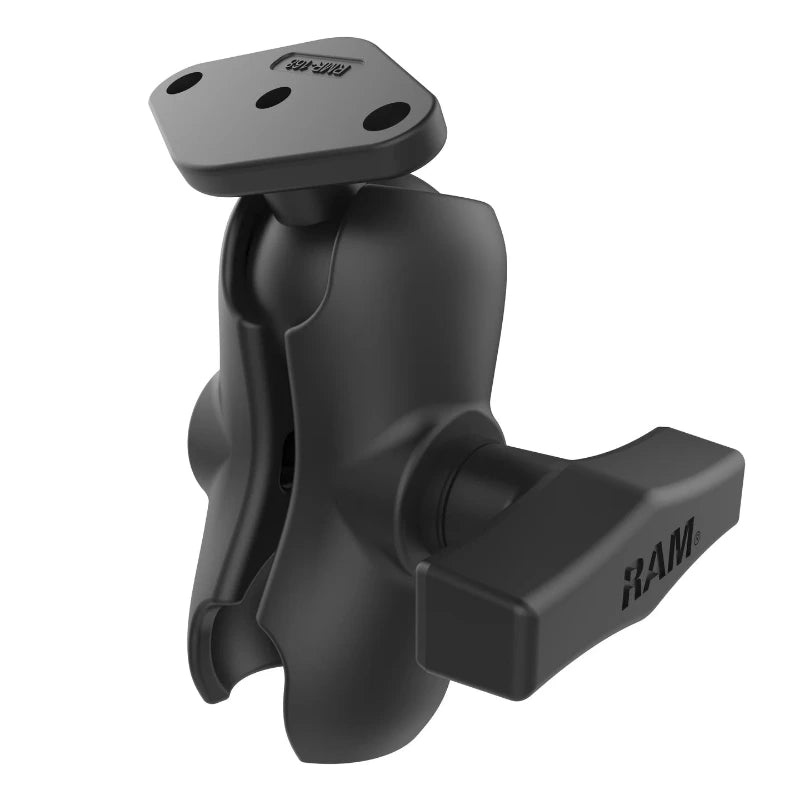

RAM-103-B-238U RAM® Double Socket Arm with Diamond Base – C Size Short

The RAM-103-B-238U pairs a diamond base plate with the shortest C Series double socket arm, leaving one 1.5" socket open to take any RAM® C Size ball base or device cradle. It is the most rigid of the three lengths, and the one to pick when you want the device sitting tight to the mounting point.

Key Features

• Diamond base plate with the industry-standard 2-hole AMPS pattern at 48.6mm (1.912") centres
• Short C Series arm: 90.4mm (3.56") end to end, 63.5mm (2.5") socket to socket
• One open 1.5" socket takes any RAM® C Size ball base, cradle or adapter
• Shortest C Series arm, so the least flex and the least overhang
• Powder-coated marine-grade aluminium, backed by RAM's lifetime warranty

Works With

The open socket accepts any RAM® component with a 1.5" C Size ball. On the plate side, the 2-hole AMPS pattern connects to a wide range of RAM® and third-party holders, including the RAM-HOL-ZE30U printer holder for the Zebra ZQ521. For more reach, the same kit comes as a medium arm (RAM-103-238U) or a long arm (RAM-103-D-238U).

Dimensions & Specifications

• Arm overall length: 90.4mm (3.56")
• Socket-to-socket length: 63.5mm (2.5")
• Diamond plate: 61.7 x 33.3mm (2.43 x 1.31")
• Hole pattern: 2-hole AMPS, 48.6mm (1.912") centres
• Ball size: 38.1mm (1.5") C Size rubber ball
• Material: powder-coated marine-grade aluminium
• Weight: 304g (0.67 lb)
• Load rating: 1.81kg (4 lb) standard use, 1.36kg (3 lb) heavy-duty use

What's Included

• 1 x RAM-201U-B short C Series double socket arm
• 1 x RAM-238U diamond base with 1.5" ball

FAQs

Does it include screws to bolt the plate down?
No. These mount to too many different surfaces for us to guess the right fixings. The two AMPS holes usually take #8, #10, M4 or M5 screws. If you're bolting it to a RAM® holder, the holder comes with its own hardware.

What goes in the open socket?
Any RAM® C Size component with a 1.5" ball: a drill-down base, a suction cup base, a rail clamp or a device cradle.

Which length should I choose?
This short version is the most stable and keeps the device close in. Step up to the medium or long only for the reach you actually need.

How fast does this ship?
If this item shows as being in stock then it will usually ship from our Auckland warehouse in 1 business day. If it says to enquire then please get in touch as we may be able to get this back in for you.
