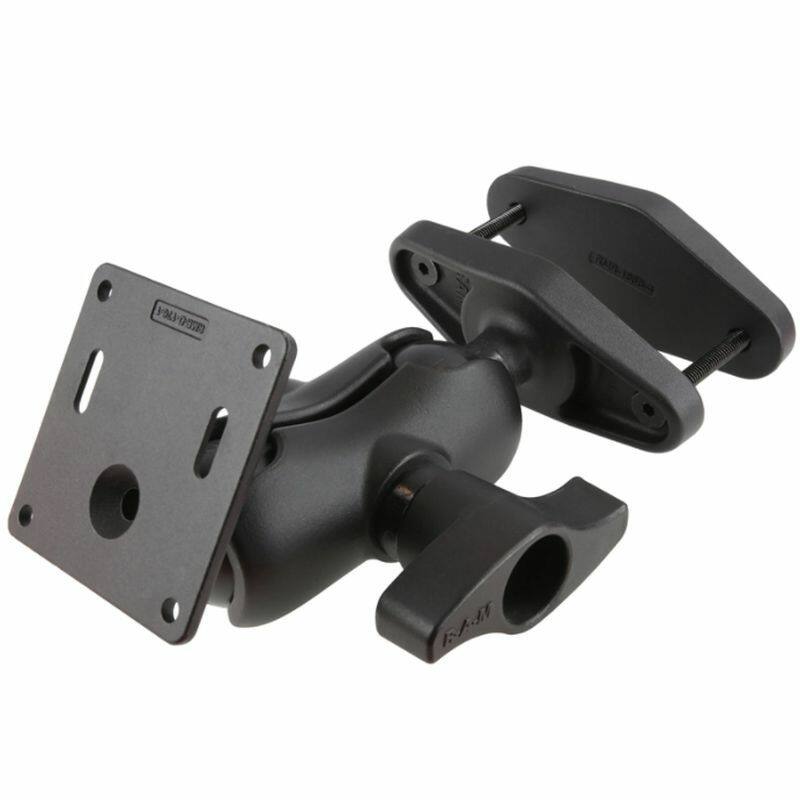

RAM-D-2461U-C-247-4 RAM® 4" Square Post Clamp Mount with 75x75mm VESA Plate
FEATURES
* D Size ball with 75 x 75mm VESA plate connects to monitors and rugged tablet PC's with the matching hole pattern
* Includes 102mm clamping base for posts and a short length D size RAM® double socket arm
* RAM ball and socket technology allows for near-infinite adjustability
* Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
* Backed by a lifetime warranty
The RAM-D-2461U-C-247-4 is an ideal forklift mount which consists of a short double socket arm, a square plate with a 75 x 75mm VESA hole pattern and 102mm clamp base for square post mounting on forklifts.
The clamp base will wrap around a maximum width of 102mm and is tightened by screwing the two plates together with the included nuts and bolts. RAM® Mounts ball & socket technology dampens shock and vibration, as well as allows for almost infinite adjustment for perfect viewing angles. This is designed for heavy duty monitor mounting for forklifts.
The VESA plate uses a 2.25" (D series) diameter rubber ball connected to a 92mm square plate with a 75mm X 75mm VESA hole pattern. The rubber ball is positioned 22.3mm (0.88") from the centre of one edge.
The RAM-D-2461U is compatible with the following electronic devices:
MobileDemand XTablet T8600
Glacier Computer Ridgeline
Routeware DMS 5000
Honeywell RT10
The cradles for these electronic devices are sold strictly through the manufacturer.
Specs & Features
Square Clamp Maximum Width
101.6 mm (4")
Arm Dimensions:
Overall Length:
128.6mm (5.0625")
Socket-To-Socket Length:
87.0mm (3.1875")
Square Plate Hole Pattern
75 x 75mm VESA
Material:
Powder Coated Marine Grade Aluminium
Ball Size:
2.25" (57mm) D series Rubber Ball Size
WEIGHT
1.7kg (3.75 lbs)
Weight Capacity
Standard Use:
2.72kg (6 lbs)
Heavy-Duty Use:
2.26kg (5 lbs)
HARDWARE INCLUDED
(2) 5/16"-18 x 3" Machine Screws
(2) 5/16"-18 Nylock Nuts
Components:

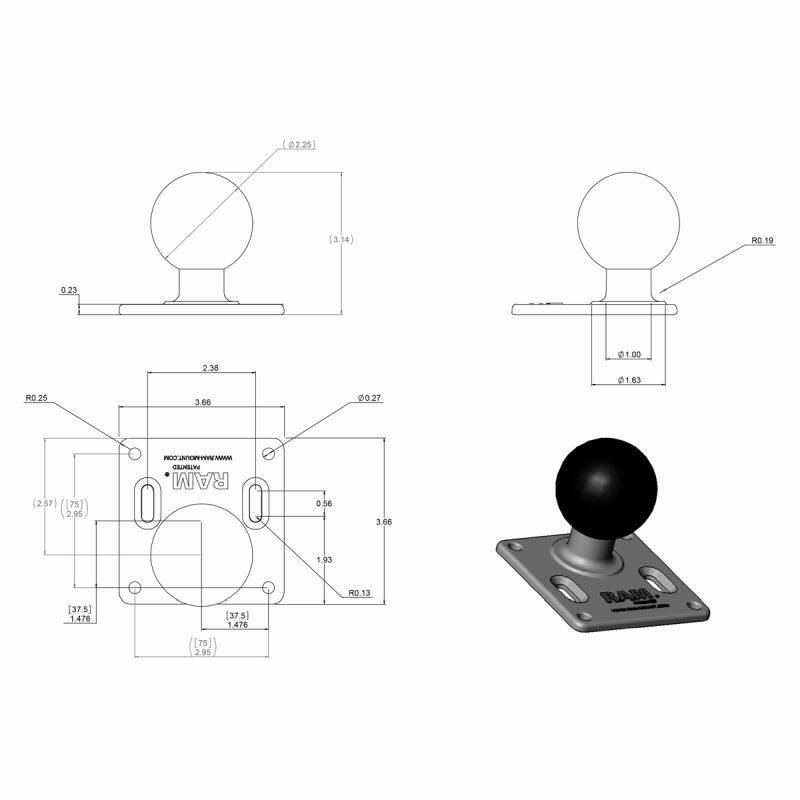

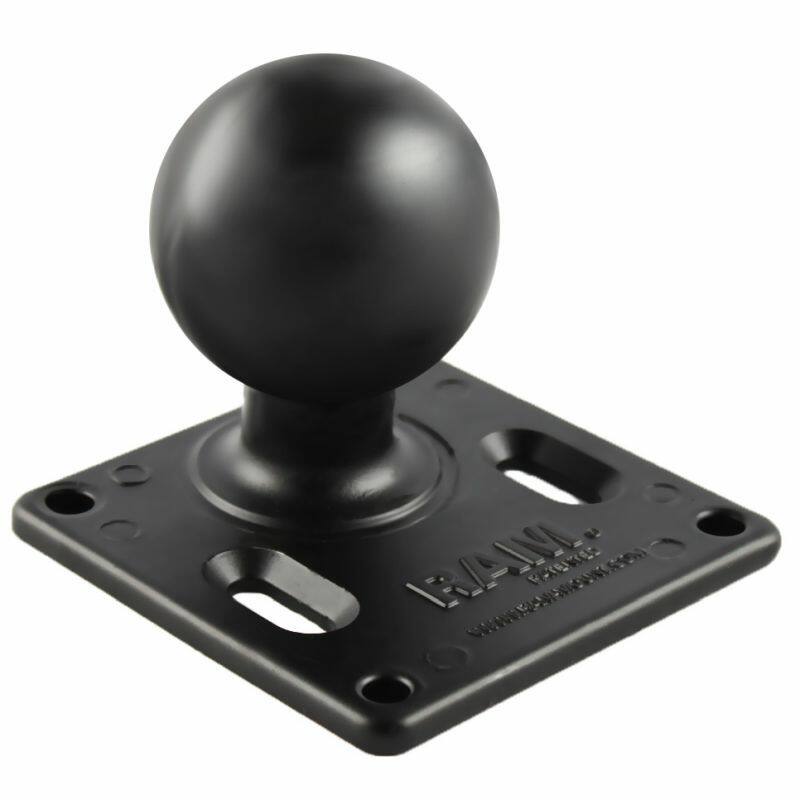

RAM-D-2461U 75mm X 75mm VESA 92mm Plate with D Size 2.25"/57mm Ball

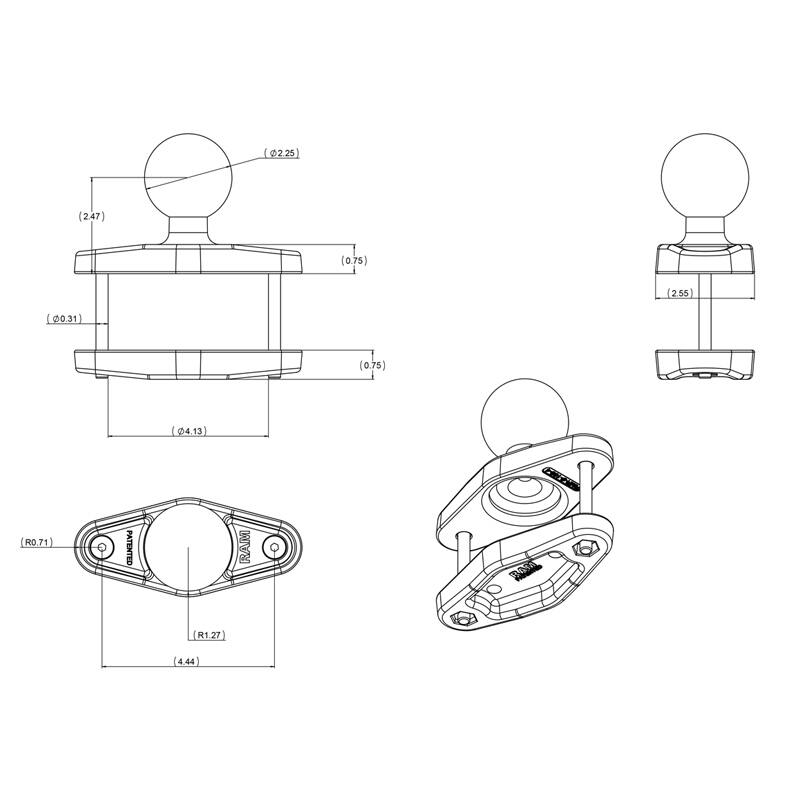

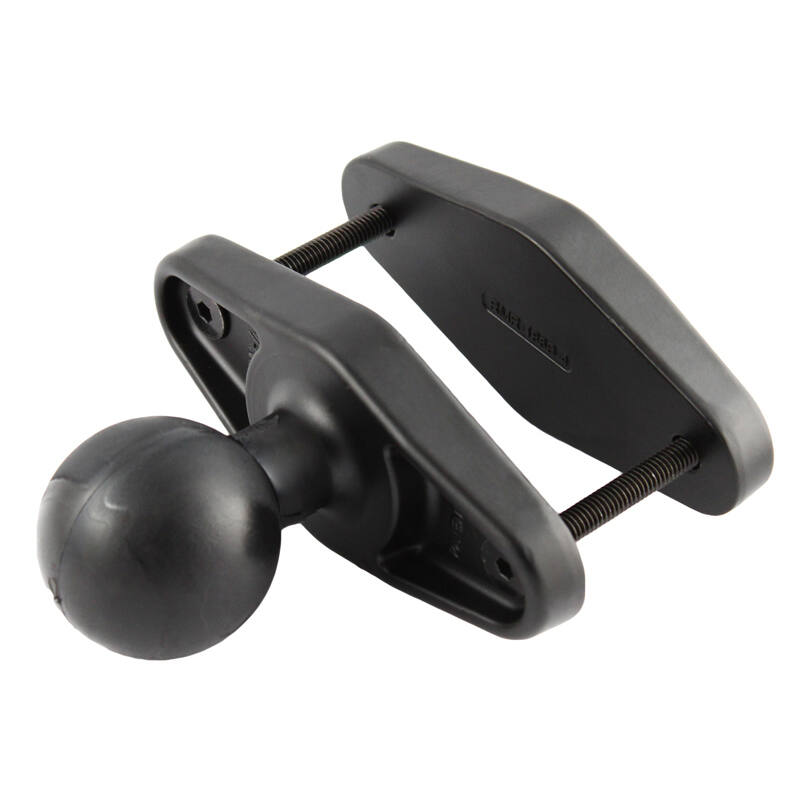

RAM-D-247U-4-IN1 Square Post Clamp Base 100mm Wide - Reinforced

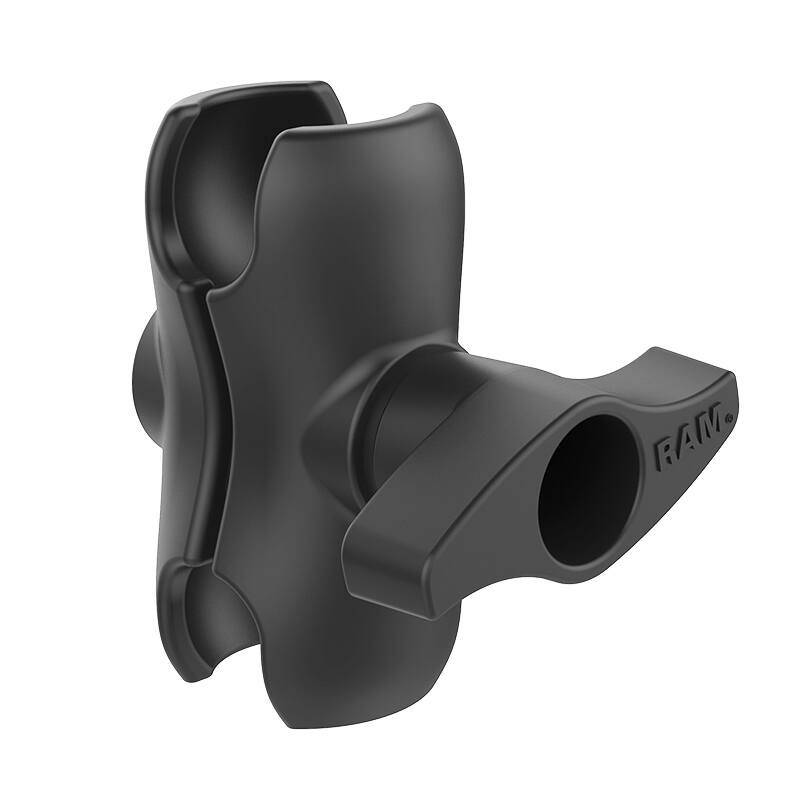

RAM-D-201U-C Short Double Socket Arm D Size 2.25" / 57mm
